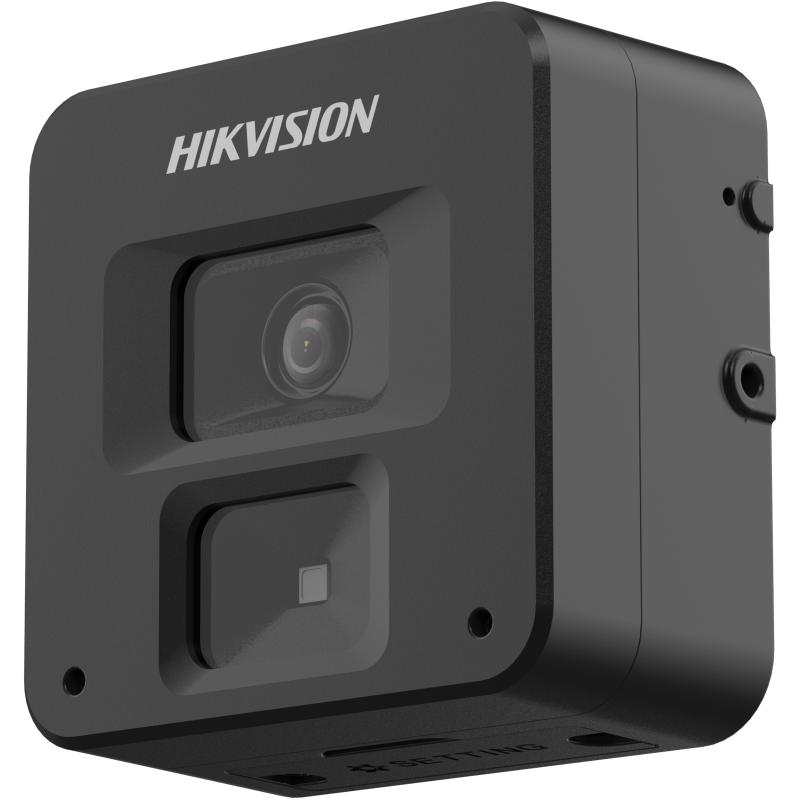

5MP Network Macro Camera

High quality imaging with 5 MP resolution
Clear imaging against strong back light due to 120 dB true WDR technology
Supports white light and 24/7 colorful imaging
Easy installation with small lens and recommended within 0.1 m to 0.5 m of object
Built-in microphone for real-time audio security
Water and dust resistant (IP67)

Lens
Focal Length & FOV
4 mm, horizontal FOV 79.6°, vertical FOV 63.8°, diagonal FOV 93.4°
Lens Type
Fixed focal lens, 4 mm,VCM Lens
Iris Type
Fixed
Aperture
F2.0
Focus
Manual

Video
Main Stream
50 Hz: up to 25 fps (2560 × 1920, 2560 × 1440, 1920 × 1080)
60 Hz: up to 24 fps (2560 × 1920, 2560 × 1440, 1920 × 1080)
Sub-Stream
50 Hz: up to 25 fps (1280 × 720, 704 × 576, 640 × 480)
60 Hz: up to 24 fps (1280 × 720, 704 × 480, 640 × 480)
Video Compression
Main stream: H265+/H264+/H.265/H.264,
Sub-stream: MJPEG/H.265/H.264
H.264 Type
Baseline Profile,Main Profile,High Profile
H.265 Type
Main Profile
Bit Rate Control
CBR,VBR
Scalable Video Coding (SVC)
H.264 and H.265 encoding
Region of Interest (ROI)
1 fixed region for main stream
Video Bit Rate
32 Kbps to 8 Mbps

Audio
Audio Type
Mono sound
Audio Compression
G.711/G.722.1/G.726/MP2L2/PCM/AAC-LC
Audio Bit Rate
64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 48 Kbps (PCM)/16 to 64 Kbps (AAC-LC)
Audio Sampling Rate
16 kHz/32 kHz
Environment Noise Filtering
Yes

Network
Protocols
IGMP, UPnP, RTSP, NTP, SNMP, RTP, DHCP, DDNS, FTP, SSL/TLS, IPv4, IPv6, DNS, ICMP, HTTP, HTTPS, 802.1X, QoS, TCP/IP, UDP
Simultaneous Live View
Up to 8 channels
API
ONVIF,ISAPI,SDK,ISUP
User/Host
Up to 32 users
3 user levels: administrator, operator, and user
Network Storage
NAS (NFS, SMB/CIFS),NVR
Client
iVMS-4200,Hik-Connect,HCP
Security
Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP OVER HTTPS, Control Timeout Settings, Security Audit Log, TLS 1.2, TLS 1.3
Web Browser
Plug-in required live view: IE 10, IE 11,
Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+, Safari 11+,
Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+

Image Settings
saturation,brightness,contrast,sharpness,adjustable by client software or web browser
Day/Night Switch
Day,Night,Auto,Schedule
Wide Dynamic Range (WDR)
120 dB
Image Enhancement
BLC,HLC,3D DNR,Defog
Privacy Mask
4 rectangular privacy masks

Interface
Ethernet Interface
1 RJ45 10 M/100 M self-adaptive Ethernet port
On-Board Storage
Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
Built-in Microphone
1 built-in microphone
Reset Key
Yes

Event
Basic Event
Motion detection,video tampering alarm,network disconnected,IP address conflict,illegal login,HDD full,HDD error
Linkage
Upload to FTP/NAS/memory card,notify surveillance center,send email,trigger recording,trigger capture

General
Power
12 VDC ± 25%, 0.25 A, max. 3 W,Ø5.5 mm coaxial power plug,
PoE: IEEE 802.3af, Class 3, 36 V to 57 V, 0.09 A to 0.06 A, max. 3.3 W
Material
Main body: Aluminum Alloy
Dimension
60.4 mm × 58.9 mm × 30 mm (2.378″ × 2.319″ × 1.181″)
Package Dimension
220 mm × 150 mm × 153 mm (8.66″ × 5.905″ × 6.02″)
Weight
Approx. 260 g (0.573 lb.)
With Package Weight
Approx. 485 g (1.07 lb.),
T1: Approx. 565 g (1.25 lb.)
Storage Conditions
-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Startup and Operating Conditions
-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Language
18 languages: Traditional Chinese, English, Bulgarian, Hungarian, German, Czech, Slovak, French, Portuguese, Spanish, Russian, Japanese, Turkish, Korean, Thai, Estonian, Vietnamese, Lithuanian
General Function
Heartbeat,mirror,password protection,one-key reset

Approval
EMC
CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021
Safety
CB: IEC 62368-1: 2014,
CE-LVD: EN 62368-1: 2014/A11: 2017
Environment
CE-RoHS: 2011/65/EU,
WEEE: 2012/19/EU,
Reach: Regulation (EC) No 1907/2006
Protection
IP67: IEC 60529-2013
