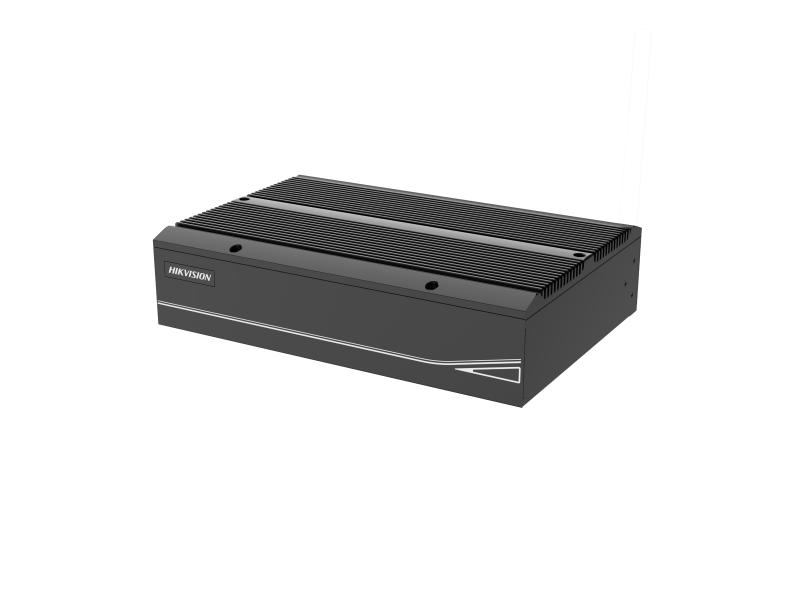

Available models: DS-TPE304-S(4T+128G SSD)(P)

• Terminal
• CPUJ6412, Elkhart Lake Platform Processor, 2 GHz
• Memory4 GB
• Storage3.5″ 4T Surveillance-Level HDD+ 128GB SSD

• Interface
• Indicator4 Indicators (1 x System Indicator, 1 x Hard Disk Status Indicator, 1 x Power Indicator, 1 x Alarm Indicator)
• Audio1 x Audio Input (MIC IN)； 1 x Audio Output (AUDIO OUT)
• Video Output1 x HDMI, 1 x VGA
• Alarm Input2 x Alarm Input (ALARM IN)
• Alarm Output2 x Alarm Output (ALARM OUT)
• RS-2322 x RS-232 Interface
• RS-4851 x RS-485 Interface
• USB2 x USB 2.0 Interface, 2 x USB 3.0 Interface
• Network Interface8 x 10 Mpbs/100 Mpbs Self-Adaptive Interface, supporting connecting with switch; 1 x Independent 100 Mpbs/1000 Mpbs Self-Adaptive Interface, supporting network isolation

• General
• MaterialBlack Aluminum Material
• Power Supply12V DC /5A
• Power ConsumptionMax.: 50 W Average: 25 W
• Working Temperature and Humidity-10 °C to 50 °C (14 °F to 122 °F); 10 % to 95% (No Condensation)
• Storage Temperature and Humidity-20 °C to 70 °C (-4 °F to 158 °F); 10 % to 95% (No Condensation)
• Dimensions245 × 170 × 65 mm (9.65 × 6.69 × 2.56 inch)
• Dimensions (with Package)450 × 240 × 105 mm (17.7 × 9.45 × 4.1 inch)
• Weight2 kg (4.4 lb.)
• Weight (with Package)2.5 kg (5.5 lb.)
