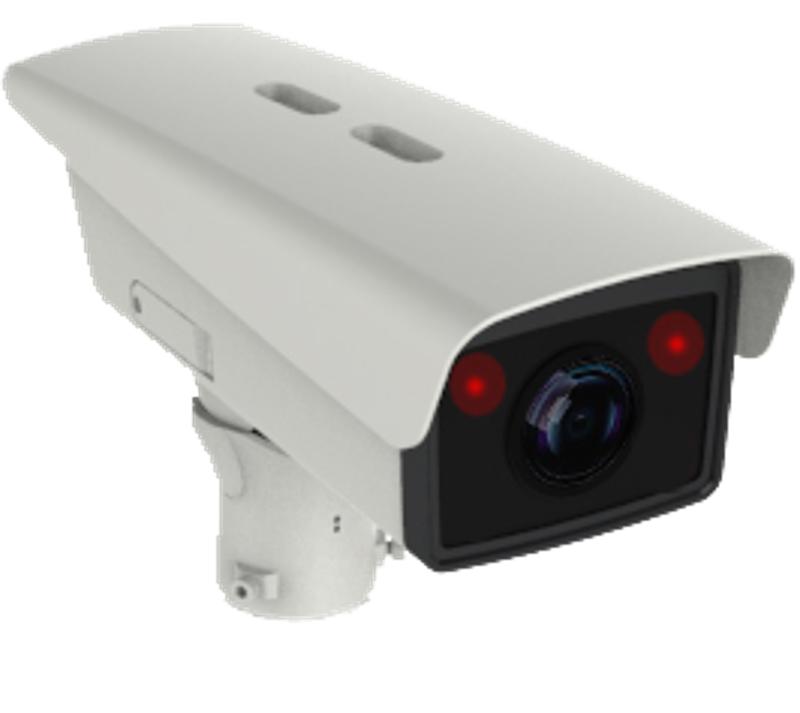

HIKVISION DS-TCG405-E

4MP ANPR Intelligent Entrance Video Unit

• 1/3″ Progressive Scan CMOS
• Up to 2688 × 1520 resolution with real-time video
• 2x pics high-performance LEDs (integrated white light and IR)
• 3.1 to 6mm motorized vari-focal lens
• Support relay output to control vehicle barrier
• Support loop triggering or radar triggering
• Support multi-frame LPR
• Support dirty license plate recognition
• Support quick pass of multiple vehicles
• Support vehicle type, vehicle color and vehicle brand recognition
• Integrated shield, lights, TF Card (up to 512 G)
• Up to 100,000 allowlists and blocklists
• Offline control
• PoE (802.3af)
• One-touch focus
• Manual capture and ANPR

• Camera
• Sensor Type1/3″ Progressive Scan CMOS
• Max. Resolution2688 × 1520
• Min. IlluminationColor: 0.022Lux@(F1.9, AGC ON)

  B/W: 0.011Lux@(F1.9, AGC ON)

• Shutter1/30 s to 1/100,000 s
• Day/Night SwitchSupported
• IR Cut FilterIR cut filter

  Blue glass module to reduce ghost phenomenon

• Lens
• Lens Type3.1 to 6 mm
• Aperture3.1 to 6 mm：F1.9
• Focal Length & FoV

  3.1 to 6 mm, horizontal FoV: 105.5° to 51.4°, vertical FoV: 55.9° to 28.9°, diagonal FoV: 126.9° to 59.2°

• FocusAuto,Vari-focal lens, motor-driven lens

• Supplement Light
• Supplement Light TypeIR Light, Warm White Light
• Supplement Light RangeVideo:

  3.1 mm to 6 mm: 10 m

  Vehicle License Plate:

  3.1 mm to 6 mm: 5 m

• IR WavelengthWarm White Light 3000 K, IR Light 850 nm

• Image
• WDR140 dB
• Main Stream50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720)

  60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)

• Sub-Stream50 Hz: 25 fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480)

  60 Hz: 30 fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)

• Image SettingsSaturation: 0 to 100

  Brightness: 0 to 100

  Contrast: 0 to 100

  Gain: 0 to 100

  3D DNR: Off, Normal, and Expert modes are selectable.

  White balance: White Balance 1 and White Balance 2 are selectable.

• Image Parameters SwitchYes
• WDR SwitchOn, Time, Brightness
• Frame Rate25 fps (P)/30 fps (N)

• Video
• ROI8 regions respectively for main stream and sub-stream, 6 levels for each region.
• Video CompressionMain stream: H.265/H.264/MJPEG,

  Sub-stream: H.265/H.264/MJPEG,

• H.264 TypeLow profile

  Medium profile

  High Profile

• Video Bit Rate32 Kbps to 16 Mbps
• Bit Rate TypeConstant, Variable
• Scalable Video Coding (SVC)H.265 and H.264 encoding

• Capture Mode
• Trigger TypeVideo Detection, I/O Coil, Radar Mixed Traffic
• Picture TypeScene Picture, Scene Picture + Close-up Picture
• Scene ModeEntrance & Exit Toll Gate, Underground Parking Entrance & Exit
• Capture TypeStrobe Light Mode

• Capture Parameters
• Image FormatJPEG
• Capture Resolution2688 × 1520
• License Plate RecognitionForward, Backward, Bidirection
• LED ControlSupports automatic light control/time control of LEDs
• Smart RecognitionANPR, Motor Vehicle Feature, Vehicle Color Recognition, Enable Vehicle Manufacturer Recognition
• Capture Picture OverlayLocation, Capture Time, Plate Number, Capture No., Vehicle Color Vehicle Type

• Entrance and Exit
• Barrier Gate Control ModeBy Camera/Platform/Mixed
• Keep Boom Pole Open for Following VehicleEnable/Disable
• Lock Barrier Gate for Large-Sized VehicleYes
• Relay Output2-ch relay output, supporting opening and closing of barrier gates
• Barrier Gate StatusNone, Barrier Gate Close In Place, Barrier Gate Open In Place, Remote Control Open In Place
• Allowlist and BlocklistUp to 100,000 allowlist and blocklist totally

  Note: Only when the TF card is available, can the function take effect.

• Network
• Network StorageNAS (NFS, SMB/CIFS), auto network replenishment (ANR) together with high-end Hikvision memory card, memory card encryption and health detection are supported.
• ProtocolTCP/IP, ICMP, HTTP, HTTPS, FTP Upload Picture, SRTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, SNMP, IGMP, QoS, IPv6, UDP, SSL/TLS, WebSocket
• APIOpen Network Video Interface (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK, ISUP, Otap, Guarding Vision Platform
• ClientHik-Central,SDKdemo,PMS
• Web BrowserPlug-in required live view: IE10+ Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Safari 11+ Local service: Chrome 41.0+, Firefox 30.0+
• SecurityPassword protection, complicated password, HTTPS encryption, watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP OVER HTTPS, Control Timeout Settings, Security Audit Log, TLS 1.2

• Interface
• Audio1 input (line in), 1 output (line out)
• Communication Mode1 RJ45 10M/100M Ethernet port
• Alarm Input3-ch triggered inputs
• Alarm Output1-ch alarm output
• WiegandNot support
• RS-2321-ch RS-232 serial port
• RS-4851-ch RS-485 serial port
• Network Interface1 RJ45 10M/100M self-adaptive Ethernet port
• Memory Card Slot1 TF card slot, up to 1 TB

• Smart Function
• LPR AccuracyCapture rate > 98%

  Vehicle moving direction recognition accuracy > 98.5%

  LPR accuracy > 98%

  Mistaken capture rate < 2%

  European:

  LPR accuracy > 98%

  Country/Region recognition accuracy > 95%

• Vehicle Type RecognitionCar/Van/Bus/Truck/Light Truck/SUV_MPV/Pickup/Pedestrian/Motorcycle/Tricycle
• Vehicle ColorRed, Yellow (including orange, golden), Green, Cyan, Blue, Purple, Pink, Brown, White, Gray (including silver), Black
• Vehicle Brand84 manufacturers: Hyundai, Toyota, KIA, Honda, Volkswagen, Benz, Nissan, Ford, Isuzu, BMW, Chevrolet, Mitsubishi, Renault, Opel, Suzuki, Skoda, Daewoo, Audi, Mazda, GAC HINO, Peugeot, SsangYong, Citroen, Fiat, Scania, MAN, Volvo, Lexus, Seat, Land Rover, Daihatsu, Dongwo, Subaru, Iveco, MINI, JEEP, Porsche, Chery, Dodge, Chrysler, Acura, Alfa Romeo, Great Wall, Infiniti, Smart, Saic Maxus, JAC, Jaguar, GMC, Lincoln, JMC, SAAB, FAW, Yutong, Guangzhou Yunbao, Joylong, Geely, Cadillac, JBC, An‘kai, Haima, Foton, King Long, Dongfeng, Geely-Emgrand, Perodua, UD, BYD, Renault Samsung, Proton, HICOM, Malaysia_Unknown 1, Hyundai-Rohens, SsangYong-Old Version, Equus-Old Version, CNHTC, Rolls-Royce, Beiben Truck, Haval, Hino, Kia-Borrego, Chang‘an, Alfa, FORO
• ANPR Supported Country/RegionMiddle East:

  The United Arab Emirates (Abu Dhabi, Ajman, Dubai, Fujairah, Ras Al Khaimah, Sharjah and Umm Al Quwain), Qatar, Iraq, Egypt, Jordan, Kuwait, Saudi Arabia, Pakistan, Oman, Lebanon, Bahrain

  Africa:

  Nigeria, Kenya, Ivory Coast , South Africa, Tanzania, Mauritius, Morocco, Tunisia, Sierra Leone, Zambia, Ghana, Zimbabwe, Uganda, Angola, Ethiopia, Senegal, Algeria

  Asia-Pacific:

  Australia, New Zealand, Indonesia, Malaysia, Singapore, South Korea, Thailand, Vietnam, the Philippines, Taiwan, Myanmar, India, Mongolia, Cambodia, Laos, Bangladesh, Nepal, Sri Lanka

  America:

  Canada, Argentina, Chile, Paraguay, Uruguay, El Salvador, Bolivia, Colombia, Brazil, Ecuador, Peru, Mexico, Panama, Costa Rica, Trinidad and Tobago, the Dominican Republic, Guatemala

  Europe:

  Turkey, Croatia, Slovakia, Czech Republic, Bulgaria, the Republic of North Macedonia, Hungary, Greece, Poland, France, Netherlands, Switzerland, Spain, the UK, Ireland, Germany, Italy, Austria, Israel, Palestinian, Belgium, Luxembourg, Albania, Serbia, Romania, Montenegro, Denmark, Finland, Sweden, Slovenia, Portugal, Malta, Cyprus, Iceland, Liechtenstein, Bosnia and Herzegovina

  Russian-Speaking Regions:

  Azerbaijan, Belarus, Kazakhstan, Lithuania, Georgia, Estonia, Latvia, Russia, Ukraine, Moldova, Uzbekistan, Kyrgyzstan, Armenia, Turkmenistan, Tajikistan

• Approval
• EMCCE-EMC (EN 55032: 2015, EN 61000-3-2: 2019, EEN 61000-3-3: 2013 + A1: 2019, EN 50130-4: 2011 + A1: 2014);

  KC (KN 32: 2015, KN 35: 2015)

• SecurityCB (IEC 62368-1: 2014 + A11);

  CE-LVD (EN 62368-1: 2014/A11: 2017);

  BIS (IS 13252 (Part 1): 2010/IEC 60950-1: 2005);

• EnvironmentCE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
• ProtectionIK10 (IEC 62262: 2002), IP67 (IEC 60529-2013)

• General
• Working Temperature & Humidity-25°C to 70°C (-13°F to 158°F)

  90% or less (non-condensing)

• Power Supply12 to 24 VDC/PoE (802.3at, 44 V to 57 V), 300 mA to 230 mA
• Working Consumption10 W Max.
• Dimensions415 mm × 145 mm × 145 mm (16.34 × 5.71 × 5.71 inch)
• Weight3.25 kg (7.17 lb.)
• Weight (with Package)4.3 kg (9.48 lb.)
• Dimensions (with Package)480 × 435 × 205 mm (18.90× 17.13 × 8.07 inch)
• Storage ConditionsTemperature: -20 °C to 70 °C (- 4°F to 158 °F)

  Humidity: 95% (non-condensing)

• Startup and Operating ConditionsTemperature: -30 °C to 70 °C (-22 °F to 158 °F)

  Humidity: 95% (non-condensing)

• Language33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
