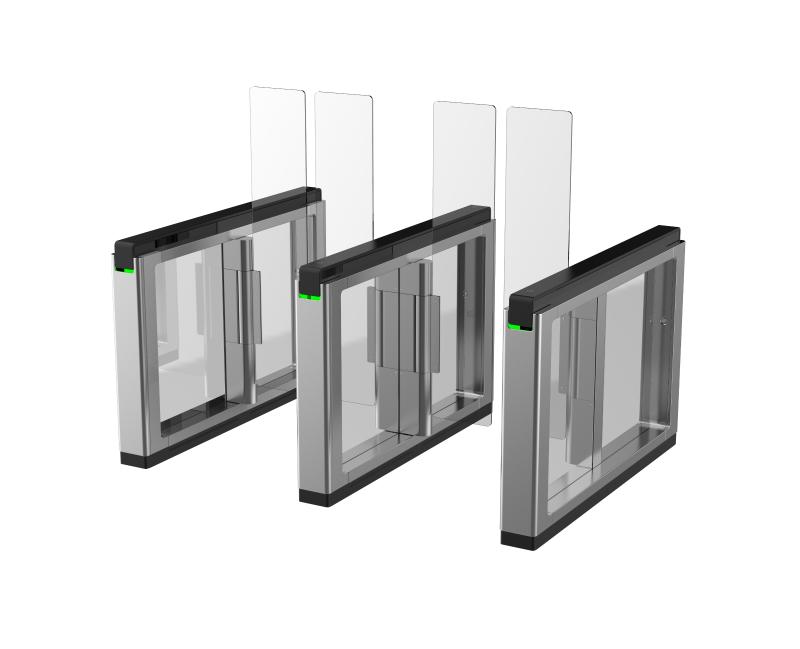

HIKVISION DS-K3B802BX

Ultra Swing Barriers

• Built-in card reader and access controller.
• The door wings will be locked or stop working when people are nipped.
• Self-detection, Self-diagnostics, and automatic alarm.
• Fire alarm passing: When the fire alarm is triggered, the barrier will be open automatically for emergency evacuation.
• Audible and visual alarm will be triggered when detecting intrusion, tailgating, reverse passing, climbing over barrier, and overstay.
• The barrier’s material is high-strength tampered glass, sticked with film, which will not cause injury when the glass is broken.
• TCP/IP network communication: The communication data is specially encrypted to relieve the concern of privacy leak.

• System
• MotorServo motor
• MCBF≥ 8 million times

• Network
• Communication protocolISAPI,ISUP5.0
• Wired network10/100Mbps self-adaptive Ethernet

• Interface
• Network interface1
• Lock control2
• Exit button2
• Alarm output2
• TAMPERYES
• RS-4854
• RS-2322
• Wiegand2
• Fire alarm input1
• Case input2

• Hardware
• Access controllerSupplied
• SupercapacitorSupplied

• Capacity
• Fingerprint capacity5,000 (optional)
• Card capacity1,000,000
• Event capacity1,000,000

• Function
• Configuration via Web browserSupport

• General
• Throughput30 to 60 persons per minute

  The actual throughput is affected by the person passing rate and passing method

• IR light detectors24 pairs
• Lane width550 mm to 1100 mm (21.65″ to 43.31″)
• Barrier materialTempered glass
• Pedestal materialSUS304 stainless steel with the thickness of 2 mm (0.08″)
• Power100 to 240 VAC; 50 to 60 Hz
• Power consumption70W (stand by)
• Working temperature-10 °C to 55 °C (14 °F to 131 °F)
• Working humidity10% to 95% (No Condensing)
• DimensionsWith packaging: 1688 mm × 348 mm × 1318 mm (66.5″ × 13.7\” × 51.9\”)

  Without packaging: 1500 mm × 160 mm × 1010 mm (59.1 × 6.3\” × 39.8\”)”

• WeightNot include door wings

  (Net) Left: 99.34 kg (219.00 lbs) Middle: 108.8 kg (239.86 lbs) Right: 102.8 kg kg (226.64 lbs)

  (Rough) Left: 147.8 kg (325.84 lbs) Middle: 157.26 kg (346.70 lbs) Right: 151.26 kg (333.47lbs)

• ApprovalCE/CB/RoHS/REACH/WEEE

• Configuration
• Lane width650,900
• Pedestal length1500mm
• Module selectionYES
• Pedestal width160mm
• Wall distance50mm
• BaseYES
• Barrier materialTempered glass
• Application environmentIndoor
• Authentication modeCard;Face
• Card typeEM;M1
• Recommended width650
• Base modelDS-K3B802X-BASE
• Product typeSwing barrier
• Remote controller type433Mhz;868Mhz
• Movement Protrusion Width65mm
• Door wing height1.6m
