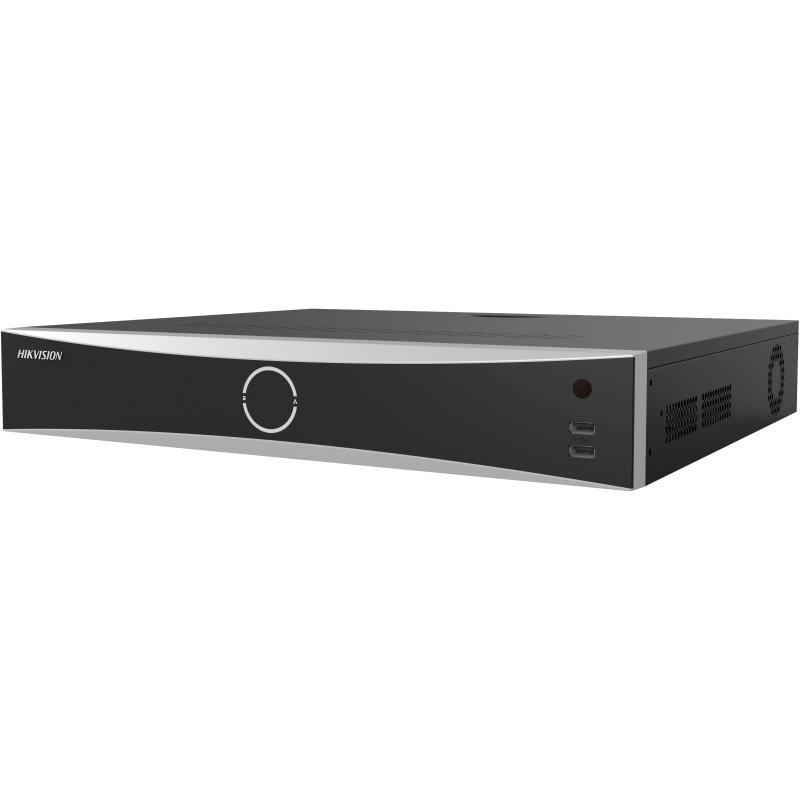

16-ch 1.5U 16 POE AcuSense 4K NVR

Intelligent Analytics
AI by NVR
Facial recognition, perimeter protection, motion detection 2.0
AI by Camera
Facial recognition, perimeter protection, video structuralization, throwing objects from building, motion detection 2.0, ANPR, people counting, VCA
Engine
1, engine mode is adjustable

Facial Recognition
Facial Detection and Analytics
Face picture comparison, human face capture, face picture search
Face Attributes
Wearing glasses, wearing a mask, facial expression, body temperature
Face Picture Library
Up to 16 face picture libraries, with up to 50,000 face pictures in total (each picture ≤ 512 KB, total capacity ≤ 1 GB)
Face Picture Comparison (Captured from Camera)
8-ch
Facial Detection and Analytics Performance
4-ch human face capture (HD network camera, up to 8 MP, H.264/H.265)

Perimeter Protection
By Camera
All channels
By NVR
4-ch, 2 MP (H.264/H.265) video analysis for human and vehicle recognition to reduce false alarm;
Up to 12 rules in total

Video and Audio
IP Video Input
16-ch
Incoming Bandwidth
160 Mbps
Outgoing Bandwidth
256 Mbps
HDMI 1 Output
4K (3840 × 2160)/30 Hz, 2K (2560 × 1440)/60 Hz, 1920 × 1080/60 Hz;4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, HDMI1/VGA simultaneous output
HDMI 2 Output
4K (3840 × 2160)/30 Hz, 2K (2560 × 1440)/60 Hz, 1920 × 1080/60 Hz;1920 × 1080/60Hz, HDMI2/VGA independent output
VGA Output
1920 × 1080/60 Hz;1-ch, 1920 × 1080/60Hz,
HDMI1/VGA simultaneous output
Video Output Mode
HDMI1/VGA simultaneous output, HDMI2/VGA independent output
CVBS Output
1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480
Audio Output
1-ch, RCA (Linear, 1 KΩ)
Two-Way Audio
1-ch, RCA (2.0 Vp-p, 1 KΩ)

Decoding
Decoding Format
H.265+/H.265/H.264+/H.264
Recording Resolution
32 MP/24 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA /4CIF/DCIF/2CIF/CIF/QCIF
32MP/24MP/12MP/8MP/7MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
*: The NVR supports up to 4-ch 32 MP/24 MP IP video inputs.
Synchronous Playback
16-ch
Decoding Capability
Enable AI by NVR: 20-ch@1080p (30 fps)
Disable AI by NVR: 32-ch@1080p (30 fps)
Dual-Stream Recording
Support
Stream Type
Video, Video & Audio
Live View Window Division
1/2/4/6/8/9/16
Aux Port Window Division
1/2/4/6/8/9/16
Audio Compression
G.711ulaw/G.711alaw/G.722/G.726/AAC/MP2L2/PCM

Network
Network Interface
1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
Remote Connection
128
Network Protocol
TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS, ONVIF(Version 2.2), OTAP
API
ONVIF (profile S/G); SDK; ISAPI
Compatible Browser
IE11, Chrome V57, Firefox V52, Safari V12, Edge V89, or above version
Camera Access Protocol
ONVIF(Version 2.5), RTSP

Auxiliary Interface
Serial Interface
2 RS-485 (half-duplex), 1 RS-232
SATA
4 SATA interfaces
eSATA
1 eSATA interface
Capacity
Up to 16 TB capacity for each disk
Alarm In/Out
16/9
USB Interface
Front panel: 2 × USB 2.0; Rear panel: 1 × USB 3.0
Ctrl 12V
Controllable 12 VDC, 0.5 A power output for external alarm device; The power will be turned on when the alarm output is triggered.
*: The Ctrl 12V power is controlled by alarm output 9.
DC 12V
12 VDC, 1 A power output

General
GUI Language
English, Russian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Turkish, Japanese, Danish, Swedish Language, Norwegian, Finnish, Korean, Traditional Chinese, Thai, Estonian, Vietnamese, Croatian, Slovenian, Serbian, Latvian, Lithuanian, Uzbek, Kazakh, Arabic, Ukrainian, Kyrgyz , Brazilian Portuguese, Indonesian, Hebrew
Power Supply
100 to 240 VAC, 50 to 60 Hz
Consumption
≤ 30 W (without HDD and PoE off)
Working Temperature
-10° C to 55° C (14° F to 131° F)
Working Humidity
10% to 90%
Chassis
19-inch rack-mounted 1.5U chassis
Dimension (W × D × H)
440 × 391 × 75 mm ( 17.3″× 15.4″ × 3.0″)
Weight
≤ 3.6 kg (without HDD, 7.9 lb.)
