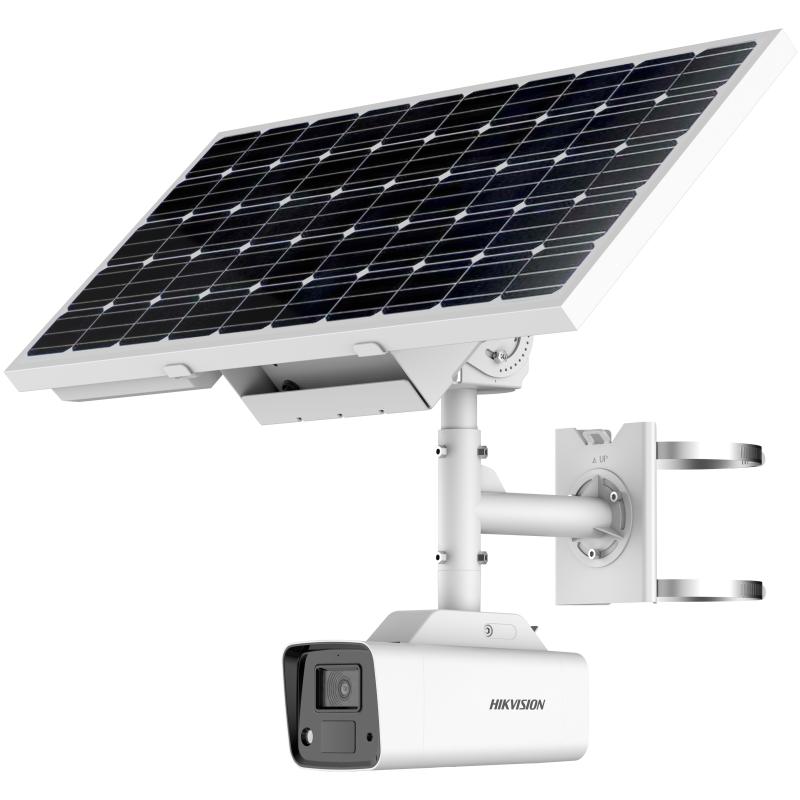

CAMERA HIKVISION DS-2XS2T47G1-LD/4G

4MP ColorVu Solar-powered Security Camera Setup

• High quality imaging with 4 MP resolution
• Standalone with solar panel and built-in battery
• 24/7 colorful imaging
• Support Human Detection
• Efficient H.265+ compression technology
• Provide real-time security via built-in two-way audio
• Water and dust resistant (IP67)
• Stability against category 12 typhoon
• Support 4G (LTE-TDD/LTE-FDD/TD-SCDMA) communication

• Camera
• Image Sensor1/3″ Progressive Scan CMOS
• Max. Resolution2560 × 1440
• Min. IlluminationColor: 0.0005 Lux @ (F1.0, AGC ON),0 Lux with light
• Shutter Time1/3 s to 1/100,000 s
• Day & Night24/7 color imaging
• Angle AdjustmentSolar panel: pan: 0° to 358°, tilt: -40° to 0°; camera: pan: 0° to 360°, tilt: -60° to 0°

• Lens
• Lens TypeFixed focal lens, 4 and 6 mm optional
• Iris TypeFixed
• ApertureF1.0
• Depth of Field4 mm: 2.7 m to ∞

  6 mm: 5.9 m to ∞

• Focal Length & FOV4 mm, Horizontal FOV: 75°, Vertical FOV: 40°, Diagonal FOV: 89°

  6 mm, Horizontal FOV: 49°, Vertical FOV: 27°, Diagonal FOV: 57°

• Lens MountM12

• DORI
• DORI4 mm, D: 82 m, O: 32 m, R: 16 m, I: 8 m

  6 mm, D: 120 m, O: 47 m, R: 24 m, I: 12 m

• Illuminator
• Supplement Light TypeWhite Light
• Supplement Light RangePerformance mode: up to 30 m, proactive mode: up to 10 m
• Smart Supplement LightYes

• Video
• Main Stream50 Hz: 12.5 fps (2560 × 1440, 1920 × 1080, 1280 × 720)

  60 Hz: 15 fps (2560 × 1440, 1920 × 1080, 1280 × 720)

• Sub-Stream50 Hz: 12.5 fps (1280 × 720, 640 × 480, 640 × 360)

  60 Hz: 15 fps (1280 × 720, 640 × 480, 640 × 360)

• Video CompressionMain stream: H.265/ H.264,

  Sub-stream: H.265/H.264/MJPEG,

  H.264+ and H.265+: main stream supports under performance mode

• Video Bit Rate32 Kbps to 8 Mbps
• H.264 TypeBaseline Profile,Main Profile,High Profile
• H.265 TypeMain Profile
• Bit Rate ControlCBR,VBR
• Scalable Video Coding (SVC)H.264 and H.265 encoding
• Region of Interest (ROI)1 fixed region(s) for main stream

• Audio
• Audio Sampling Rate8 kHz/16 kHz
• Environment Noise FilteringYes
• Audio CompressionG.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC-LC
• Audio Bit Rate64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)

• Network
• APIONVIF (Profile S, Profile T, Profile G),ISAPI,SDK,ISUP,OTAP
• SecurityPassword protection, complicated password, basic and digest authentication for HTTP, TLS 1.1/1.2/1.3, WSSE and digest authentication for Open Network Video Interface
• Simultaneous Live ViewUp to 6 channels
• ProtocolsTCP/IP, ICMP, HTTP, DHCP, DNS, RTP, RTSP, RTCP, NTP, IGMP, QoS, UDP
• User/HostUp to 32 users

  3 user levels: administrator, operator, and user

• Network StorageAuto Network Replenishment (ANR)
• ClientiVMS-4200,Hik-Connect,Hik-Central
• Web BrowserPlug-in required live view: IE 10+,

  Plug-in free live view: Chrome 57.0+, Firefox 52.0+,

  Local service: Chrome 57.0+, Firefox 52.0+

• Mobile Communication
• SIM Card TypeMicro SIM
• Uplink and Downlink Data RateCat 4, uplink: 50 Mbps Mbps, downlink: 150 Mbps
• FrequencyNL668-EU:

  LTE-TDD: B38/B40/B41

  LTE-FDD: B1/B3/B5/B7/B8/B20/B28

  WCDMA: B1/B5/B8

  GSM: B3/B5/B8

  NL668-LA:

  LTE-TDD: B38/B40

  LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B12/B17/B28/B66

  WCDMA: B1/B2/B3/B4/B5/B8

  GSM: B2/B3/B5/B8

  NL668-US:

  LTE-FDD: B2/B4/B5/B12/B13/B17/B66/B71

  WCDMA: B2/B4/B5

• StandardLTE-TDD,LTE-FDD,WCDMA,GSM

• Image
• SNR≥ 52 dB
• Wide Dynamic Range (WDR)Digital WDR
• Day/Night SwitchDay,Night,Auto,Schedule
• Image EnhancementBLC,HLC,3D DNR
• Image SettingsSaturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser

• Interface
• On-Board StorageBuilt-in eMMC storage, up to 64 GB,

  Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 256 GB,For eMMC storage, 50 GB is available for recording.

• Built-in MicrophoneYes
• Built-in SpeakerYes
• Reset KeyYes

• Event
• Basic EventMotion detection,video tampering alarm,network disconnected,IP address conflict,illegal login,HDD full,HDD error
• Linkage

  Upload to memory card,notify surveillance center,trigger recording,trigger capture,audible warning

• General
• PowerPower Consumption and Current:

  Typical power scenarios: 1.85 W (4G working)

  Standby scenarios: 40 mW

  Max. power consumption: 6 W

  Power Supply:

  12 VDC ± 25%

  *For debugging only

  40 W (deviation: ± 2 W) Solar panels

  Power Interface:

  Power supply interface: Ø5.5 mm coaxial power plug

  Extened solar panel: four-core aviation connector

• MaterialADC12
• Storage Conditions0 °C to 60 °C (32 °F to 140 °F). Humidity 95% or less (non-condensing)
• LanguageEnglish, Ukranian
• General FunctionHeartbeat,mirror,flash log
• Startup and Operating Conditions0 °C to 60 °C (32 °F to 140 °F). Humidity 95% or less (non-condensing)
• Dimension679 mm × 443 mm × 760 mm (26.7″ × 17.4″ × 29.9″)
• Package Dimension910 mm × 350 mm × 450 mm (35.8″ × 13.8″ × 17.7″)
• Weight

  Approx. 11.575 kg (25.5 lb.)

• With Package Weight

  Approx. 16.21 kg (35.7 lb.)

• Battery
• Battery TypeTernary Lithium
• Capacity8.4 Ah × 2 packs
• Max. Charging Voltage12.6 V
• Operating TemperatureCharging: 0 °C to 45 °C (32 °F to 113 °F)

  Discharging: -20 °C to 60 °C (-4 °F to 140 °F)

• Battery Voltage9 V to 12.6 V
• Battery LifeMore than 500 cycles
• Cycle LifetimePerformance mode: 3.6 days,

  Proactive mode: 6 days,

  Standby mode: 30 days

• Battery WeightApprox. 1400 g (3.1 lb.)

• Approval
• EMC

  CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014

• RFCE-RED: EN 301489-1 V2.1.1 (BT or 2.4G), EN 301489-17 V3.1.1 (BT or 2.4G),

  EN 300328 V2.1.1 (BT or 2.4G), EN 62311: 2008 (BT or 2.4G)

• Safety

  CB: IEC 62368-1: 2014+A11,

  CE-LVD: EN 62368-1: 2014/A11: 2017

• EnvironmentCE-RoHS: 2011/65/EU,

  WEEE: 2012/19/EU,

  Reach: Regulation (EC) No 1907/2006

• ProtectionIP67: IEC 60529-2013
