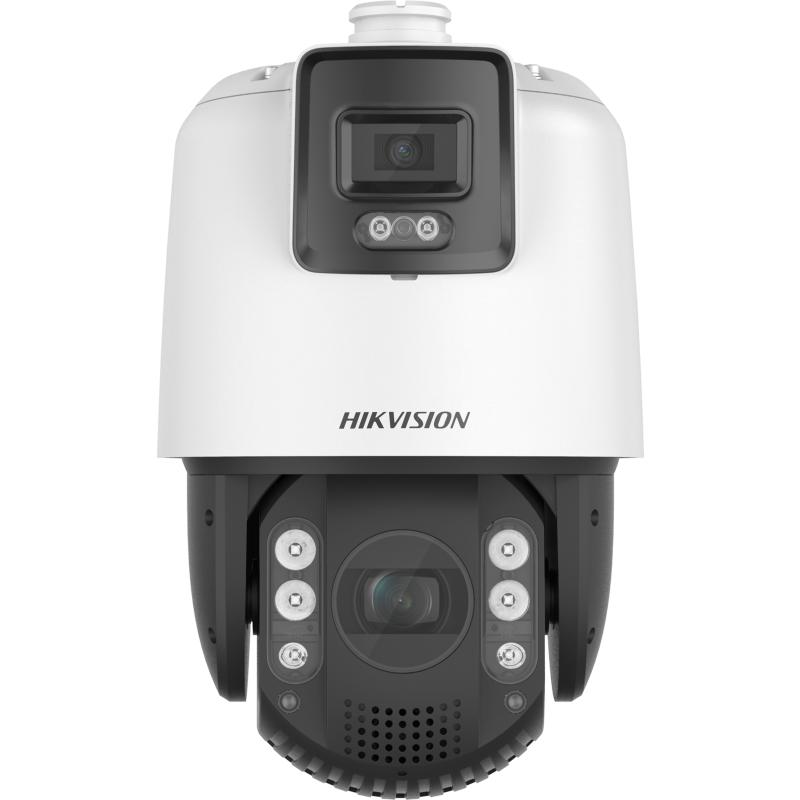

TandemVu 4+4MP 32X ColorVu & IR Acusense Network Speed Dome

Captures a large area and great details at the same time
High quality imaging with 4 MP resolution
Excellent low-light performance with powered-by-DarkFighter technology
Secures an expansive area with 32× optical zoom and 16× digital zoom
Supports WDR, HLC, BLC, 3D DNR, defog, regional exposure, regional focus, rapid focus
Expansive night view with up to 200 m IR distance
Supports 24 VAC & Hi-PoE
Active strobe light and audio alarm to warn intruders off

Available models:

DS-2SE7C432MW-AEB(14F1)(P3)

Camera
Image Sensor[Bullet channel]: 1/1.8″ Progressive Scan CMOS; [PTZ channel]: 1/1.8″ progressive scan CMOS
Max. Resolution[Bullet channel] 2560 × 1440, [PTZ channel] 2560 × 1440
Min. Illumination[Bullet channel]: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with light; [PTZ channel]: Color: 0.005 Lux @ (F1.5, AGC ON), B/W: 0.001 Lux @ (F1.5, AGC ON), 0 Lux with IR
Shutter Speed1 s to 1/30,000 s
Day & NightICR
Zoom[PTZ channel] 32 × optical, 16 × digital
Slow Shutteryes
HLCyes
3D DNRyes

Lens
Focal Length[Bullet channel]: 4 mm; [PTZ channel]: 5.9 to 188.8 mm, 32 × optical
FOV[Bullet channel]: Horizontal field of view: 88.7°, Vertical field of view: 44.7°; [PTZ channel]: Horizontal field of view: 60.2° to 2.3° (wide-tele)
Focussemi-auto||manual||auto
Aperture[Bullet channel]: F1.0; [PTZ channel]: F1.5
Zoom Speed[PTZ channel]: approx. 5.6 s

Illuminator
Supplement Light Type[Bullet channel] white light, [PTZ channel] IR
Supplement Light Range[Bullet channel] white light: up to 30 m, [PTZ channel] IR: up to 200 m
Smart Supplement LightYes

PTZ
Movement Range (Pan)360°
Movement Range (Tilt)-15° to 90° (auto flip)
Pan Speedpan speed: configurable from 0.1° to 160°/s; preset speed: 240°/s
Tilt Speedtilt speed: configurable from 0.1° to 120°/s, preset speed 200°/s
Proportional Panyes
Presets300
Preset Freezingyes
Patrol Scan8 patrols, up to 32 presets for each patrol
Pattern Scan4 pattern scans
Park Actionpreset||pattern scan||patrol scan||auto scan||tilt scan||random scan||frame scan||panorama scan
3D Positioningyes
PTZ Status Displayyes
Scheduled Taskpreset||pattern scan||patrol scan||auto scan||tilt scan||random scan||frame scan||panorama scan||dome reboot||dome adjust||aux output
Power-off Memoryyes

Video
Main Stream[Bullet channel]:
50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720)
60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720)
[PTZ channel]:
50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720)
60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720)
Sub-Stream[Bullet channel]:
50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288)
60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240)
[PTZ channel]:
50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288)
60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240)
Third Stream[Bullet channel]:
50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288)
60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)
[PTZ channel]:
50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288)
60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)
Video CompressionH.265||H.264||MJPEG
Video Bit Rate32 kbps to 16384 kbps
H.264 Typebaseline profile||main profile||high profile
H.265 Typemain profile
Scalable Video Coding (SVC)yes
Region of Interest (ROI)main stream, sub-stream and third stream respectively support eight fixed areas

Network
ProtocolsIPv4/IPv6||HTTP||HTTPS||802.1x||Qos||FTP||SMTP||UPnP||SNMP||DNS||DDNS||NTP||RTSP||RTCP||RTP||TCP/IP||UDP||IGMP||ICMP||DHCP||PPPoE||Bonjour
Simultaneous Live View20
APIOpen-ended API, Open Network Video Interface (Profile S, Profile G), ISAPI, Hikvision SDK, Third-party management platform, ISUP
User/Host32
SecurityAuthenticated username and password||MAC address binding||HTTPS encryption||802.1X authenticated access||IP address filter
Network StorageNAS (NFS，SMB/ CIFS), ANR
ClientiVMS-4200||Hik-Connect
Web BrowserIE 10+, Chrome 57+, Firefox 52+, Safari 12+

Image Parameters SwitchYes
Image Settingssaturation||brightness||contrast||sharpness
Day/Night Switchday, night, auto, scheduled-switch
Wide Dynamic Range (WDR)120 dB WDR
SNR＞52dB
Defogyes
Image StabilizationEIS (Built-in gyroscope to improve EIS performance)
Image EnhancementBLC, HLC, 3D DNR
Privacy Mask[Bullet channel] 8 programmable polygon privacy masks, [PTZ channel] 24 programmable polygon privacy masks; mask color or mosaic configurable
Regional Focusyes
Regional Exposureyes

Interface
Ethernet InterfaceRJ45, self-adaptive 10M/100M Ethernet port
On-board StorageBuilt-in memory card slot, support Micro SD/Micro SDHC/Micro SDXC, up to 256 GB
Audio1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 KΩ ± 10%,
1 output (line out), line level, output impedance: 600 Ω
Alarm2 input(s), 1 output(s)
Resetyes

Event
Basic Event[PTZ channel] motion detection, video tampering alarm,[PTZ channel & bullet channel] alarm input and output, exception
Smart Event[PTZ channel & bullet channel] audio exception detection,[PTZ channel] line crossing detection, intrusion detection, region entrance detection, region exiting detection,[Bullet channel] line crossing detection, intrusion detection, region entrance detection, region exiting detection
Linkage[Bullet channel] Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, audible warning, white light flashing,[PTZ channel] Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, audible warning, white light flashing, and PTZ actions (such as preset, patrol scan, pattern scan)
Smart Tracking[PTZ channel] yes
Smart LinkageManual tracking, auto tracking, tracking takeover, track in turn

General
Power24 VAC, Hi-PoE
DimensionØ 220 mm × 382.1 mm (Ø 8.66″ × 15.04″)
WeightApprox. 6 kg (13.23 lb.)
MaterialADC12
Operating Condition-30℃ to 65℃ (-22°F to 149°F) ||humidity lower than 90%RH
General Functionmirror, password protection, watermark, IP address filter
DemistDemist by heating the glass
Power Consumption and CurrentMax. 42 W, including max. 2.6 W for heater and max. 11 W for supplement light
