4 MP 32X Powered by DarkFighter IR+White Light Network Speed

24/7 colorful imaging
High quality imaging with 4 MP resolution
Audio visual alarm: The white flashing light and audible warning can be triggered by certain events
32 × optical zoom and 16 × digital zoom provide close up views over expansive areas
Expansive night view with up to 150 m IR distance and 100 m white light
Focuses on human and vehicle targets classification based on deep learning
Face capture: Up to 5 faces captured at the same time

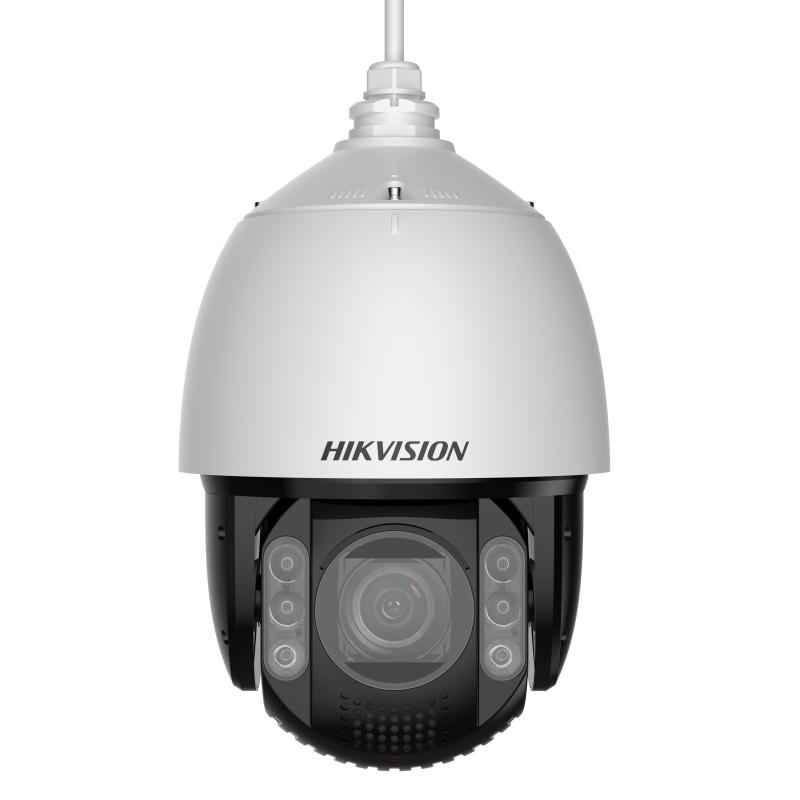

Available models: DS-2DE7A432MWG-EB

Camera
Image Sensor1/2.8″ Progressive Scan CMOS
Max. Resolution2688 × 1520
Min. IlluminationColor: 0.005 Lux @ (F1.5, AGC ON),0 Lux with light,B/W: 0.001 Lux @ (F1.5, AGC ON),0 Lux with IR
Shutter Speed1/1 s to 1/30000 s
Day & NightIR cut filter
Zoom32 × optical,16 × digital
Slow ShutterYes

Lens
Focal Length5.9 to 188.8 mm
FOVHorizontal field of view: 60.2° to 2.3°, vertical field of view: 35.2° to 1.3°, diagonal field of view: 67.4° to 2.6°
FocusAuto, semi-auto, manual
ApertureMax. F1.5
Zoom SpeedApprox. 5.6 s

PTZ
Movement Range (Pan)360°
Movement Range (Tilt)-15° to 90° (auto flip)
Pan SpeedPan speed: configurable from 0.1° to 160°/s; preset speed: 240°/s
Tilt SpeedTilt speed: configurable from 0.1° to 120°/s, preset speed 200°/s
Proportional PanYes
Presets300
Preset FreezingYes
Patrol Scan8 patrols, up to 32 presets for each patrol
Pattern Scan4 pattern scans
Park ActionPreset, patrol scan, pattern scan, auto scan, tilt scan, random scan, frame scan, panorama scan
3D PositioningYes
PTZ Status DisplayYes
Scheduled TaskPreset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan, dome reboot, dome adjust, aux output
Power-off MemoryYes

Video
Main Stream
50 Hz: 25 fps (2688 × 1520, 2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720),
60 Hz: 30 fps (2688 × 1520, 2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720)
Sub-Stream
50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288)
60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240)
Third Stream
50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288)
60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)
Video Compression
Main stream: H.265+/H.265/H.264+/H.264
Sub-stream: H.265/H.264/MJPEG
Third stream: H.265/H.264/MJPEG
Video Bit Rate32 kbps to 16384 kbps
H.264 TypeBaseline Profile/Main Profile/High Profile
H.265 TypeMain Profile
Scalable Video Coding (SVC)H.264 and H.265 encoding
Region of Interest (ROI)8 fixed regions for each stream

Audio
Audio CompressionG.711,G.722.1,G.726,MP2L2,PCM,MP3,AAC-LC
Audio Bit Rate64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32-192 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC)
Audio Sampling RateAAC-LC: 16 kHz, 32 kHz, 48 kHz,PCM: 8 kHz, 16 kHz, 32 kHz, 48 kHz,MP2L2: 16 kHz, 32 kHz, 48 kHz
Environment Noise FilteringYes

Network
ProtocolsIPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour, WebSocket, WebSockets
Simultaneous Live ViewUp to 20 channels
APIOpen Network Video Interface (Version 19.12, Profile S, Profile G, Profile T), ISAPI, SDK, ISUP
User/HostUp to 32 users, 3 user levels: administrator, operator, and user
SecurityPassword protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.2, TLS 1.3, host authentication (MAC address)
Network StorageNAS (NFS, SMB/CIFS), auto network replenishment (ANR)
ClientiVMS-4200, HikCentral Pro, Hik-Connect
Web BrowserIE11, Chrome 57+, Firefox 52+, Safari 12+

Image SettingsSaturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browser
Day/Night SwitchDay, Night, Auto, Schedule
Wide Dynamic Range (WDR)120 dB
SNR> 52 dB
DefogDigital defog
Image StabilizationEIS
Image EnhancementBLC, HLC, 3D DNR
Privacy Mask24 programmable polygon privacy masks, mask color or mosaic configurable
Regional FocusYes
Regional ExposureYes

Interface
Ethernet Interface1 RJ45 10M/100M self-adaptive Ethernet port
On-board StorageBuilt-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
Built-in Speaker1 built-in speaker with effective distance reaching max. 30 meters
Audio1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 kΩ ± 10%; 1 output (line out), line level, output impedance: 600 Ω
Alarm2 inputs, 1 output
ResetYes

Event
Basic EventMotion detection, video tampering alarm, exception, alarm input and output
Smart EventLine crossing detection, intrusion detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection, audio exception detection
LinkageUpload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, audible warning, white light flashing, and PTZ actions (such as preset, patrol scan, pattern scan)
Smart TrackingManual tracking, auto-tracking

General
Power
36 VDC, max. 42 W (including max. 12 W for IR and max. 2 W for heater),,
Hi-PoE
DimensionØ220 mm × 360.2 mm (Ø8.66″ × 14.18″)
WeightApprox. 5.5 kg (12.13 lb.)
MaterialADC12
Operating Condition-30 °C to 65 °C (-22 °F to 149 °F). Humidity 90% or less (non-condensing)
DemistYes

Approval
EMCCE-EMC (EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3: 2013 + A1: 2019, EN 50130-4: 2011 + A1: 2014),RCM (AS/NZS CISPR 32: 2015),IC (ICES-003: Issue 7),KC (KN 32: 2015, KN 35: 2015)
SafetyUL (UL 62368-1),CB (IEC 62368-1: 2014 + A11),CE-LVD (EN 62368-1: 2014/A11: 2017),LOA (IEC/EN 60950-1)
Environment
CE-RoHS (2011/65/EU); WEEE (2012/19/EU);
Reach (Regulation (EC) No 1907/2006)
ProtectionIP67 (IEC 60529-2013),IK10 (IEC 62262:2002),TVS 6000 V lightning protection, surge protection and voltage transient protection
