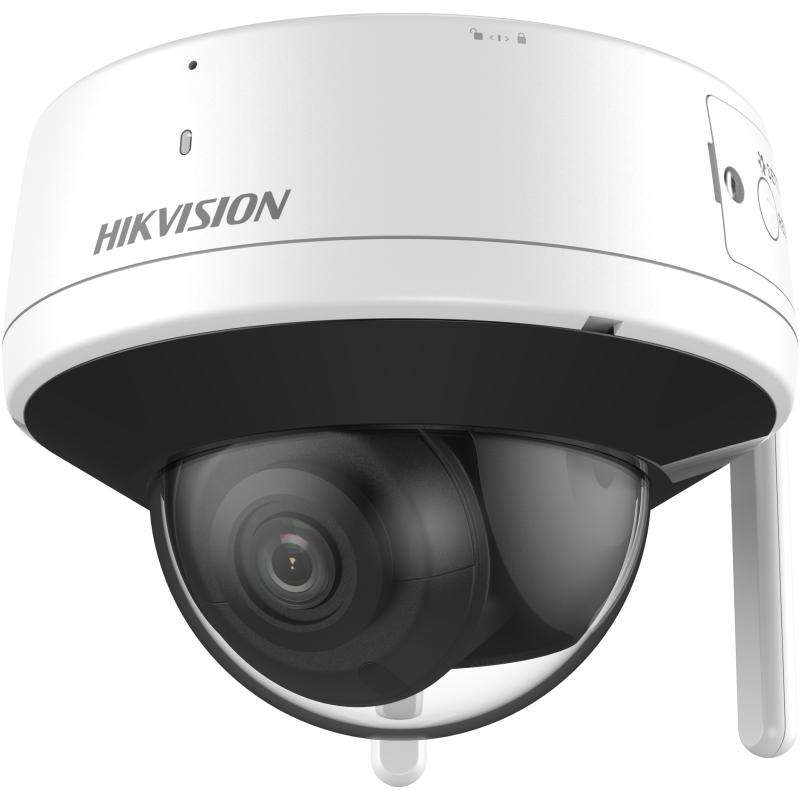

4 MP Outdoor Fixed Dome Network Camera with Build-in Mic

Available models:

DS-2CV1143G2-IDWF(2.8mm)(B)

DS-2CV1143G2-IDWF(4mm)(B)

Lens
Lens Type
Fixed focal lens, 2.8 and 4 mm optional
Focal Length & FOV
2.8 mm, horizontal FOV 116.4°, vertical FOV 63.8°, diagonal FOV 140.3°
4 mm, horizontal FOV 91.1°, vertical FOV 47.9°, diagonal FOV 110.8°
Aperture
F2.0
Iris Type
Fixed
Lens Mount
M12
Depth of Field
2.8 mm: 0.9 m to ∞
4 mm: 1.2 m to ∞

DORI
DORI
2.8 mm, D: 51 m, O: 20 m, R: 10 m, I: 5 m
4 mm, D: 69 m, O: 27 m, R: 13 m, I: 16 m

Video
Main Stream
50 Hz: 20 fps (2560 × 1440, 1920 × 1080, 1280 × 720)
60 Hz: 20 fps (2560 × 1440, 1920 × 1080, 1280 × 720)
Sub-Stream
50 Hz: 20 fps (768 × 432)
60 Hz: 20 fps (768 × 432)
Video Compression
Main stream: H.265/H.264,
Sub-stream: H.265/H.264
Video Bit Rate
32 Kbps to 4 Mbps
H.264 Type
Baseline Profile,Main Profile,High Profile
H.265 Type
Main Profile
Bit Rate Control
CBR,VBR
Region of Interest (ROI)
1 fixed region for main stream

Network
Security
Password protection, complicated password, watermark, basic and digest authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address)
Simultaneous Live View
Up to 6 channels
API
ISAPI,SDK
Protocols
TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTCP, RTSP, NTP, IGMP, IPv4, IPv6, UDP, QoS, UPnP
User/Host
Up to 32 users
3 user levels: administrator, operator, and user
Client
iVMS-4200
Web Browser
Chrome 57.0+, Firefox 52.0+, Edge 89+

Wi-Fi
Wi-Fi Protocol
IEEE802.11b, IEEE802.11g, IEEE802.11n, IEEE802.11ax
Frequency Range
2.4 GHz to 2.4835 GHz
Channel Bandwidth
20/40MHz (Only 11n supports 40MHz)
Modulation
802.11b: DBPSK, DQPSK, CCK
802.11g: BPSK, QPSK, 16QAM, 64QAM
802.11n: BPSK, QPSK, 16QAM, 64QAM
802.11ax: BPSK, QPSK, 16QAM, 64QAM, 256QAM
Encryption Mode
WPA-EAP/WPA2-EAP, WPA-PSK/WPA2-PSK
Transfer Rate
IEEE802.11b: up to 11 Mbps
IEEE802.11g: up to 54 Mbps
IEEE802.11n: up to 150 Mbps
IEEE802.11ax: up to 114 Mbps
Wireless Range
Up to 120 m
(The performance varies based on actual environment)
Antenna
2 Antennas

Image Parameters Switch
Yes
Wide Dynamic Range (WDR)
Digital WDR
SNR
≥ 52 dB
Day/Night Switch
Day,Night,Auto,Schedule
Image Enhancement
BLC,HLC,3D DNR
Image Settings
Saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser
Privacy Mask
4 programmable polygon privacy masks

Interface
Built-in Microphone
Yes
Built-in Speaker
Max. power consumption: 1.5 W, max. sound pressure level: 10 cm: 95 dB.
On-Board Storage
Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
Reset Key
Yes
Ethernet Interface
1 RJ45 10 M/100 M self-adaptive Ethernet port

Event
Basic Event
Motion detection (support alarm triggering by specified target types (human and vehicle))
Linkage
Notify surveillance center,audible warning

General
Power
12 VDC ± 25%, 0.6 A, max. 7.2 W,Ø5.5 mm coaxial power plug,reverse polarity protection,A switching adapter is included in the package.
Language
English, Ukranian
Storage Conditions
-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Startup and Operating Conditions
-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Material
Base: Metal, front cover: Polycarbonate, back cover: Polycarbonate
Dimension
Ø125.9 mm × 96.1 mm (Ø5″ × 3.8″)
Package Dimension
170 mm × 170 mm × 150 mm (6.7″ × 6.7″ × 5.9″)
Weight
Approx. 590 g (1.3 lb.)
General Function
Heartbeat,mirror,password protection,anti-banding

Approval
EMC
CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014
RF
CE-RED: EN 301489-1 V2.1.1(BT or 2.4G); EN 301489-17 V3.1.1 (BT or 2.4G); EN 300328 V2.1.1 (BT or 2.4G); EN 62311:2008 (BT or 2.4G)
Safety
CB: IEC 62368-1: 2014+A11,
CE-LVD: EN 62368-1: 2014/A11: 2017
Environment
CE-RoHS: 2011/65/EU,
WEEE: 2012/19/EU,
Reach: Regulation (EC) No 1907/2006
Protection
IP66: IEC 60529-2013
