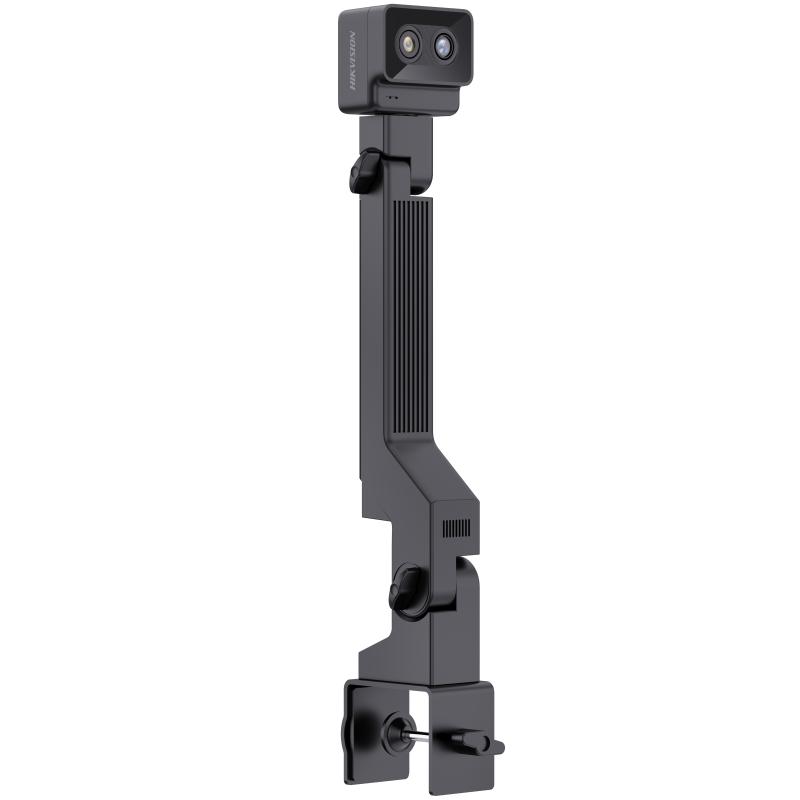

CAMERA HIKVISION DS-2CD6F82G0-S

Operations Recording Dual-Lens Camera

• High quality imaging with 8 MP and 2MP resolution
• Clear imaging against strong back light due to 120 dB true WDR technology
• Built-in microphone for real-time audio security

• Camera
• Image SensorChannel 1: 1/2.7″ Progressive Scan CMOS,

  Channel 2: 1/1.8 Progressive Scan CMOS”

• Max. Resolution3840 × 2160
• Min. IlluminationChannel 1: Color: 0.002 Lux @ (F1.0, AGC ON),

  Channel 2: 0.003 Lux @(F1.2, AGC ON)

• Shutter Time1 s to 1/100,000 s

• Lens
• Focal Length & FOV4/8 mm:

  Channel 1: horizontal FOV 83.6°, vertical FOV 44.6°, diagonal FOV 99.1°

  Channel 2: horizontal FOV 37.7°, vertical FOV 21°, diagonal FOV 43.5°

  2.8/6 mm:

  Channel 1: horizontal FOV 106.1°, vertical FOV 56.8°, diagonal FOV 126.5°

  Channel 2: horizontal FOV 50.8°, vertical FOV 27.6°, diagonal FOV 59°

• Iris TypeFixed
• ApertureChannel 1: F6.0,

  Channel 2: F1.0

• DORI
• DORID: 82.2 m, O: 32.6 m, R: 16.4 m, I: 8.2 m

• Video
• Main StreamChannel 1:

  50 Hz: 20 fps (1920 × 1080)

  60 Hz: 20 fps (1920 × 1080)

  Channel 2:

  50 Hz: 25 fps (3840 × 2160)

  60 Hz: 24 fps (3840 × 2160)

• Video CompressionMain stream: H.265/H.264
• H.264 TypeBaseline Profile,Main Profile,High Profile
• H.265 TypeMain Profile
• Bit Rate ControlCBR,VBR
• Scalable Video Coding (SVC)H.264 and H.265 encoding
• Region of Interest (ROI)4 fixed regions for Main Stream
• Video Bit Rate32 Kbps to 16 Mbps

• Audio
• Audio TypeMono sound
• Audio CompressionG.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
• Audio Bit Rate64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
• Audio Sampling Rate8 kHz/16 kHz/32 kHz/48 kHz
• Environment Noise FilteringYes

• Network
• ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, WebSocket, WebSockets
• Simultaneous Live ViewUp to 20 channels
• APIONVIF,ISAPI,SDK,ISUP
• User/HostUp to 32 users

  3 user levels: administrator, operator, and user

• Network StorageNAS (NFS, SMB/CIFS),NVR
• ClientiVMS-4200,Hik-Connect,HCP
• SecurityPassword protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP OVER HTTPS, Control Timeout Settings, Security Audit Log, TLS 1.2, TLS 1.3
• Web BrowserPlug-in required live view: IE 10, IE 11,

  Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+, Safari 11+,

  Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+

• Image
• Image Settingssaturation,brightness,contrast,sharpness,adjustable by client software or web browser
• Day/Night SwitchDay
• Image EnhancementBLC,HLC,3D DNR,Distortion Correction
• Wide Dynamic Range (WDR)Channel 1: 120dB; Channel 2: Digital WDR
• Privacy Mask8 rectangular privacy masks

• Interface
• Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
• On-Board StorageBuilt-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
• Built-in Microphone1 built-in microphone
• Reset KeyYes

• Event
• Basic EventMotion detection
• LinkageUpload to FTP/NAS/memory card,notify surveillance center,trigger recording

• General
• Power12 VDC ± 25%, 0.46 A, max. 5.5 W,Ø5.5 mm coaxial power plug

  PoE: IEEE 802.3af, Class 3, max. 8.4W

• MaterialMain body: Aluminum Alloy+plastic
• Dimension457.8 mm × 72.9 mm × 72 mm (18.02″ × 2.87″ × 2.83″)
• Package Dimension547 mm × 146 mm × 109 mm (21.54″ × 5.75″ × 4.29″)
• WeightApprox. 555 g (1.22 lb.)
• With Package WeightApprox. 920 g (2.03 lb.)
• Storage Conditions-30 °C to 50 °C (-22 °F to 122 °F). Humidity 95% or less (non-condensing)
• Startup and Operating Conditions-30 °C to 50 °C (-22 °F to 122 °F). Humidity 95% or less (non-condensing)
• Language33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
• General Functionmirror

• Approval
• EMCCE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021
• SafetyCB: IEC 62368-1: 2014,

  CE-LVD: EN 62368-1: 2014/A11: 2017

• EnvironmentCE-RoHS: 2011/65/EU,

  WEEE: 2012/19/EU,

  Reach: Regulation (EC) No 1907/2006
