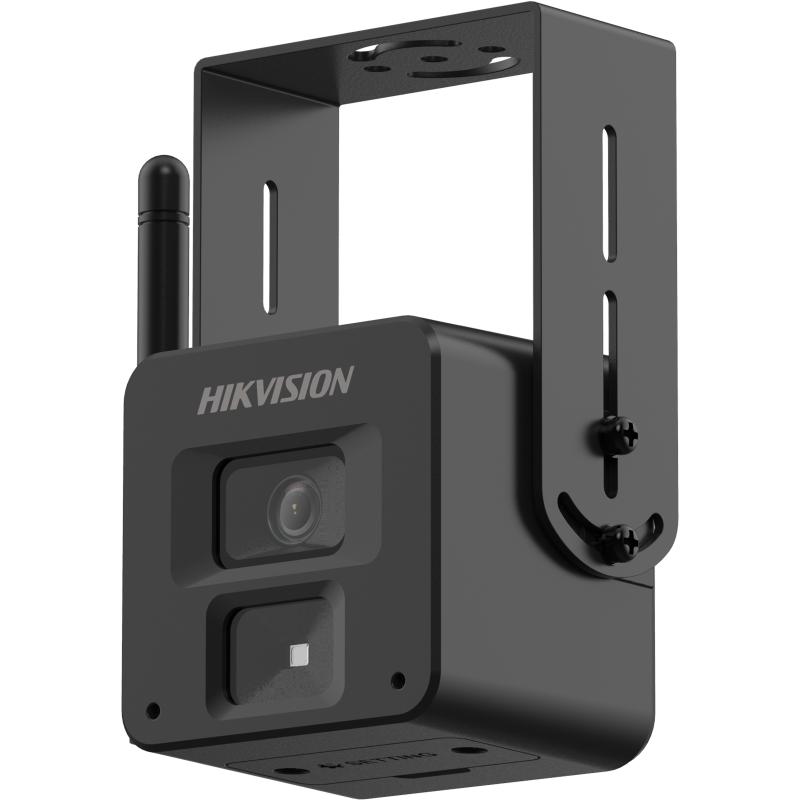

3MP Wireless Macro Camera

High quality imaging with 3 MP resolution
Clear imaging against strong back light due to 120 dB true WDR technology
Supports white light and 24/7 colorful imaging
Easy installation with small lens and recommended within 0.1 m to 0.5 m of object
Built-in microphone for real-time audio security
Water and dust resistant (IP67)
Realize Wi-Fi connection with coverage up to 80 m in open areas

Available models:

DS-2CD6B35G0-PLW(4mm)

Lens
Focal Length & FOV4 mm, horizontal FOV 74.9°, vertical FOV 59°, diagonal FOV 89.4°
Lens TypeFixed focal lens, 4 mm
Iris TypeFixed
FocusAuto,Manual,Semi-auto

Video
Main Stream50 Hz: up to 25 fps, default by 15 fps (2048 × 1536, 1920 × 1080, 1280 × 720)
60 Hz: up to 30 fps, default by 15 fps (2048 × 1536, 1920 × 1080, 1280 × 720)
Sub-Stream50 Hz: up to 25 fps, default by 10 fps (704 × 576, 640 × 480)
60 Hz: up to 30 fps, default by 10 fps (704 × 480, 640 × 480)
Video CompressionMain stream: H.265/H.264,
Sub-stream: H.265/H.264/MJPEG
H.264 TypeBaseline Profile,Main Profile,High Profile
H.265 TypeMain Profile
Bit Rate ControlCBR,VBR
Scalable Video Coding (SVC)H.264 and H.265 encoding
Region of Interest (ROI)1 fixed region for main stream
Video Bit Rate32 Kbps to 8 Mbps

Audio
Audio TypeMono sound
Audio CompressionG.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
Audio Bit Rate64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/8 to 48 Kbps (PCM)/8 to 160 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
Audio Sampling Rate16 kHz
Environment Noise FilteringYes

Network
ProtocolsSNMP, DDNS, RTP, UDP, UPnP, DHCP, IGMP, NTP, IPv4, SSL/TLS, TCP/IP, RTSP, ICMP, IPv6, QoS, DNS, HTTP
Simultaneous Live ViewUp to 15 channels
APIONVIF,ISAPI,SDK,ISUP
User/HostUp to 32 users
3 user levels: administrator, operator, and user
Network StorageNAS (NFS, SMB/CIFS),NVR
ClientiVMS-4200,Hik-Connect,HCP
SecurityPassword protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP OVER HTTPS, Control Timeout Settings, Security Audit Log, TLS 1.2, TLS 1.3
Web BrowserPlug-in required live view: IE 10, IE 11,
Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+, Safari 11+,
Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+

Wi-Fi
Encryption Mode64/128-bit WEP, WPA-EAP/WPA2-EAP, WPA-PSK/WPA2-PSK, WPS ,WAPI-PSK, WAPI-CERT
Wi-Fi ProtocolIEEE802.11b,IEEE802.11g,IEEE802.11n
Frequency Range2.4 GHz to 2.4835 GHz
Channel Bandwidth20/40 MHz
Modulation802.11b: CCK, QPSK, BPSK,
802.11g/n: OFDM
Wireless RangeUp to 80 m
(The performance varies based on actual environment)

Image Settingssaturation,brightness,contrast,sharpness,adjustable by client software or web browser
Day/Night SwitchDay,Night,Auto,Schedule
Wide Dynamic Range (WDR)120 dB
Image EnhancementBLC,HLC,3D DNR,Distortion Correction
Privacy Mask4 rectangular privacy masks

Interface
Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
On-Board StorageBuilt-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
Built-in Microphone1 built-in microphone
Reset KeyYes

Event
Basic EventMotion detection
LinkageUpload to FTP/NAS/memory card,notify surveillance center,trigger recording

General
Power12 VDC ± 25%, 0.33 A, max. 4 W,Ø5.5 mm coaxial power plug
MaterialMain body: Aluminum Alloy
Dimension96.6 mm × 106 mm × 52 mm (3.803″ × 4.173″ × 2.047″)
Package Dimension272 mm × 167 mm × 98 mm (10.71″ × 6.57″ × 3.86″)
WeightApprox. 370 g (0.816 lb.)
With Package WeightApprox. 550 g (1.21 lb.)
Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Startup and Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Language33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
General Functionmirror

Approval
EMCCE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021
SafetyCB: IEC 62368-1: 2014,
CE-LVD: EN 62368-1: 2014/A11: 2017
EnvironmentCE-RoHS: 2011/65/EU,
WEEE: 2012/19/EU,
Reach: Regulation (EC) No 1907/2006
RFCE-RED: EN 301 489-1 V2.2.3, EN 301 489-17 V3.2.4, EN 300 328 V2.2.2, EN IEC 62311: 2020
ProtectionIP67: IEC 60529-2013
