DS-2CD2T26G2-ISU/SL

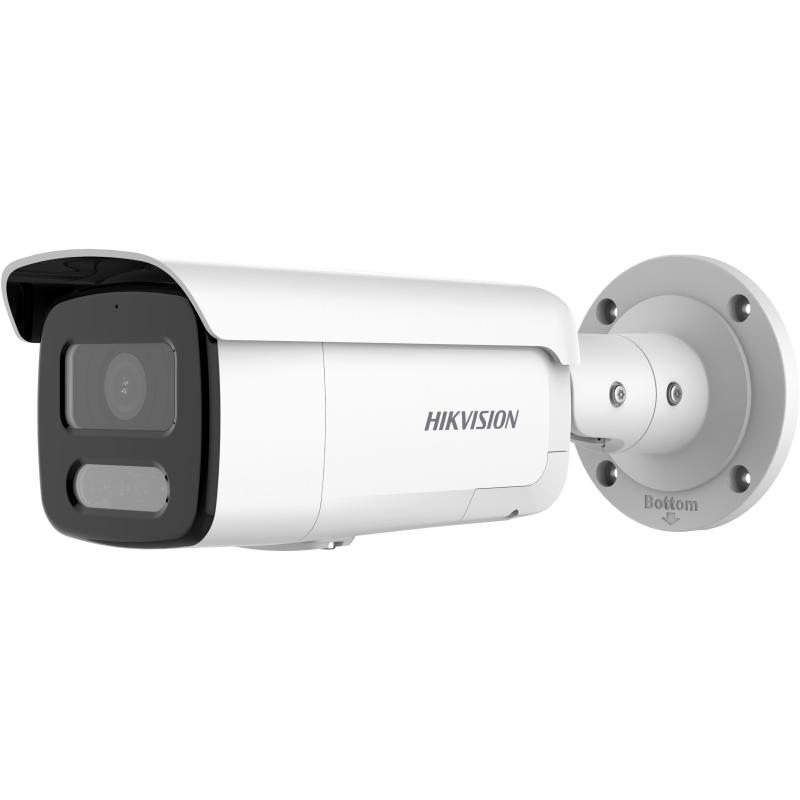

CAMERA HIKVISION DS-2CD2T26G2-ISU/SL



2 MP AcuSense Strobe Light and Audible Warning Fixed Bullet Network Camera



  • High quality imaging with 2 MP resolution
  • Excellent low-light performance with powered-by-DarkFighter technology
  • Clear imaging against strong back light due to 120 dB WDR technology
  • Efficient H.265+ compression technology
  • Focus on human and vehicle targets classification based on deep learning
  • Active strobe light and audio alarm to warn intruders off
  • Provides real-time security via built-in two-way audio
  • Water and dust resistant (IP67)



  • Camera
  • Image Sensor
    1/2.8″ Progressive Scan CMOS
  • Max. Resolution
    1920 × 1080
  • Min. Illumination
    Color: 0.002 Lux @ (F1.4, AGC ON),B/W: 0 Lux with IR
  • Shutter Time
    1/3 s to 1/100,000 s
  • Day & Night
    IR cut filter
  • Angle Adjustment
    Pan: 0° to 360°,tilt: 0° to 90°,rotate: 0° to 360°
  • Lens
  • Lens Type
    Fixed focal lens, 2.8, 4, and 6 mm optional
  • Focal Length & FOV
    2.8 mm, horizontal FOV: 107°, vertical FOV: 57°, diagonal FOV: 129°
    4 mm, horizontal FOV: 86°, vertical FOV: 47°, diagonal FOV: 102°
    6 mm, horizontal FOV: 55°, vertical FOV: 29°, diagonal FOV: 65°
  • Lens Mount
    M12
  • Iris Type
    Fixed
  • Aperture
    F1.4
  • Depth of Field
    2.8 mm: 1.1 m to ∞
    4 mm: 1.2 m to ∞
    6mm: 3 m to ∞
  • DORI
  • DORI
    2.8 mm: D: 44 m, O: 17 m, R: 9 m, I: 4 m
    4 mm: D: 53 m, O: 21 m, R: 11 m, I: 5 m
    6 mm: D: 87 m, O: 34 m, R: 17 m, I: 9 m
  • Illuminator
  • Supplement Light Type
    IR
  • Supplement Light Range
    Up to 60 m
  • Smart Supplement Light
    Yes
  • IR Wavelength
    850 nm
  • Video
  • Main Stream
    50 Hz: 25 fps (1920 × 1080, 1280 × 720)
    60 Hz: 30 fps (1920 × 1080, 1280 × 720)
  • Sub-Stream
    50 Hz: 25 fps (640 × 480, 640 × 360)
    60 Hz: 30 fps (640 × 480, 640 × 360)
  • Third Stream
    50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
    60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360),
    *Third stream is supported under certain settings.
  • Video Compression
    Main stream: H.265/H.264/H.264+/H.265+,
    Sub-stream: H.265/H.264/MJPEG,
    Third stream: H.265/H.264,
    *Third stream is supported under certain settings.
  • Video Bit Rate
    32 Kbps to 8 Mbps
  • H.264 Type
    Baseline Profile,Main Profile,High Profile
  • H.265 Type
    Main Profile
  • Bit Rate Control
    CBR
  • Scalable Video Coding (SVC)
    H.264 and H.265 encoding
  • Region of Interest (ROI)
    1 fixed region(s) for main stream and sub-stream
  • Audio
  • Audio Type
    Mono sound
  • Audio Compression
    G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
  • Audio Bit Rate
    64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
  • Audio Sampling Rate
    8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
  • Environment Noise Filtering
    Yes
  • Network
  • Protocols
    TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets
  • Simultaneous Live View
    Up to 6 channels
  • API
    Open Network Video Interface (Profile S, Profile G, Profile T),ISAPI,SDK
  • Smooth Streaming
    Yes
  • User/Host
    Up to 32 users
    3 user levels: administrator, operator, and user
  • Security
    Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.3, host authentication (MAC address)
  • Network Storage
    NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR),
    Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
  • Client
    iVMS-4200,Hik-Connect,Hik-Central
  • Web Browser
    Plug-in required live view: IE 10+, IE 11,
    Plug-in free live view: Chrome 57.0+, Firefox 52.0+,
    Local service: Chrome 57.0+, Firefox 52.0+
  • Image
  • Image Parameters Switch
    Yes
  • Image Settings
    Rotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser
  • Day/Night Switch
    Day,Night,Auto,Schedule
  • Wide Dynamic Range (WDR)
    120 dB
  • SNR
    ≥ 52 dB
  • Image Enhancement
    BLC,HLC,3D DNR
  • Privacy Mask
    Yes
  • Interface
  • Ethernet Interface
    1 RJ45 10 M/100 M self-adaptive Ethernet port
  • On-Board Storage

    Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 256 GB
  • Built-in Speaker
    Max. power consumption: 2 W, max. sound pressure level: 10 cm: 97 dB.
  • Built-in Microphone
    Yes
  • Alarm
    1 input(s), 1 output(s) (max. 24 VDC/24 VAC, 1 A)
  • Audio
    1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium,
    1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
  • Reset Key
    Yes
  • Event
  • Basic Event
    Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception
  • Smart Event
    Line crossing detection, intrusion detection, region entrance detection, region exiting detection (support alarm triggered by specified target types (human and vehicle)),
    Scene change detection
  • Linkage
    Upload to FTP/NAS/memory card,notify surveillance center,send email,trigger alarm output,trigger recording,trigger capture,audible warning,white light flashing
  • Deep Learning Function
  • Face Capture
    Yes
  • General
  • Power
    12 VDC ± 25%, 0.88 A, max. 10.6 W,Ø5.5 mm coaxial power plug,reverse polarity protection,
    PoE: 802.3af, Class 3, 36 V to 57 V, 0.34 A to 0.21 A, max. 12 W
  • Material
    Front cover: metal, back cover: metal
  • Dimension
    289 mm × 93.1 mm × 91.2 mm (11.4″ × 3.7″ × 3.6″)
  • Package Dimension
    386 mm × 156 mm × 155 mm (15.2″ × 6.1″ × 6.1″)
  • Weight
    Approx. 1195 g (2.6 lb.)
  • With Package Weight
    Approx. 1704 g (3.8 lb.)
  • Storage Conditions
    -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
  • Startup and Operating Conditions
    -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
  • Language

    33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
  • General Function
    Heartbeat,anti-flicker,mirror,flash log,password reset via email,pixel counter
  • Flashing Light
    Yes
  • Approval
  • EMC
    FCC: 47 CFR Part 15, Subpart B,
    CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014,
    KC: KN32: 2015, KN35: 2015
  • Safety
    UL: UL 62368-1,
    CB: IEC 62368-1: 2014+A11,
    CE-LVD: EN 62368-1: 2014/A11: 2017,
    LOA: IEC/EN 60950-1
  • Environment
    CE-RoHS: 2011/65/EU,
    WEEE: 2012/19/EU,
    Reach: Regulation (EC) No 1907/2006
  • Protection
    IP67: IEC 60529-2013



DS-2CD2T26G2-ISU/SL (C)
