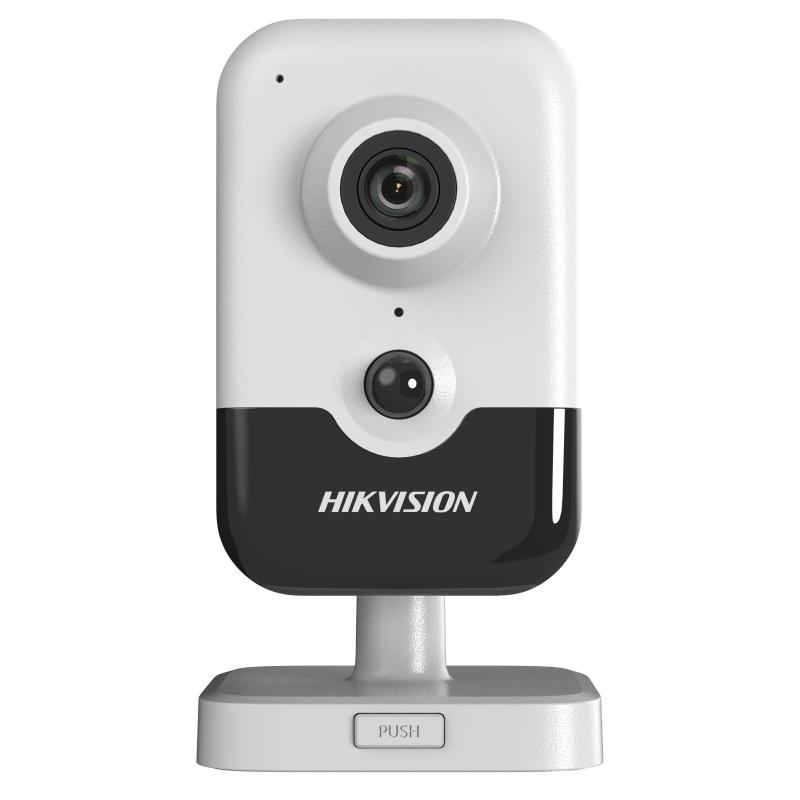

CAMERA HIKVISION DS-2CD2483G2-I
8 MP AcuSense Built-in Mic Fixed Cube Network Camera
- High quality imaging with 8 MP resolution
- Clear imaging against strong backlight due to 120 dB WDR technology
- Efficient H.265+ compression technology
- Focus on human and vehicle classification based on deep learning
- Provide real-time security via built-in two-way audio
- Detect human body through passive infrared which is sensitive to body temperature (PIR)
Available models:
DS-2CD2483G2-I(2.8mm)
DS-2CD2483G2-I(4mm)
- Camera
- Image Sensor
1/2.8″ Progressive Scan CMOS - Min. Illumination
Color: 0.008 Lux @ (F2.0, AGC ON), B/W: 0 Lux with IR - Shutter Speed
1/3 s to 1/100,000 s - Slow Shutter
Yes - Wide Dynamic Range
120 dB - Day & Night
IR cut filter - Angle Adjustment
Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°
- Lens
- Focal Length & FOV
2.8 mm, horizontal FOV 107.8°, vertical FOV 57.9°, diagonal FOV 126.7°
4 mm, horizontal FOV 82.8°, vertical FOV 45.1°, diagonal FOV 98° - Aperture
F2.0 - Lens Mount
M12
- DORI
- DORI
2.8 mm: D: 85.5 m, O: 33.9 m, R: 17.1 m, I: 8.6 m
4 mm: D: 110.3 m, O: 43.8 m, R: 22.1 m, I: 11.0 m
- Illuminator
- IR Range
Up to 10 m - Wavelength
850 nm - Smart Supplement Light
Yes
- Video
- Max. Resolution
3840 × 2160
- Main Stream
50 Hz: 12.5 fps (3840 × 2160, 3200 × 1800)
25 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
60 Hz: 15 fps (3840 × 2160, 3200 × 1800)
30 fps (2688 × 1520, 1920 × 1080, 1280 × 720) - Sub Stream
50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)
60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360) - Third Stream
50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) - Video Compression
Main stream: H.265/H.265+
Sub-stream: H.265/MJPEG
Third stream: H.265 - Video Bit Rate
32 Kbps to 16 Mbps - H.265 Type
Main Profile - H.265+
Main stream supports - Bit Rate Control
CBR/VBR - Scalable Video Coding (SVC)
Yes
- Region of Interest (ROI)
1 fixed region for main stream and sub-stream
- Audio
- Environment Noise Filtering
Yes - Audio Sampling Rate
8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz - Audio Compression
G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC - Audio Bit Rate
64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/16-64 Kbps (AAC-LC)/32-192 Kbps (MP2L2)/8-320 Kbps (MP3)
- Network
- Simultaneous Live View
Up to 6 channels - API
Open Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK - Protocols
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets - User/Host
Up to 32 users. 3 user levels: administrator, operator and user - Security
Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface - Network Storage
NAS (NFS, SMB/CIFS), auto network replenishment (ANR) - Client
iVMS-4200, Hik-Connect, Hik-Central - Web Browser
Plug-in required live view: IE 10, IE 11
Plug-in free live view : Chrome 57.0+, Firefox 52.0+
Local service: Chrome 57.0+, Firefox 52.0+
- Image
- Day/Night Switch
Day, Night, Auto, Schedule - Image Enhancement
BLC, HLC, 3D DNR - Image Parameters Switch
Yes - Image Settings
Mirror, privacy mask, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
- Transducer
- PIR Angle
Horizontal: 90°, vertical: 80° - PIR Range
Up to 8 m
- Interface
- Built-in Microphone
Yes - Built-in Speaker
Power: 1 W. Max. sound pressure level: 10 cm: 91 dB. - On-board Storage
Built-in memory card slot, support microSD/SDHC/SDXC card, up to 512 GB - Hardware Reset
Yes - Communication Interface
1 RJ45 10 M/100 M self-adaptive Ethernet port
- Event
- Basic Event
Motion detection (human and vehicle targets classification), video tampering alarm, exception - Face Detection
Yes
- Deep Learning Function
- Perimeter Protection
Line crossing detection, intrusion detection
Supports human and vehicle targets classification
- General
- Linkage Method
Upload to FTP/memory card/NAS, notify surveillance center, trigger recording, trigger capture, send email, audible warning - Web Client Language
33 languages
English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian - General Function
Anti-flicker, heartbeat, password reset via email, pixel counter - Storage Conditions
-10 °C to 40 °C (14 °F to 104 °F). Humidity 95% or less (non-condensing) - Startup and Operating Conditions
-10 °C to 40 °C (14 °F to 104 °F). Humidity 95% or less (non-condensing) - Power Supply
12 VDC ± 25%
PoE: 802.3af, Class 3 - Power Consumption and Current
12 VDC, 0.5 A, max. 5.9 W
PoE (802.3af, 36 V to 57 V), 0.13 A to 0.2 A, max. 6.9 W - Power Interface
Ø5.5 mm coaxial power plug - Camera Material
Plastic - Camera Dimension
102.9 mm × 65.2 mm × 32.6 mm (4.1″ × 2.6″ × 1.3″) - Package Dimension
150 mm × 125 mm × 99 mm (5.9″ × 4.9″ × 3.9″) - Camera Weight
Approx. 120 g (0.3 lb.) - With Package Weight
Approx. 340 g (0.7 lb.)
- Approval
- EMC
FCC SDoC (47 CFR Part 15, Subpart B);
CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014);
KC (KN 32: 2015, KN 35: 2015) - Safety
UL (UL 60950-1);
CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014);
CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014) - Environment
CE-RoHS (2011/65/EU)
WEEE (2012/19/EU)
Reach (Regulation (EC) No 1907/2006)
Data Sheet
