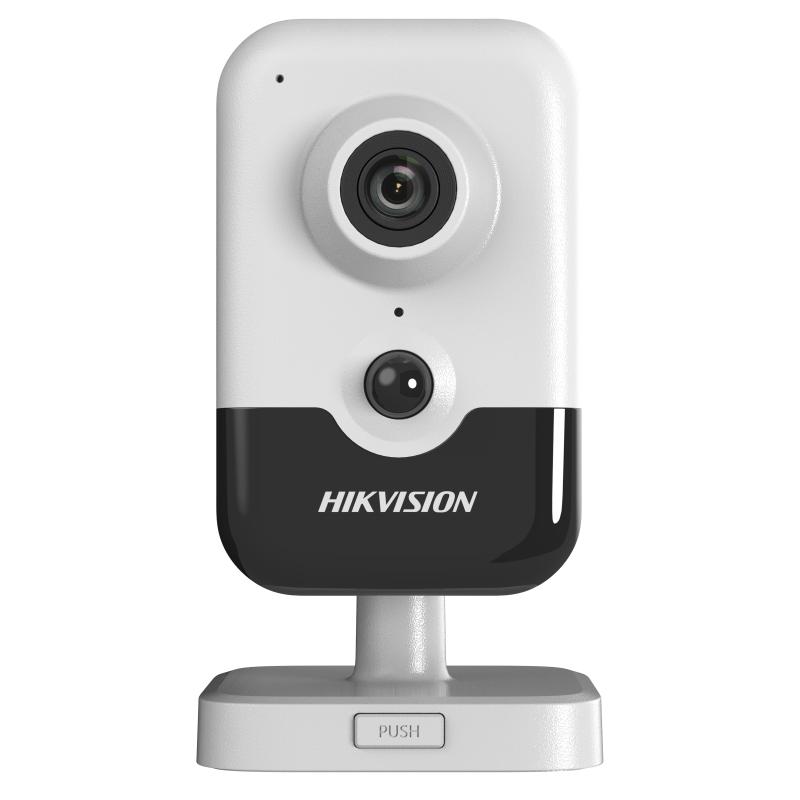

CAMERA HIKVISION DS-2CD2426G2-I
2 MP AcuSense Fixed Cube Network Camera
- High quality imaging with 2 MP resolution
- Excellent low-light performance with powered by DarkFighter technology
- Clear imaging against strong backlight due to 120 dB WDR technology
- Efficient H.265+ compression technology
- Focus on human and vehicle classification based on deep learning
- Provide real-time security via built-in two-way audio
- Detect human body through passive infrared which is sensitive to body temperature (PIR)
Available models:
DS-2CD2426G2-I(2.8mm)(C)
DS-2CD2426G2-I(4mm)(C)
- Camera
- Image Sensor
1/2.8″ Progressive Scan CMOS - Max. Resolution
1920 × 1080 - Min. Illumination
Color: 0.002 Lux @ (F1.4, AGC ON), B/W: 0 Lux with IR - Shutter Time
1/3 s to 1/100,000 s - Day & Night
IR cut filter - Angle Adjustment
Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°
- Lens
- Focal Length & FOV
2.8 mm, horizontal FOV 107.1°, vertical FOV 56.9°, diagonal FOV 128.5°
4 mm, horizontal FOV 86.2°, vertical FOV 46.7°, diagonal FOV 101.9° - Aperture
F1.4 - Lens Mount
M12
- DORI
- DORI
2.8 mm: D: 44.3 m, O: 17.6 m, R: 8.9 m, I: 4.4 m
4 mm: D: 53.4 m, O: 21.2 m, R: 10.7 m, I: 5.3 m
- Illuminator
- Supplement Light Type
IR - Supplement Light Range
Up to 10 m - IR Wavelength
850 nm - Smart Supplement Light
Yes
- Video
- Main Stream
50 Hz: 25 fps (1920 × 1080, 1280 × 720)
60 Hz: 30 fps (1920 × 1080, 1280 × 720) - Sub-Stream
50 Hz: 25 fps (640 × 480, 640 × 360)
60 Hz: 30 fps (640 × 480, 640 × 360) - Third Stream
50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) - Video Compression
Main stream: H.265/H.264/H.264+/H.265+
Sub-stream: H.265/H.264/MJPEG
Third stream: H.265/H.264 - Video Bit Rate
32 Kbps to 8 Mbps - H.264 Type
Baseline Profile/Main Profile/High Profile - H.265 Type
Main Profile - Bit Rate Control
CBR/VBR - Scalable Video Coding (SVC)
Yes - Region of Interest (ROI)
1 fixed region for main stream and sub-stream
- Audio
- Environment Noise Filtering
Yes - Audio Sampling Rate
8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz - Audio Compression
G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC - Audio Bit Rate
64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
- Network
- Simultaneous Live View
Up to 6 channels - API
Open Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK, ISUP - Protocols
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets - User/Host
Up to 32 users
3 user levels: administrator, operator, and user - Security
Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface - Network Storage
NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR),
Together with high-end Hikvision memory card, memory card encryption and health detection are supported. - Client
iVMS-4200, Hik-Connect, Hik-Central - Web Browser
Plug-in required live view: IE 10, IE 11,
Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+,
Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+
- Image
- Wide Dynamic Range (WDR)
120 dB - Privacy Mask
4 programmable polygon privacy masks - Day/Night Switch
Day, Night, Auto, Schedule - Image Enhancement
BLC, HLC, 3D DNR - Image Parameters Switch
Yes - Image Settings
Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
- Transducer
- Detection Angle
Horizontal: 90°, vertical: 80° - Detection Range
Up to 8 m - Transducer Type
PIR
- Interface
- Built-in Microphone
Yes - Built-in Speaker
Power: 1 W. Max. sound pressure level: 10 cm: 91 dB. - On-Board Storage
Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB - Reset Key
Yes - Ethernet Interface
1 RJ45 10 M/100 M self-adaptive Ethernet port
- Event
- Basic Event
Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception - Smart Event
Scene change detection - Linkage
Upload to FTP/NAS/memory card, notify surveillance center, trigger recording, trigger capture, send email, audible warning
- Deep Learning Function
- Face Capture
Yes - Perimeter Protection
Line crossing, intrusion, region entrance, region exiting
Support alarm triggering by specified target types (human and vehicle)
- General
- Power
12 VDC ± 25%, 0.50 A, max. 6 W, Ø5.5 mm coaxial power plug
PoE: IEEE 802.3af, Class 3, 36 V to 57 V, 0.2 A to 0.13 A, max. 7 W - Language
33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian - General Function
Heartbeat, mirror, password reset via email, pixel counter, anti-banding - Storage Conditions
-10 °C to 40 °C (14 °F to 104 °F). Humidity 95% or less (non-condensing) - Startup and Operating Conditions
-10 °C to 40 °C (14 °F to 104 °F). Humidity 95% or less (non-condensing) - Material
Plastic - Dimension
102.9 mm × 65.2 mm × 32.6 mm (4.1″ × 2.6″ × 1.3″) - Package Dimension
150 mm × 125 mm × 99 mm (5.9″ × 4.9″ × 3.9″) - Weight
Approx. 120 g (0.3 lb.) - With Package Weight
Approx. 430 g (0.9 lb.)
- Approval
- EMC
FCC SDoC (47 CFR Part 15, Subpart B);
CE-EMC (EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3:2013+A1:2019, EN 50130-4: 2011 +A1: 2014);
KC (KN 32: 2015, KN 35: 2015) - Safety
UL (UL 62368-1);
CB (IEC 62368-1:2014+A11);
CE-LVD (EN 62368-1:2014/A11:2017) - Environment
CE-RoHS (2011/65/EU);
WEEE (2012/19/EU);
Reach (Regulation (EC) No 1907/2006)
