HIKVISION, Network Cameras

DS-2CD2026G2-I(U)

Đăng vào bởi admin
DS-2CD2026G2-I(U)

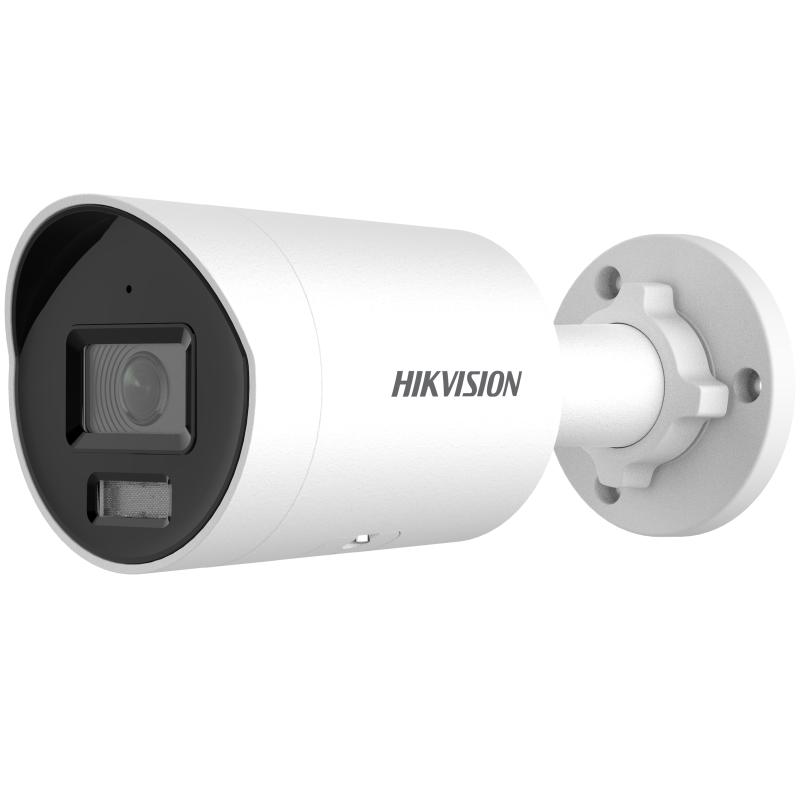

CAMERA HIKVISION DS-2CD2026G2-I(U)



2 MP AcuSense Fixed Mini Bullet Network Camera



  • High quality imaging with 2 MP resolution
  • Excellent low-light performance with powered-by-DarkFighter technology
  • Efficient H.265+ compression technology
  • Clear imaging against strong back light due to 120 dB true WDR technology
  • Focus on human and vehicle classification based on deep learning
  • -U: Built-in microphone for real-time auto security
  • Water and dust resistant (IP67)



  • Camera
  • Image Sensor
    1/2.8″ Progressive Scan CMOS
  • Max. Resolution
    1920 × 1080
  • Min. Illumination
    Color: 0.002 Lux @ (F1.4, AGC ON),B/W: 0 Lux with IR
  • Shutter Time
    1/3 s to 1/100,000 s
  • Day & Night
    IR cut filter
  • Angle Adjustment
    Pan: 0° to 360°,tilt: 0° to 90°,rotate: 0° to 360°
  • Lens
  • Lens Type
    Fixed focal lens, 2.8, 4, and 6 mm optional
  • Focal Length & FOV
    2.8 mm, horizontal FOV 107°, vertical FOV 57°, diagonal FOV 129°
    4 mm, horizontal FOV 86°, vertical FOV 47°, diagonal FOV 102°
    6 mm, horizontal FOV 55°, vertical FOV 29°, diagonal FOV 65°
  • Lens Mount
    M12
  • Iris Type
    Fixed
  • Aperture
    F1.4
  • Depth of Field
    2.8 mm: 1.1 m to ∞
    4 mm: 1.2 m to ∞
    6 mm: 3 m to ∞
  • DORI
  • DORI
    2.8 mm: D: 44 m, O: 17 m, R: 9 m, I: 4 m
    4 mm: D: 53 m, O: 21 m, R: 11 m, I: 5 m
    6 mm: D: 87 m, O: 34 m, R: 17 m, I: 9 m
  • Illuminator
  • Supplement Light Type
    IR
  • Supplement Light Range
    Up to 40 m
  • Smart Supplement Light
    Yes
  • IR Wavelength
    850 nm
  • Video
  • Main Stream
    50 Hz: 25 fps (1920 × 1080, 1280 × 720)
    60 Hz: 30 fps (1920 × 1080, 1280 × 720)
  • Sub-Stream
    50 Hz: 25 fps (640 × 480, 640 × 360)
    60 Hz: 30 fps (640 × 480, 640 × 360)
  • Third Stream
    50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
    60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360),
    *Third stream is supported under certain settings.
  • Video Compression
    Main stream: H.265/H.264/H.264+/H.265+
    Sub-stream: H.265/H.264/MJPEG
    Third stream: H.265/H.264
  • Video Bit Rate
    32 Kbps to 8 Mbps
  • H.264 Type
    Baseline Profile,Main Profile,High Profile
  • H.265 Type
    Main Profile
  • Bit Rate Control
    CBR,VBR
  • Scalable Video Coding (SVC)
    H.264 and H.265 encoding
  • Region of Interest (ROI)
    1 fixed region(s) for main stream and sub-stream
  • Audio
  • Audio Type
    -U: mono sound
  • Audio Compression
    -U: G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
  • Audio Bit Rate
    -U: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
  • Audio Sampling Rate
    -U: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
  • Environment Noise Filtering
    -U: Yes
  • Network
  • Protocols
    TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets
  • Simultaneous Live View
    Up to 6 channels
  • API
    Open Network Video Interface (Profile S, Profile G, Profile T),ISAPI,SDK,ISUP
  • Smooth Streaming
    Yes
  • User/Host
    Up to 32 users
    3 user levels: administrator, operator, and user
  • Security
    Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.3, host authentication (MAC address)
  • Network Storage
    NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR),
    Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
  • Client
    iVMS-4200,Hik-Connect,Hik-Central
  • Web Browser
    Plug-in required live view: IE 10, IE 11,
    Plug-in free live view: Chrome 57.0+, Firefox 52.0+,
    Local service: Chrome 57.0+, Firefox 52.0+
  • Image
  • Image Parameters Switch
    Yes
  • Image Settings
    Rotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser
  • Day/Night Switch
    Day,Night,Auto,Schedule
  • Wide Dynamic Range (WDR)
    120 dB
  • SNR
    ≥ 52 dB
  • Image Enhancement
    BLC,HLC,3D DNR
  • Privacy Mask
    Yes
  • Interface
  • Ethernet Interface
    1 RJ45 10 M/100 M self-adaptive Ethernet port
  • On-Board Storage
    Built-in memory card slot, support microSD card, up to 256 GB
  • Built-in Microphone
    -U: Yes
  • Reset Key
    Yes
  • Event
  • Basic Event
    Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception
  • Smart Event
    Line crossing detection, intrusion detection, region entrance detection, region exiting detection (support alarm triggered by specified target types (human and vehicle)), scene change detection
  • Linkage
    Upload to FTP/NAS/memory card,notify surveillance center,send email,trigger recording,trigger capture
  • Deep Learning Function
  • Face Capture
    Yes
  • General
  • Power
    12 VDC ± 25%, 0.5 A, max. 6 W,Ø5.5 mm coaxial power plug,reverse polarity protection,
    PoE: 802.3af, Class 3, 36 V to 57 V, 0.2 A to 0.13 A, max. 7 W
  • Material
    Metal
  • Dimension
    Ø74.4 mm × 179.2 mm (Ø2.9″ × 7.1″)
  • Package Dimension
    216 mm × 121 mm × 118 mm (8.5″ × 4.8″ × 4.6″)
  • Weight
    Approx. 500 g (1.1 lb.)
  • With Package Weight
    Approx. 750 g (1.7 lb.)
  • Storage Conditions
    -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
  • Startup and Operating Conditions
    -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
  • Language
    33 languages
    English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
  • General Function
    Anti-flicker, heartbeat, mirror, privacy mask, flash log, password reset via email, pixel counter
  • Approval
  • EMC
    FCC: 47 CFR Part 15, Subpart B,
    CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014,
    KC: KN32: 2015, KN35: 2015
  • Safety
    UL: UL 62368-1,
    CB: IEC 62368-1: 2014+A11,
    CE-LVD: EN 62368-1: 2014/A11: 2017,
    LOA: IEC/EN 60950-1
  • Environment
    CE-RoHS: 2011/65/EU,
    WEEE: 2012/19/EU,
    Reach: Regulation (EC) No 1907/2006
  • Protection
    IP67: IEC 60529-2013
