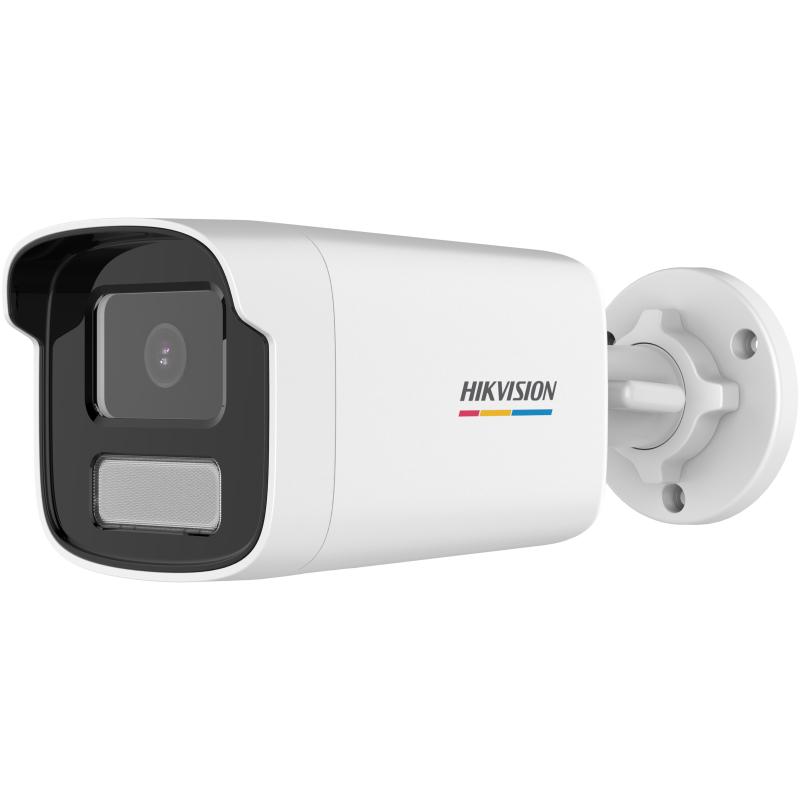

2 MP ColorVu Fixed Bullet Network Camera

Available models:

DS-2CD1T27G0-LUF(4mm)(C)

DS-2CD1T27G0-LUF(6mm)(C)

Lens
Lens TypeFixed focal lens, 4 and 6 mm optional
Focal Length & FOV
4 mm, horizontal FOV 83.6°, vertical FOV 46.2°, diagonal FOV 97.5°
6 mm, horizontal FOV 54.6°, vertical FOV 29.9°, diagonal FOV 63.3°
Lens MountM12
Iris TypeFixed
ApertureF1.0

DORI
DORI
4 mm, D: 53.4 m, O: 21.2 m, R: 10.7 m, I: 5.3 m
6 mm, D: 82.8 m, O: 32.8 m, R: 16.6 m, I: 8.3 m

Video
Main Stream
50 Hz: 25 fps (1920 × 1080, 1280 × 720)
60 Hz: 30 fps (1920 × 1080, 1280 × 720)
Sub-Stream
50 Hz: 25 fps (640 × 480, 640 × 360)
60 Hz: 30 fps (640 × 480, 640 × 360)
Video Compression
Main stream: H.265+/H.64+/H.265/H.264
Sub-stream: H.265/H.264/MJPEG
Video Bit Rate32 Kbps to 8 Mbps
H.264 TypeBaseline Profile/Main Profile/High Profile
H.265 TypeMain Profile
Region of Interest (ROI)1 fixed region for main stream

Audio
Audio Compression-UF: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC
Audio Bit Rate-UF: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC)
Audio Sampling Rate-UF: 8 kHz/16 kHz
Environment Noise Filtering-UF: Yes

Network
ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP™, SMTP, IGMP, QoS, IPv6, Bonjour, IPv4, UDP, SSL/TLS
Simultaneous Live ViewUp to 6 channels
APIOpen Network Video Interface, ISAPI
User/HostUp to 32 users. 3 levels: administrator, operator and user
ClientiVMS-4200, Hik-Connect
Web Browser
Plug-in required live view: IE 10+
Plug-in free live view: Chrome 57.0+, Firefox 52.0+
Local service: Chrome 57.0+, Firefox 52.0+

Image SettingsSaturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser.
Day/Night SwitchDay, Night, Auto, Schedule
Wide Dynamic Range (WDR)Digital WDR
Image EnhancementBLC, 3D DNR

Interface
Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
On-Board Storage-UF: Built-in memory card slot, support microSD card, up to 256 GB
Built-in Microphone-UF: Yes
Hardware Reset-UF: Yes

Event
Basic EventMotion detection, video tampering alarm, exception
LinkageUpload to FTP/memory card (-UF), notify surveillance center, send email, trigger recording (-UF), trigger capture

General
Power
12 VDC ± 25%, 0.4 A, max. 5 W, Ø5.5 mm coaxial power plug
PoE: 802.3af, Class 3, 36 V to 57 V, 0.2 A to 0.15 A, max. 6.5 W
Camera MaterialFront cover: metal, body: plastic, bracket: metal
Camera Dimension83.7 mm × 80.7 mm × 205.6 mm (3.3″ × 3.2″× 8.1″)
Package Dimension260 mm × 125 mm × 125 mm (10.2″ × 4.9″ × 4.9″)
Camera WeightApprox. 420 g (0.9 lb.)
With Package WeightApprox. 668 g (1.5 lb.)
Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity: 95% or less (non-condensing)
Startup and Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity: 95% or less (non-condensing)
Web Client LanguageEnglish, Ukrainian
General FunctionAnti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter

Approval
EMC
FCC-SDoC: 47 CFR Part 15, Subpart B;
CE-EMC: EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011 +A1: 2014;
KC: KN 32: 2015, KN 35: 2015
Safety
UL: UL 62368-1;
CB: IEC 62368-1: 2014+A11;
CE-LVD: EN 62368-1: 2014/A11: 2017;
BIS: IS 13252 (Part 1): 2010/ IEC 60950-1: 2005
Environment
CE-RoHS: 2011/65/EU;
WEEE: 2012/19/EU;
Reach: Regulation (EC) No 1907/2006
ProtectionIP67: IEC 60529-2013
