256-ch 4U 4K DeepinMind Super NVR

Intelligent analytics based on deep learning algorithm
Up to 168-ch perimeter protection
Up to 64-ch facial recognition for video stream, or up to 128-ch facial recognition for face picture
Up to 96-ch video structuralization
Up to 80-ch throwing objects from building
Up to 256 channel IP cameras can be connected
24 HDD can be used for continuous video recording
Up to 20-ch 1080p decoding capability
Up to 768Mbps incoming and 512Mbps outgoing bandwidth
Redundant power supply
7-inch LCD touch-screen

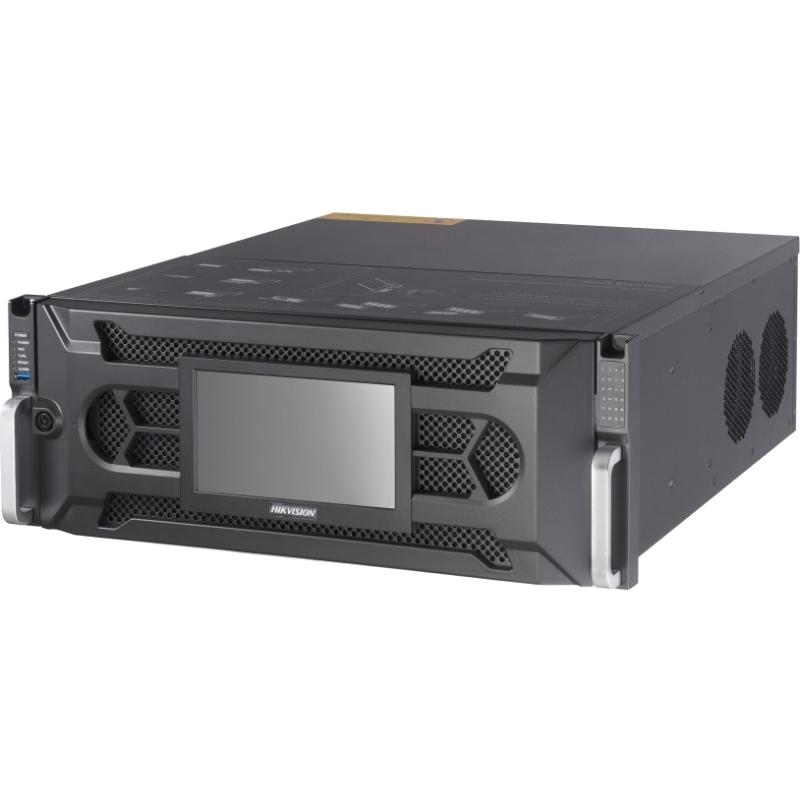

Available models: iDS-96256NXI-I24(C)

Facial Recognition
Facial Detection and AnalyticsFace picture comparison, human face capture, face picture search
Face Picture LibraryUp to 64 face picture libraries, with up to 500,000 face pictures in total (each picture ≤ 6 MB, total capacity ≤ 20 GB)
Facial Detection and Analytics Performance64-ch 2 MP human face capture (HD network camera, up to 8 MP, H.264/H.265)
Face Picture Comparison128-ch face picture comparison alarm

Perimeter Protection
Human/Vehicle AnalysisUp to 168-ch 2 MP (H.264/H.265) video analysis for human and vehicle recognition to reduce false alarm

Video and Audio
IP Video Input256-ch
Up to 12 MP resolution
*: 32 MP and 24 MP is only available for channel 1 to 4 when ultra HD resolution mode is enabled.
HDMI 1 Output4K (4096 × 2160)/30Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
HDMI 2 Output4K (4096 × 2160)/30Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
VGA Output1-ch, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
LCD Output7-inch LCD
Incoming Bandwidth768 Mbps
Outgoing Bandwidth512 Mbps
Audio Output1-ch, RCA (2.0 Vp-p, 1 KΩ)
Audio Input1-ch, RCA (2.0 Vp-p, 1 KΩ)
Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 KΩ, using the audio input)

Decoding
Decoding FormatH.265+/H.265/H.264+/H.264/MJPEG/MPEG4
Decoding Capability32 MP/24 MP/12 MP/8 MP/7 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p /VGA/4CIF/DCIF/2CIF/CIF/QCIF
*: 32 MP and 24 MP is only available for channel 1 to 4 when ultra HD resolution mode is enabled.
Synchronous playback16-ch
Recording Resolution1-ch@32 MP (30 fps)/5-ch@8 MP (30 fps)/10-ch@4 MP (30 fps)/20-ch@1080p (30 fps)/40-ch@720p (30 fps)
*: The length or width of camera resolution (each track) cannot exceed 4096 pixels.
Stream TypeVideo, Video & Audio
Dual-streamSupport
Audio CompressionG.711ulaw/G.711alaw/G.722/G.726/MP2L2

Network
Network ProtocolTCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS
Remote Connection256
Network Interface4, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface

Auxiliary Interface
SATA24 SATA interfaces supporting hot-plug
eSATA1 eSATA interface
CapacityUp to 10 TB capacity for each disk
Fiber Optic Interface4, gigabit Ethernet SFP interface (on extension board)
Serial InterfaceRS-232; RS-485 (full-duplex); Keyboard
USB InterfaceFront panel: 1 × USB 2.0; Rear panel: 2 × USB 3.0
Alarm In/Out48/24 (main board: 16/8; extension board: 32/16)
Extension Board1; With 4 × gigabit Ethernet SFP interfaces, 8 × RS-485 (full-duplex), 32 alarm inputs, and 16 alarm outputs
mini SAS2 miniSAS interfaces
