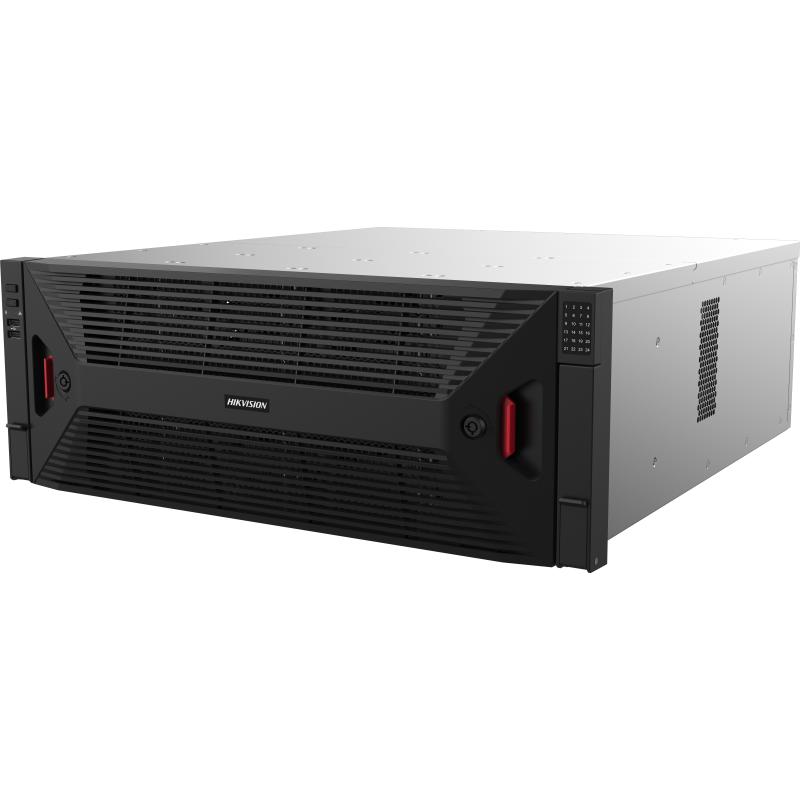

Network Video Recorder HIKVISION iDS-96128NXI-H24R

128-ch 4U 8K DeepinMind Super NVR

• Up to 128-ch IP camera inputs
• Up to 512 Mbps incoming bandwidth and 512 Mbps outgoing bandwidth
• H.265+/H.265/H.264+/H.264 video formats
• RAID 0, 1, 5, 6, 10 and N+M hot spare for even more reliable data storage, effectively avoids data loss risks
• Various AI functions, including facial recognition, perimeter protection powered by large model, video structuralization, and AcuSearch
• Intelligent analytics based on deep learning algorithm
• All channels perimeter protection powered by large model
• Up to 72-ch facial recognition for video stream, or up to 128-ch facial recognition for face picture
• Up to 54-ch video structuralization
• Up to 36-ch AcuSearch
• Up to 8-ch IP speakers can be connected

• Intelligent Analytics
• AI by NVRFacial recognition, perimeter protection, video structuralization, AcuSearch
• AI by CameraFacial recognition, perimeter protection, video structuralization, motion detection2.0, ANPR, people counting, VCA
• Engine9, each engine can run an intelligent algorithm, engine mode is adjustable

• Facial Recognition
• Facial Detection and AnalyticsFace picture comparison, human face capture, face picture search
• Face AttributesWearing glasses, wearing a mask, facial expression, body temperature
• Face Picture LibraryUp to 64 face picture libraries, up to 500,000 face pictures in list library, up to 300,000 face pictures in stranger library, up to 50,000,000 face pictures in face capture (each picture ≤ 6 MB, total capacity ≤ 40 GB)
• Face Picture Comparison128-ch face picture comparison alarm (24 pictures per second each engine)
• Facial Detection and Analytics PerformanceEach engine supports 8-ch 4 MP or 4-ch 8 MP face capture, 24 face pictures per second

• AcuSearch
• By NVRUp to 36-ch (4-ch for each engine )
• By Camera

  All channels

  *: The camera should enable AcuSearch function

• Perimeter Protection
• By NVR

  Perimeter protection without large model (each engine): 12-ch 2 MP or 8-ch 4 MP or 4-ch 8 MP

  Perimeter protection powered by large model (each engine): 8 images per second

• By CameraPerimeter protection powered by large model with AcuSense cameras: All channels

• Video Structuralization
• Structured Analysis54-ch 2 MP (6-ch for each engine), up to 8 MP

• Video and Audio
• IP Video Input128-ch
• Incoming Bandwidth512 Mbps
• Outgoing Bandwidth512 Mbps
• HDMI 1 Output4K (4096 × 2160)/30 Hz, 4K (3840 × 2160)/30 Hz, 2K (2560 × 1440)/60 Hz, 1920 × 1080/60 Hz
• HDMI 2 Output4K (4096 × 2160)/30 Hz, 4K (3840 × 2160)/30 Hz, 2K (2560 × 1440)/60 Hz, 1920 × 1080/60 Hz
• VGA 1 Output1920 × 1080/60 Hz
• Audio Output1-ch, 3.5mm
• Two-Way Audio1-ch, 3.5mm
• Synchronous Playback16-ch
• Incoming Bandwidth (RAID Mode)512 Mbps
• Outgoing Bandwidth (RAID mode)512 Mbps
• VGA Output1920 × 1080/60 Hz
• Video Output Mode

  Provide 4 groups of video outputs. The video outputs in the same group provide simultaneous output, and the video outputs between each group provide independent output.

  Group 1: HDMI 1/VGA/LCD

  Group 2: HDMI 2

  Group 3: DP 1/V-DP 1

  Group 4: DP 2/V-DP 2

  Note: After enabling DP 1/DP 2, V-DP 1/V-DP 2 would be unavailable.

• Decoding
• Recording Resolution32 MP/24 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
• Decoding FormatH.265+/H.265/H.264+/H.264
• Synchronous Playback16-ch
• Decoding Capability2-ch@32 MP (30 fps)/2-ch@24 MP (30fps)/4-ch@16 MP (30fps)/8-ch@8 MP (30fps)/16-ch@4 MP (30fps)/32-ch@2 MP (30fps)
• Live View Window Division64/36/25/16/9/8/6/4/2/1
• Audio CompressionG.711ulaw/G.711alaw/G.722/G.726/AAC/MP2L2/PCM/MP3

• Network
• Network Interface4, RJ-45 10/100/1000/2500 Mbps self-adaptive Ethernet interface
• Remote Connection256
• Network ProtocolTCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS, ONVIF(Version 2.2), OTAP
• APIONVIF (profile S/G); SDK; ISAPI
• Camera Access ProtocolONVIF(Version 2.5), RTSP

• RAID
• RAID TypeRAID0, RAID1, RAID5, RAID6, RAID10

• Auxiliary Interface
• Serial Interface1 RS-485 (full-duplex), 1 RS-232
• SATA24 SATA interfaces; 3.5-inch HDD
• eSATA1 eSATA interface
• CapacityUp to 20 TB capacity for each disk
• Alarm In/Out16/8
• USB InterfaceFront panel: 2 × USB 2.0; Rear panel: 4 × USB 3.0

• General
• GUI LanguageEnglish, Russian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Turkish, Japanese, Danish, Swedish Language, Norwegian, Finnish, Korean, Traditional Chinese, Thai, Estonian, Vietnamese, Croatian, Slovenian, Serbian, Latvian, Lithuanian, Uzbek, Kazakh, Arabic, Ukrainian, Kyrgyz , Brazilian Portuguese, Indonesian
• Power Supply100 to 240 VAC, 50 to 60 Hz, redundant power supply
• Consumption≤ 200 W (without HDD)
• Working Temperature0 °C to + 50 °C (32 °F to 122 °F)
• Working Humidity10% to 90%
• Dimension (W × D × H)448 × 490 × 173 mm (17.6″ × 19.3″ × 6.8″)
• Weight≤25 kg (without HDD, 55.1 lb.)

• Certification
• Obtained CertificationCE, CB, KC, Rohs, Reach, WEEE, UKCA, LOA
