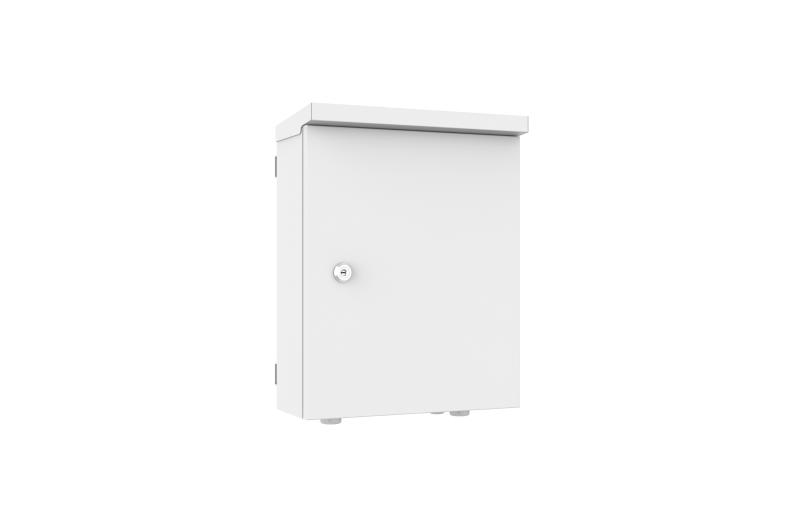

HIKVISION DS-TME200-D/P

Entrance & Exit Controller

• Supports Entrance ＆ Exit management of 4 lanes.
• TCP/IP network communication, with self-adaptive network interface. The communication data is encrypted to ensure information security.
• Supports 4 Wiegand interface for accessing card reader. Wiegand interface supports W26/ W34 and is seamlessly compatible with third-party card reader.
• Massive storage with 50, 000 cards information and 50,000 card swiping records. Supports various card types such as normal/blocklist/Registered
• Supports 4 alarm output interface for controlling up to 4 barrier gates.
• Supports online and offline operating mode.
• Supports time synchronization via NTP, manual or automatic method

• Network
• Interface ProtocolTCP/IP

• Interface
• Relay Output4
• Alarm Input4
• Wiegand4*W26/34
• RS-2321
• RS-4851
• USB1*USB2.0
• Network1*10M/100M self-adaption

• General
• Working Temperature and Humidity-20℃ ~ 50℃

  10% ~ 95%

• Power Supply220V AC
• Power Consumption20 W (5 W without load)
• Dimensions467 × 350 × 190.6 mm (18.39 × 13.78 × 7.5 inch)
• Weight4 kg (4.40 lb.)
• Weight (with Package)5 kg (5.50 lb.)
• Dimensions (with Package)500 x 420 x 290 mm (19.69 × 16.54 × 11.42 inch)
• Operating SystemEmbedded Linux System
