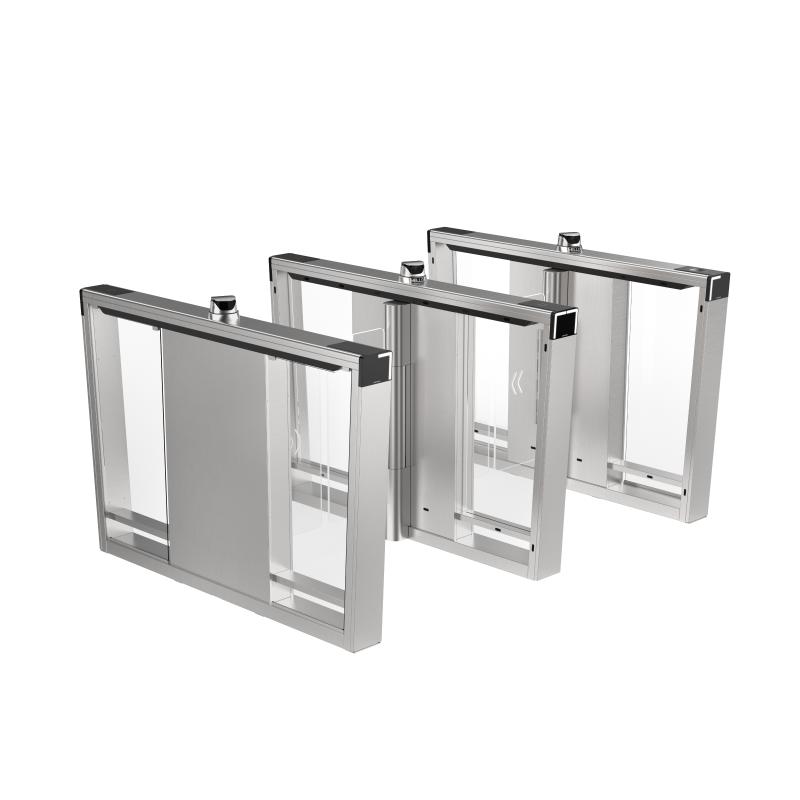

HIKVISION DS-K6B530TX

Smart Pro Swing Barriers

• Support PC & Mobile web configuration and self-diagnosis for maintenance.
• AP mode function for mobile phones (Android) to access more easily by a simple touch via NFC tag.
• Fire linkage: When the fire signal is triggered, the barrier will be open automatically for emergency evacuation.
• Supports built-in face recognition camera module on the top of cover, easy and convenient.
• Anti-passback: Supports cross-device anti-passback function, effectively preventing unauthorized personnel from following in.
• Super capacitor can realize automatic door opening in case of power failure.

• • System
  • MotorServo motor
  • MCBF≥ 12 million times
  • Operating systemLinux
  • ROM8 G
  • RAM1 GB
  • ProcessorA9
  • dToF sensor× 14
  • Network
  • Wired network10/100 Mbps self-adaptive Ethernet
  • Wi-FiSupported, only for AP mode
  • Interface
  • Network interface× 1
  • Alarm output× 4
  • RS-485

    Main: 1

    Sub: 1

  • RS-232

    Main: 1

    Sub: 1

  • Wiegand

    Main: 1

    Sub: 1

  • USB

    Main: 1

    Sub: 1

  • Fire alarm input1
  • Case input

    Main: 1

    Sub: 1

  • Hardware
  • Access controllerSupplied
  • SupercapacitorSupplied
  • Network switchNot supplied
  • Card receiverSupport
  • Expansion screwM12*110mm(4.3”) 4pcs
  • Capacity
  • Face capacity100,000
  • Card capacity200,000
  • Event capacity100,000
  • Authentication
  • QR codeOptional
  • Face recognition distance0.5 m to 2 m
  • Face recognition accuracy rate＞99%
  • Face recognition duration＜200 ms
  • CardEM/DESfire card
  • Card reading frequency13.56 MHz,125 KHz
  • Card reading distance0 to 3 cm
  • Card reading duration＜1 sec
  • Function
  • Configuration via PC WebSupport
  • Configuration via mobile WebSupport
  • Hik-ConnectSupport
  • Multi-factor authenticationSupport
  • Face anti-spoofingSupport
  • Face mask recognitionSupport
  • Built-in face recognitionSupport
  • Communication protocolISAPI
  • KeyfobSupport, 433 MHz/868 MHz, within 50 m
  • General
  • Throughput

    30 to 60 persons per minute

    The actual throughput is affected by the person passing rate and passing method.

  • Lane width550 mm to 1400 mm (21.65″ to 55.12″)
  • Barrier material10 mm acrylic glass
  • Pedestal materialSUS304 stainless steel with the thickness of 1.2 to 1.5 mm (0.05″ to 0.06″)
  • IndicatorLane status indicator, authentication indicator, barrier light, etc.
  • Power consumption

    Standby: 70 W

    Working: 120 W

    Peak: 160 W

  • Working temperature-20 °C to 70 °C (-4 °F to 158 °F)
  • Working humidity10% to 95% (No Condensing)
  • Protective levelIPX4
  • Dimensions

    With packaging: 1600 mm × 400 mm × 1283 mm (63.0″ × 15.7\” × 50.5\”)

    Without packaging: 1500 mm × 130 mm × 1000 mm (59.1 × 5.1\” × 39.4\”)”

  • WeightNet: Left: 62.78 kg (138.41 lb) Right: 64.78 kg(142.8 lb) Gross: Left: 101.18 kg (223.1 lb) Right: 103.18 kg (227.5 lb)
  • Power supply method100-240V～,50Hz/60Hz
  • LanguageEnglish, Japanese, Thai, Indonesian, Russian, Spain (European), Spain (Latin America), Portugal (Brazil), Arabic, Kazakh, Uzbek, Ukraine
  • Interconnecting cable length5.5 m
  • USB configuration toolSupport
  • Configuration
  • Module selectionNO
  • BaseYES
  • Barrier materialAcrylic glass
  • Application environmentIndoor and Outdoor
  • Recommended width650
  • Base modelDS-K3B530-BASE
  • Product typeSwing barrier
  • Built-in face recognitionYES
