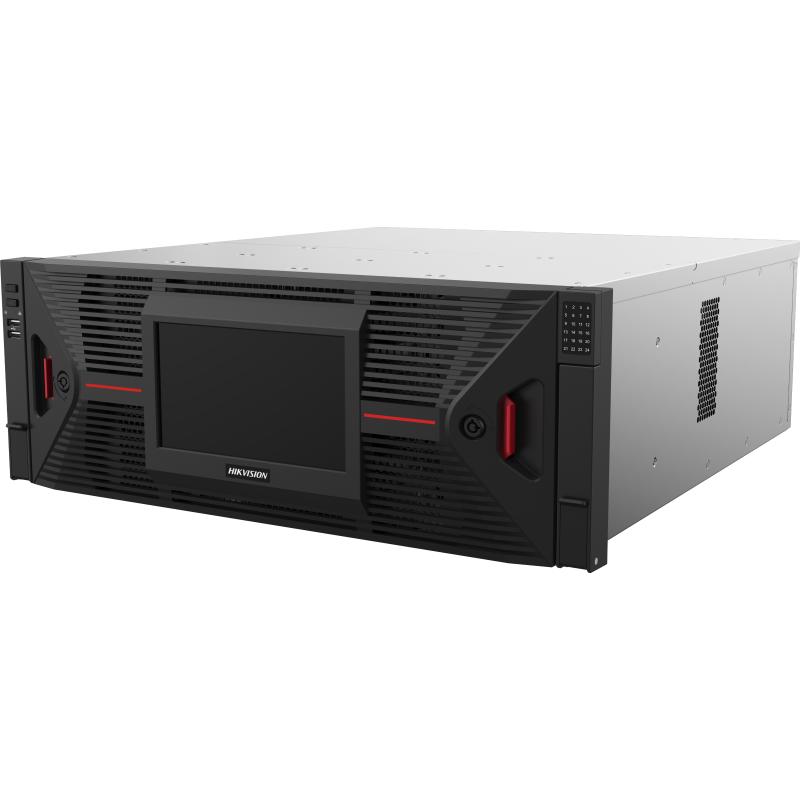

Network Video Recorder HIKVISION DS-96256NI-H30R/LCD

256-ch 4U 8K Super NVR

• Up to 256-ch IP camera inputs
• Up to 48-ch@1080p decoding capacity
• Up to 1.25Gbps incoming bandwidth and 1.25Gbps outgoing bandwidth
• Supports RAID 0, 1, 5, 6, 10 and N+1 hot spare for even more reliable data storage, effectively avoids data loss risks
• Up to 8-ch IP speakers can be connected

• Video and Audio
• IP Video Input256-ch
• Incoming Bandwidth1280 Mbps
• Outgoing Bandwidth1280 Mbps
• Incoming Bandwidth (RAID Mode)1280Mbps
• Outgoing Bandwidth (RAID mode)1280 Mbps
• HDMI 1 Output4K (4096 × 2160)/30 Hz, 4K (3840 × 2160)/30 Hz, 2K (2560 × 1440)/60 Hz, 1920 × 1080/60 Hz
• HDMI 2 Output4K (3840 × 2160)/60 Hz, 4K (3840 × 2160)/30 Hz, 2K (2560 × 1440)/60 Hz, 1920 × 1080/60 Hz
• VGA Output1920 × 1080/60 Hz
• DP 18K (7680 × 4320)/30Hz, 4K (4096×2160)/30 Hz, 4K (3840×2160)/60 Hz, 4K (3840 × 2160)/30 Hz, 2K (2560 × 1440)/60 Hz, 1920 × 1080/60Hz
• DP 28K (7680 × 4320)/30Hz, 4K (4096×2160)/30 Hz, 4K (3840×2160)/60 Hz, 4K (3840 × 2160)/30 Hz, 2K (2560 × 1440)/60 Hz, 1920 × 1080/60Hz
• Video Output ModeProvide 4 groups of video outputs. The video outputs in the same group provide simultaneous output, and the video outputs between each group provide independent output.

  Group 1: HDMI 1/VGA/LCD

  Group 2: HDMI 2

  Group 3: DP 1

  Group 4: DP 2

• Audio Output1-ch, 3.5mm
• Two-Way Audio1-ch, 3.5mm
• LCD Output7-inch LCD touch display (resolution: 1024 × 600)

• Decoding
• Decoding FormatH.265+/H.265/H.264+/H.264
• Recording Resolution32 MP/24 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
• Synchronous Playback16-ch
• Decoding Capability3-ch@32 MP (30 fps)/3-ch@24 MP (30fps)/6-ch@16 MP (30fps)/12-ch@8 MP (30fps)/24-ch@4 MP (30fps)/48-ch@2 MP (30fps)

  *: The length or width of camera resolution (each track) cannot exceed 4096 pixels.

• Audio CompressionG.711ulaw/G.711alaw/G.722/G.726/AAC/MP2L2/PCM

• Network
• Network Interface4, RJ-45 10/100/1000/2500 Mbps self-adaptive Ethernet interface
• Network ProtocolTCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS
• Remote Connection256

• RAID
• RAID TypeRAID0, RAID1, RAID5, RAID6, RAID10

• Auxiliary Interface
• SATA30 SATA interfaces supporting hot-plug
• CapacityUp to 20 TB for each HDD
• Serial Interface1 RS-485 (full-duplex), 1 RS-232
• Alarm In/Out16/4
• USB InterfaceFront panel: 2 × USB 2.0; Rear panel: 4 × USB 3.0
• Fiber Optic Interface4, Gigabit Ethernet interface

• General
• Power Supply100 to 240 VAC, 50 to 60 Hz, redundant power supply
• Consumption≤ 75 W (without HDD)
• Working Temperature0 °C to + 50 °C (32 °F to 122 °F)
• Working Humidity10% to 90%
• Chassis4U chassis
• Dimension (W × D × H)447 × 489 × 173 mm (17.61″ × 19.26″ × 6.82″)
• Weight≤26 kg (without HDD, 57.3 lb.)
