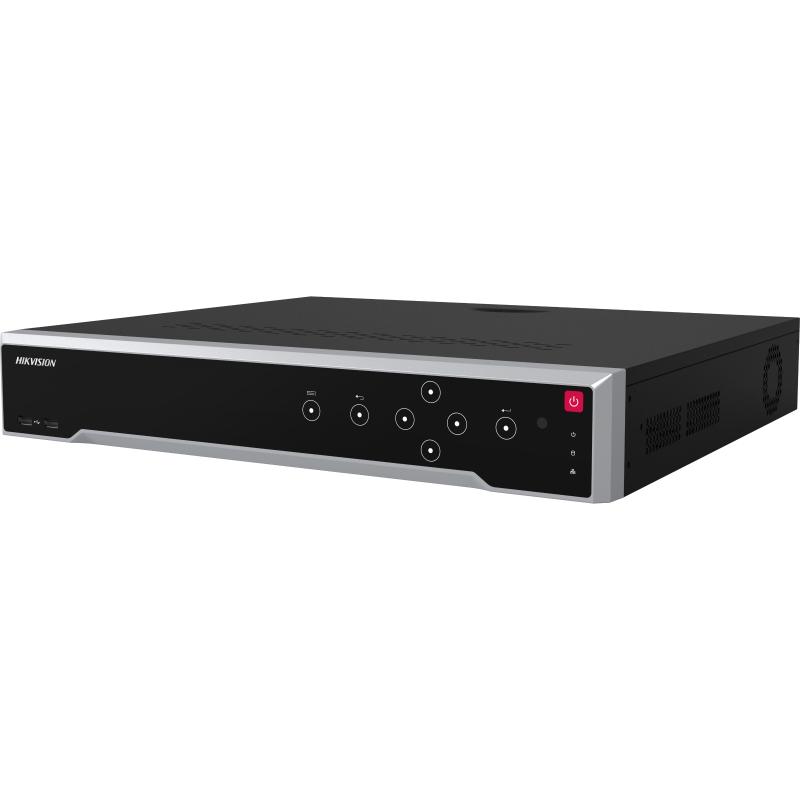

Network Video Recorder HIKVISION DS-7732NI-M4

32-ch 1.5U 8K NVR

• H.265+/H.265/H.264+/H.264 video formats
• Up to 32-ch IP camera inputs
• Up to 32-ch@1080p decoding capacity
• Up to 320 Mbps incoming bandwidth
• Up to 8-ch IP speakers can be connected

• Video and Audio
• IP Video Input32-ch

  Up to 32 MP resolution

  *: After ultra HD resolution mode is enabled, the NVR supports up to 8-ch 32 MP/24 MP IP video inputs.

• Incoming Bandwidth320 Mbps
• Outgoing Bandwidth400 Mbps
• HDMI 1 Output8K (7680 × 4320)/30Hz, 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz
• HDMI 2 Output4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz

  *: When HDMI 1 output resolution is 8K, the maximum HDMI 2 output resolution is 1080p.

• VGA Output1920 × 1080/60Hz
• Video Output ModeHDMI1/VGA simultaneous output, HDMI2/VGA independent output
• CVBS Output1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480
• Audio Output1-ch, RCA (Linear, 1 KΩ)
• Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 KΩ, using the audio input)

• Decoding
• Decoding FormatH.265+/H.265/H.264+/H.264
• Recording Resolution32 MP/24 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA /4CIF/DCIF/ 2CIF/CIF/QCIF

  *: After ultra HD resolution mode is enabled, the NVR supports up to 8-ch 32 MP/24 MP IP video inputs.

• Synchronous Playback16-ch
• Decoding Capability2-ch@32 MP (30 fps)+2-ch@8MP（30fps）/10-ch@8 MP (30 fps)/20-ch@4 MP (30 fps)/40-ch@1080p (30 fps)
• Dual-Stream RecordingSupport
• Stream TypeVideo, Video & Audio
• Audio CompressionG.711ulaw/G.711alaw/G.722/G.726/AAC/MP2L2

• Network
• Remote Connection128
• Network ProtocolTCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS, ONVIF(Version 2.2), OTAP
• Network Interface2 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interfaces
• Camera Access ProtocolONVIF(Version 2.5), RTSP

• RAID
• RAID TypeN/A

• Auxiliary Interface
• eSATA1 eSATA interface
• SATA4 SATA interfaces
• CapacityUp to 16 TB capacity for each disk
• Serial Interface2 RS-485 (half-duplex), 1 RS-232
• Alarm In/Out16/9
• USB InterfaceFront panel: 2 × USB 2.0; Rear panel: 1 × USB 3.0
• Ctrl 12VControllable 12 VDC, 1 A power output for external alarm device; The power will be turned on when the alarm output is triggered.

  *: The Ctrl 12V power is controlled by alarm output 9.

• DC 12V12 VDC, 1 A power output

• General
• Power Supply100 to 240 VAC, 50 to 60 Hz
• Consumption≤ 15 W (without HDD )
• Working Temperature-10 °C to 55 °C (14 °F to 131 °F)
• Working Humidity10% to 90%
• Chassis19-inch rack-mounted 1.5U chassis
• Dimension (W × D × H)445 × 400 × 75 mm ( 17.5″× 15.7″ × 3.0″)
• Weight≤ 5 kg (without HDD, 11 lb.)

• Certification
• FCCPart 15 Subpart B, ANSI C63.4-2014
• CEEN 55032:2015+A1:2020, ENIEC61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:201

  9, EN 50130-4:2011+A1:2014, EN 55035:2017+A11:2020
