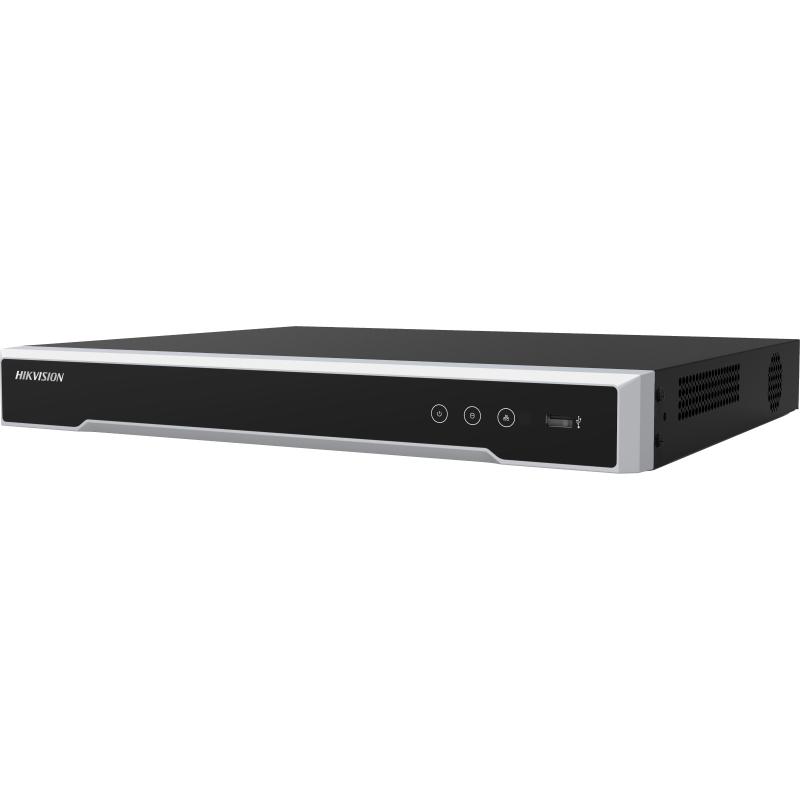

Network Video Recorder HIKVISION DS-7608NI-Q2

8-ch 1U 4K NVR

• Up to 8-ch IP camera inputs
• H.265+/H.265/H.264+/H.264 video formats
• Up to 1-ch@8 MP/3-ch@4 MP/6-ch@1080p decoding capacity
• Up to 80 Mbps incoming bandwidth

• Motion Detection 2.0
• Human/Vehicle Analysis4-ch

• Video and Audio
• IP Video Input8-ch
• Incoming Bandwidth80 Mbps
• Outgoing Bandwidth80 Mbps
• HDMI Output1-ch, 4K（4096×2160）/30Hz，4K (3840×2160) /30Hz, 2K（2560×1440）/60Hz，1920×1080/60Hz，1600×1200/60Hz，1280×1024/60Hz，1280×720/60Hz;1-ch, 4K (3840 × 2160)/30Hz, 1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
• VGA Output1-ch, 1920*1080/60Hz，1280*1024/60Hz，1280*720/60Hz;1-ch, 1920 × 1080p/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
• Audio Output1-ch, RCA (Linear, 1 KΩ)
• Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 k Ω)
• Video Output ModeHDMI/VGA simultaneous output

• Decoding
• Decoding FormatH.265+,H.265,H.264+,H.264
• Recording Resolution8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF
• Synchronous Playback8-ch
• Decoding Capability1-ch@8 MP (30 fps)/3-ch@4 MP (30 fps)/6-ch@1080p (30 fps)

  *: The length or width of camera resolution (each track) cannot exceed 4096 pixels.

• Stream TypeVideo, Video & Audio

• Network
• Remote Connection32
• Network ProtocolTCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS
• Network Interface1, RJ-45 10/100 Mbps self-adaptive Ethernet interface

• Auxiliary Interface
• SATA2 SATA interfaces
• CapacityUp to 8 TB capacity for each disk
• Alarm In/OutN/A (4/1 is optional)
• USB Interface2 × USB 2.0

• General
• Power Supply12 VDC, 3.33 A
• Consumption≤ 15 W (without HDD)
• Working Temperature-10 °C to 55 °C (14 °F to 131 °F)
• Working Humidity10 to 90 %
• Chassis1U chassis
• Dimension (W × D × H)385 × 315 × 52 mm (15.2″× 12.4″ × 2.0″)
• Weight≤ 1.8 kg (without HDD, 4.0 lb.)
