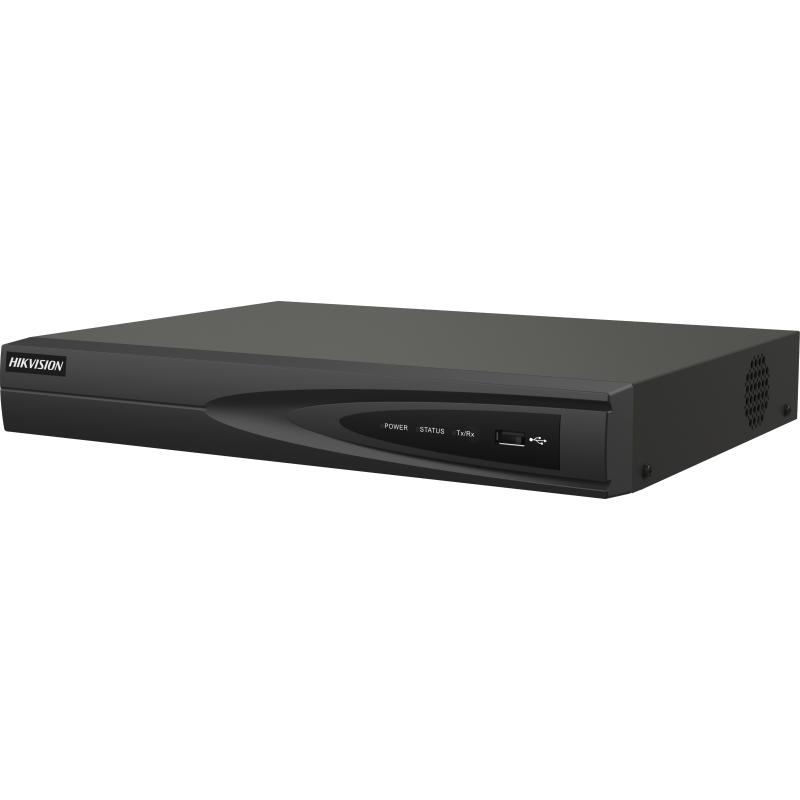

Network Video Recorder HIKVISION DS-7604NI-Q1

4-ch 1U 4K NVR

• Up to 4-ch IP camera inputs
• H.265+/H.265/H.264+/H.264 video formats
• Up to 1-ch@8 MP/3-ch@4 MP/6-ch@1080p decoding capacity
• Up to 40 Mbps incoming bandwidth

• Motion Detection 2.0
• Human/Vehicle Analysis1-ch;4-ch

• Video and Audio
• IP Video Input4-ch
• Incoming Bandwidth40 Mbps
• Outgoing Bandwidth80 Mbps
• HDMI Output1-ch, 4K (3840 × 2160)/30Hz, 1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz; HDMI/VGA simultaneous output ; 1-ch, 4K（4096×2160）/30Hz，4K (3840×2160) /30Hz, 2K（2560×1440）/60Hz，1920×1080/60Hz，1600×1200/60Hz，1280×1024/60Hz，1280×720/60Hz; HDMI/VGA simultaneous output ; 1-ch, 4K（4096×2160）/30Hz，4K (3840×2160) /30Hz, 2K（2560×1440）/60Hz，1920×1080/60Hz，1600×1200/60Hz，1280×1024/60Hz，1280×720/60Hz; HDMI/VGA simultaneous output ;1-ch, 4K (4096 x 2160)/30 Hz, 4K (3840 x 2160)/30 Hz, 2K (2560 x 1440)/60 Hz, 1920 9 x 1080/60 Hz, 1600 x 1200/60 Hz, 1280 x 1024/60 Hz, 1280 x 720/60 Hz
• VGA Output1920*1080/60Hz，1280*1024/60Hz，1280*720/60Hz;1-ch, 1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz; HDMI/VGA simultaneous output ;1-ch, 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz;1-ch, 1920*1080/60Hz，1280*1024/60Hz，1280*720/60Hz; HDMI/VGA simultaneous output
• Video Output ModeHDMI/VGA simultaneous output
• Audio Output1-ch, RCA (Linear, 1 KΩ)
• Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 k Ω)

• Decoding
• Decoding FormatH.265+,H.265,H.264+,H.264
• Recording Resolution8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF
• Synchronous playback4-ch
• Decoding Capability
  1-ch@8 MP (30 fps)/3-ch@4 MP (30 fps)/6-ch@1080p (30 fps)

  *: The length or width of camera resolution (each track) cannot exceed 4096 pixels.

• Network
• Remote Connection32
• Network ProtocolTCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS
• Network Interface1, RJ-45 10/100 Mbps self-adaptive Ethernet interface

• Auxiliary Interface
• SATA1 SATA interface
• CapacityUp to 8 TB capacity for each disk
• USB Interface2 × USB 2.0

• General
• Power Supply12 VDC, 1.5 A
• Consumption≤ 10 W (without HDD)
• Working Temperature-10 °C to 55 °C (14 °F to 131 °F)
• Working Humidity10 to 90 %
• Dimension (W × D × H)320 × 240 × 48 mm (12.4″ × 9.4″ × 1.9″)
• Weight≤ 1 kg (without HDD, 2.2 lb.)
