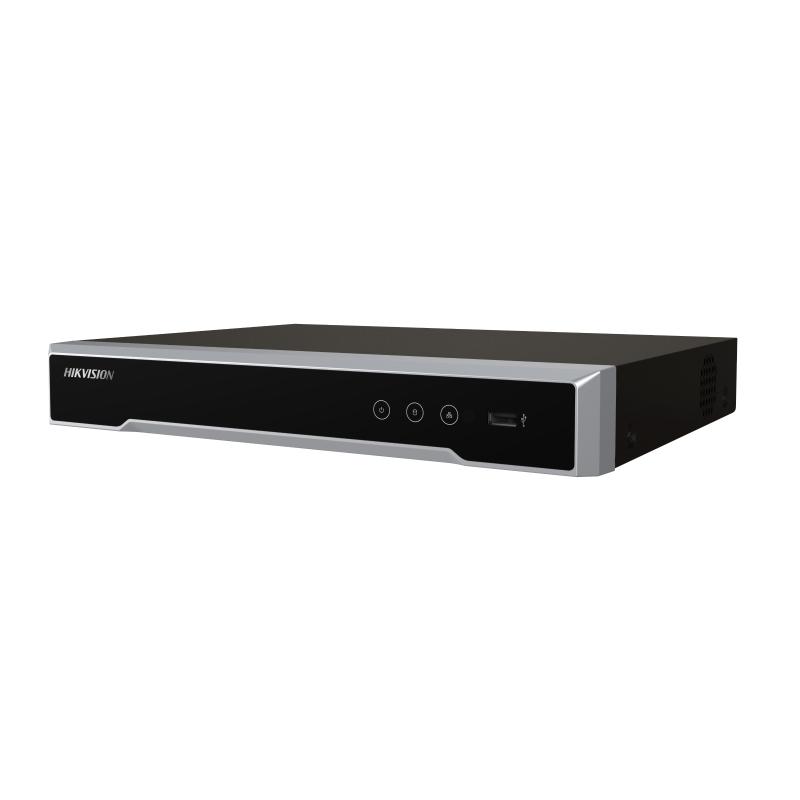

Network Video Recorder HIKVISION DS-7604NI-M1/4P

4-ch 1U 4K NVR

• H.265+/H.265/H.264+/H.264 video formats
• Up to 4-ch IP camera inputs
• Up to 4-ch@8 MP decoding capacity
• Up to 40 Mbps incoming bandwidth

• Video and Audio
• IP Video Input4-ch

  Up to 32 MP resolution

• Incoming Bandwidth40Mbps
• Outgoing Bandwidth80 Mbps
• HDMI Output8K (7680 × 4320)/30Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60 Hz
• VGA Output1920 × 1080/60 Hz
• Video Output ModeHDMI/VGA independent output
• CVBS OutputNA
• Audio Output1-ch, RCA (Linear, 1 KΩ)
• Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 KΩ, using the audio input)

• Decoding
• Dual-Stream RecordingSupport
• Decoding FormatH.265+/H.265/H.264+/H.264
• Decoding Capability4-ch@8 MP (30 fps)/8-ch@4 MP (30 fps)/16-ch@1080p (30 fps)
• Synchronous Playback4-ch
• Recording Resolution32 MP/24 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA /4CIF/DCIF/ 2CIF/CIF/QCIF
• Stream TypeVideo, Video & Audio
• Audio CompressionG.711ulaw/G.711alaw/G.722/G.726/AAC/MP2L2

• Network
• Remote Connection128
• Network ProtocolTCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS
• Network Interface1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface

• PoE
• Interface4, RJ-45 10/100 Mbps self-adaptive Ethernet interface
• Power≤ 60 W
• StandardIEEE 802.3 af/at

• Auxiliary Interface
• SATA1 SATA interfaces
• CapacityUp to 16 TB capacity for each HDD
• Alarm In/Out4/1
• USB InterfaceFront panel: 1 × USB 2.0; Rear panel: 1 × USB 2.0

• General
• Power Supply48 VDC, 1.875 A
• Consumption≤ 15 W (without HDD and PoE off)
• Working Temperature-10 °C to 50 °C (14 °F to 122 °F)
• Working Humidity10% to 90%
• Dimension (W × D × H)320× 240 × 48 mm (12.4″ × 9.4″ × 1.9″)
• Weight≤ 1.2 kg (without HDD, 2.6 lb.)

• Certification
• CEEN 55032:2015+A1:2020, ENIEC61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:201

  9, EN 50130-4:2011+A1:2014, EN 55035:2017+A11:2020
