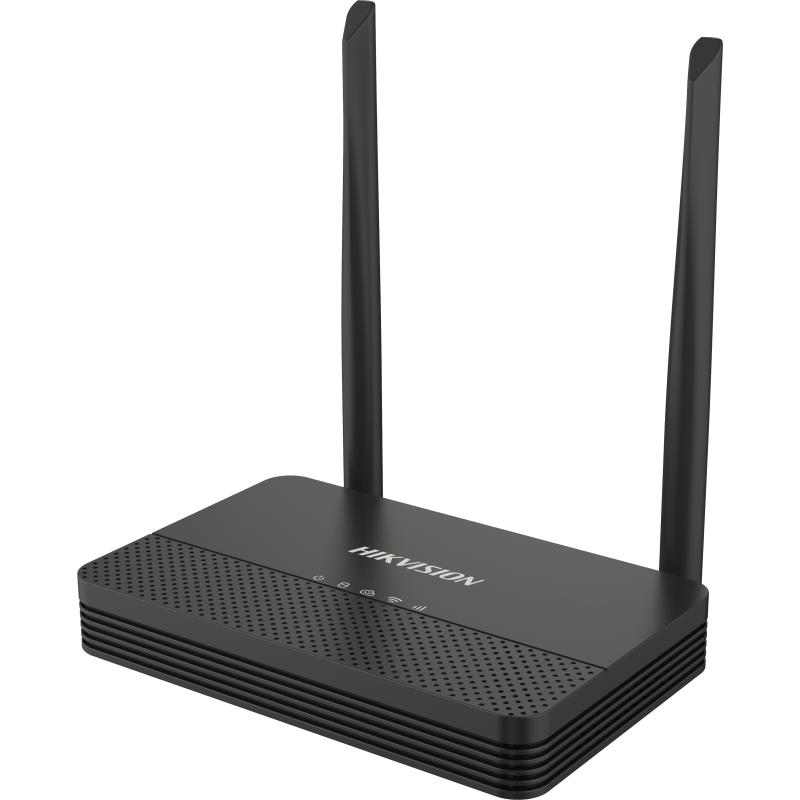

Network Video Recorder HIKVISION DS-7102NI-S1/W

2-ch Mini Wi-Fi NVS

• Equipped with Wi Fi hotspot, one click to add wireless IPC
• Supports Micro SD card storage, up to 512GB
• Through the HC App, initialization configurations such as scanning and adding devices, formatting storage media, and adding IPC with just one click are completed, enabling remote preview and playback, channel intercom, pan tilt control, and other operations
• Through the HC App, device sharing, channel management, storage media management, recording plan settings, message settings, video encryption, and other configurations can be performed

• Video and Audio
• IP Video Input2-ch
• Incoming Bandwidth20 Mbps
• Outgoing Bandwidth20 Mbps

• Decoding
• Stream TypeVideo, Video & Audio
• Recording Resolution4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF

• Network
• Network Interface1, RJ-45 10/100 Mbps self-adaptive Ethernet interface

• Wireless Parameter
• Frequency Band2.4 GHz
• Antenna StructureHigh gain antenna
• Transmission Speed150 Mbps
• Transmission StandardIEEE 802.11b/g/n/ax

• Auxiliary Interface
• SD Card32G/64G/128G/256G/512G

• General
• Power Supply12 VDC, 1 A
• Consumption≤ 6 W
• Working Temperature-10 °C to 55 °C (14 °F to 131 °F)
• Working Humidity10 to 90 %
• Dimension (W × D × H)163 x 125 x 26 mm (6.4″ × 4.9″ × 1.0″)
• Weight≤ 500 g

• Others
• Online Indicator

  Solid on: Network is connected;

  Solid off: Network is disconnected or network exception occurs

• Power Indicator

  Solid on: Device is powered up;

  Solid off: Device is powered off or power supply exception occurs;

  Flickering: Device is being restored

• SD Card Indicator

  Solid on: SD card is detected;

  Solid off: No SD card is detected;

  Flickering: There is data transmission

• Wi-Fi Indicator

  Solid on: Wi-Fi is initializing or there is no data transmission through Wi-Fi;

  Solid off: Wi-Fi exception occurs;

  Flickering slowly (on for 2 sec and off for 2 sec ): Wi-Fi is initialized and there is data transmission through Wi-Fi
