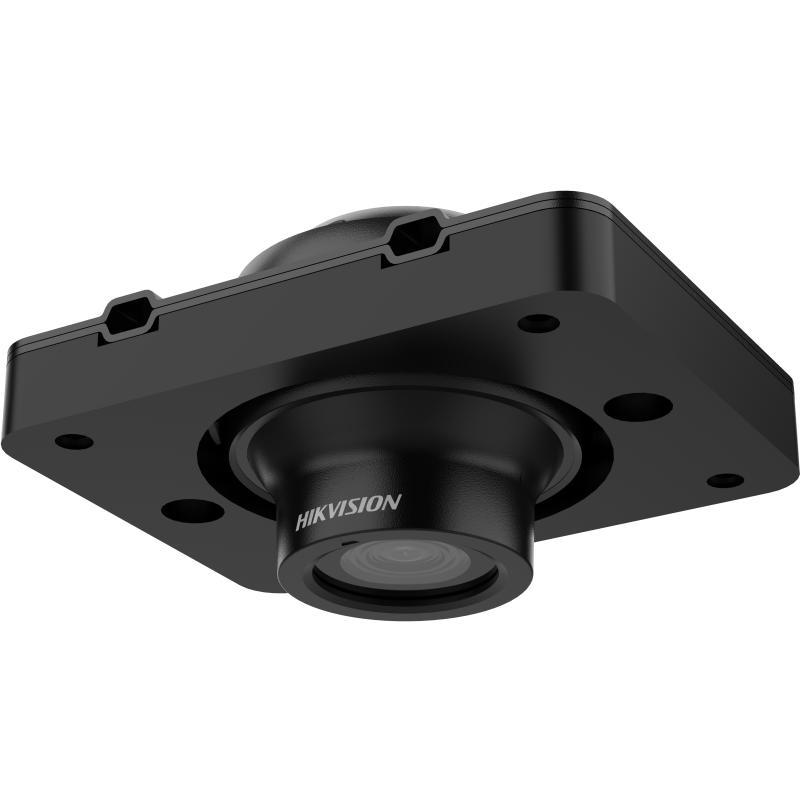

CAMERA HIKVISION DS-2XV6445G0-Y

4 MP Gantry Crane Fixed Anti-Corrosion Network Camera

• High quality imaging with 4 MP resolution
• High shock resistance with up to 50,000 times of 50 g vibration shock
• Low latency with a minimum delay time of 80 ms
• Water and dust resistant (IP68)
• Supports 12 VDC power input and Power over Ethernet (PoE) technology

• Camera
• Image Sensor1/2.8″ Progressive Scan CMOS
• Max. Resolution2560 × 1440
• Min. IlluminationColor: 0.005 Lux @ (F1.2, AGC ON)
• Angle AdjustmentPan: -20° to 20°,tilt: -20° to 20°,rotate: 0° to 360°

• Lens
• Lens TypeFixed focal lens, 2.8 and 4 mm optional
• Focal Length & FOV

  2.8 mm, horizontal FOV 104.9°, vertical FOV 58.2°, diagonal FOV 123.0°

  4 mm, horizontal FOV 79.6°, vertical FOV 43.7°, diagonal FOV 93.8°

• Iris TypeFixed
• Depth of Field

  2.8 mm: 0.53 to 9.97 m

  4 mm: 0.74 to 3.1 m

• Video
• Main Stream

  50 Hz: 25 fps (2688 × 1520, 2560 × 1440, 1920 × 1080, 1280 × 720)

  60 Hz: 30 fps (2688 × 1520, 2560 × 1440, 1920 × 1080, 1280 × 720)

  *High frame rate is supported under certain settings.

• Sub-Stream

  50 Hz: 25 fps (704 × 576, 640 × 480)

  60 Hz: 30 fps (704 × 480, 640 × 480)

• Third Stream

  50 Hz: 10 fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480)

  60 Hz: 10 fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)

• Video Compression

  Main stream: H.265/H.264 /H.265+/H.264+,

  Sub-stream: H.265/H.264/MJPEG,

  Third stream: H.265/H.264

• Video Bit Rate32 Kbps to 8 Mbps
• H.264 TypeBaseline Profile,Main Profile,High Profile
• H.265 TypeMain Profile
• Bit Rate ControlCBR,VBR
• Scalable Video Coding (SVC)H.264 and H.265 encoding
• Region of Interest (ROI)1 fixed region for main stream and sub-stream
• Target CroppingYes

• Network
• ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS, WebSocket, WebSockets
• APIOpen Network Video Interface (Profile S, Profile G),ISAPI,SDK,ISUP
• User/Host

  Up to 32 users

  3 user levels: administrator, operator, and user

• SecurityPassword protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.2, host authentication (MAC address)
• Network StorageNAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR)
• ClientiVMS-4200,Hik-Connect,Hik-Central
• Web Browser

  Plug-in required live view: IE 10, IE 11,

  Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+, Safari 11+,

  Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+

• Image
• Image Parameters SwitchYes
• Image SettingsRotate mode,saturation,brightness,contrast,sharpness,white balance,AGC,adjustable by client software or web browser
• Day/Night SwitchDay,Night,Auto,Schedule
• Wide Dynamic Range (WDR)120 dB
• SNR≥ 50 dB
• Image EnhancementBLC,HLC,3D DNR,Defog

• Interface
• Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port

• Event
• Basic EventMotion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)
• Smart Eventscene change detection,defocus detection, unattended baggage detection,object removal detection
• LinkageUpload to FTP/NAS,notify surveillance center,send email,trigger recording,trigger capture

• Deep Learning Function
• Perimeter Protection

  Line crossing, intrusion, region entrance, region exiting

  Support alarm triggering by specified target types (human and vehicle)

• General
• Power

  12 VDC ± 20%, 0.4 A, max. 5 W,

  PoE: IEEE 802.3af, Class 3, max. 5 W

• MaterialMetal
• Dimension130 mm × 100 mm × 74.8 mm (5.12″ × 3.94″ × 2.94″)
• Package Dimension245 mm × 195 mm × 205 mm (9.65″ × 7.68″ × 8.07″)
• WeightApprox. 0.755 kg (1.66 lb.)
• With Package WeightApprox. 2.134 kg (4.7 lb.)
• Storage Conditions-40 °C to 60 °C (-40 °F to 140 °F). Humidity 95% or less (non-condensing)
• Startup and Operating Conditions-40 °C to 60 °C (-40 °F to 140 °F). Humidity 95% or less (non-condensing)
• Language33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
• HeaterYes

• Approval
• EMCCE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021
• Safety

  CE-LVD: EN 62368-1: 2014/A11: 2017,

  CB: IEC 62368-1: 2014+A11

• ProtectionIP68: IEC 60529-2013
• Anti-Corrosion ProtectionNEMA 4X (NEMA 250-2018),C5
