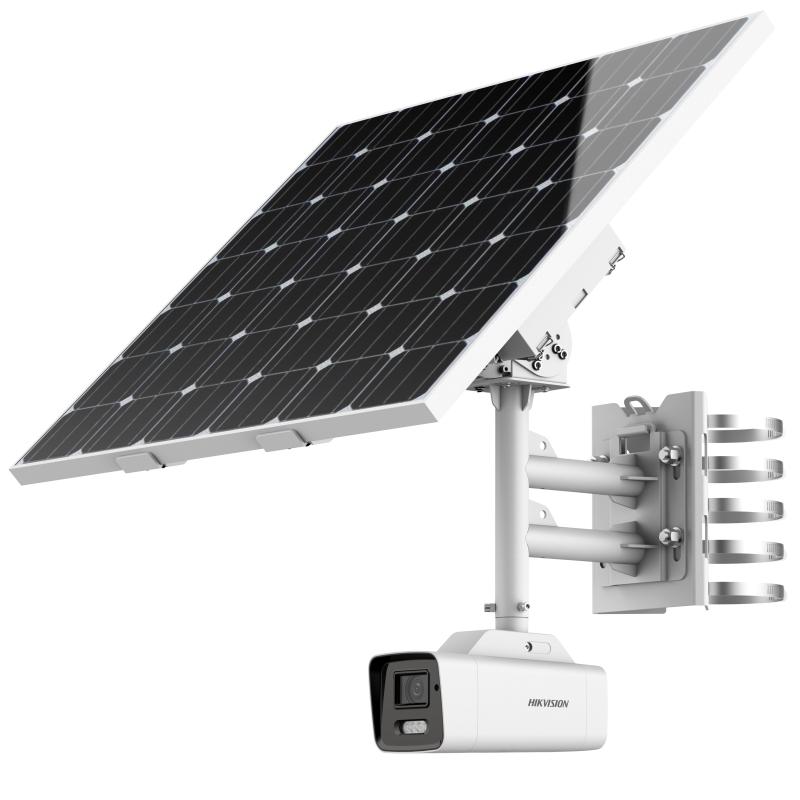

CAMERA HIKVISION DS-2XS6A46G1/P-IZS/C36S80

4MP ANPR Bullet Solar Power 4G Network Camera Kit

• 80 W photovoltaic panel, 360 Wh chargeable lithium battery
• Clear imaging against strong back light due to 120 dB true WDR technology
• Focus on human and vehicle targets classification based on deep learning
• Support battery management, battery display, battery high-low temperature protection, charge-discharge protection, low-battery sleep protection and remote wakeup
• LTE-TDD/LTE-FDD/WCDMA/GSM 4G wireless network transmission, support Micro SIM card
• Water and dust resistant (IP66)

• Camera
• Image Sensor1/1.8″ Progressive Scan CMOS
• Max. Resolution2560 × 1440
• Min. IlluminationColor: 0.0005 Lux @ (F1.2, AGC ON), B/W: 0 Lux with light
• Shutter Time1 s to 1/100,000 s

• Lens
• Focal Length & FOV

  2.8 to 12 mm, horizontal FOV 107.4° to 39.8°, vertical FOV 56° to 22.4°, diagonal FOV 130.1° to 45.7°

  8 to 32 mm, horizontal FOV 40.3° to 14.5°, vertical FOV 22.1° to 8.2°, diagonal FOV 46.9° to 16.5°

• Lens TypeAuto, Semi-auto, Manual
• Iris TypeAuto-iris
• Aperture2.8 to 12 mm: F1.2, 8 to 32 mm: F1.6
• Lens MountAll In One Lens

• DORI
• DORI

  2.8 to 12 mm:

  Wide: D: 60.0 m, O: 23.8 m, R: 12.0 m, I: 6.0 m

  Tele: D: 149.0 m, O: 59.1 m, R: 29.8 m, I: 14.9 m

  8 to 32 mm:

  Wide: D: 150.3 m, O: 59.7 m, R: 30.1 m, I: 15.0 m

  Tele: D: 400 m, O: 158.7 m, R: 80 m, I: 40 m

• Illuminator
• Supplement Light TypeIR
• Supplement Light Range

  2.8 to 12 mm: Up to 30 m

  8 to 32 mm: Up to 50 m

• Smart Supplement LightYes

• Video
• Main Stream

  Performance mode:

  50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 720)

  60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 720)

  Proactive mode:

  50 Hz: 12.5 fps (2560 × 1440, 1920 × 1080, 1280 × 720)

  60 Hz: 15 fps (2560 × 1440, 1920 × 1080, 1280 × 720)

• Sub-Stream

  Performance mode:

  50 Hz: 25 fps (640 × 480, 640 × 360)

  60 Hz: 30 fps (640 × 480, 640 × 360)

  Proactive mode:

  50 Hz: 12.5 fps (640 × 480, 640 × 360)

  60 Hz: 15 fps (640 × 480, 640 × 360)

• Third Stream

  50 Hz: 1 fps (1280 × 720, 640 × 480)

  60 Hz: 1 fps (1280 × 720, 640 × 480)

• Video Compression

  Main stream: H.264/H.265

  Sub-stream: H.264/H.265/MJPEG

  Third Stream: H.265/H.264

  *Performance mode: main stream supports H.264+, H.265+

• Video Bit Rate32 Kbps to 8 Mbps
• H.264 TypeBaseline Profile,Main Profile,High Profile
• H.265 TypeMain Profile
• Bit Rate ControlCBR/VBR
• Scalable Video Coding (SVC)H.264 and H.265 encoding
• Region of Interest (ROI)4 fixed regions for main stream

• Audio
• Audio CompressionG.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
• Audio Bit Rate64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
• Audio Sampling Rate8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
• Environment Noise FilteringYes

• Network
• Simultaneous Live ViewUp to 6 channels
• APIOpen Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK, ISUP, OTAP
• ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP,UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS, WebSocket, WebSockets
• User/Host

  Up to 32 users

  3 user levels: administrator, operator, and user

• SecurityPassword protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, TLS 1.2, TLS 1.3
• Network Storage

  NAS (NFS, SMB/CIFS), auto network replenishment (ANR)

  Together with high-end Hikvision memory card, memory card encryption and health detection are supported.

• ClientHik-Connect (proactive mode also supports), Hik-central Professional
• Web Browser

  Plug-in required live view: IE 10+

  Plug-in free live view: Chrome 57.0+, Firefox 52.0+

  Local service: Chrome 57.0+, Firefox 52.0+

• Mobile Communication
• SIM Card TypeMicroSIM
• Frequency

  LTE-TDD: Band38/40/41

  LTE-FDD: Band1/3/5/7/8/20/28

  WCDMA: Band1/5/8

  GSM: 850/900/1800 MHz

• StandardLTE-TDD/LTE-FDD/WCDMA/GSM

• Image
• Wide Dynamic Range (WDR)120 dB
• Day/Night SwitchDay, Night, Auto, Schedule, Video Trigger
• Image EnhancementBLC, HLC, 3D DNR, Defog
• Image Parameters SwitchYes
• Image SettingsSaturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser
• SNR≥ 52 dB
• Privacy Mask4 programmable polygon privacy masks

• Interface
• Audio

  1 input (line in), max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium,

  1 output (line out), max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium

• Alarm1 input, 1 output (max. 12 VDC, 1 A)
• On-Board Storage

  Built-in memory card slot, support microSD card, up to 256 GB,

  Built-in 8 GB eMMC storage

• Reset KeyYes
• Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
• Wiegand1 Wiegand (CardID 26bit, SHA-1 26bit, Hik 34bit, NEWG 72 bit)

• Event
• Basic EventMotion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD error)
• Smart EventLine crossing detection, intrusion detection, region entrance detection, region exiting detection, scene change detection, face detection
• LinkageUpload to FTP/NAS/memory card, notify surveillance center, send email, trigger recording, trigger capture, trigger alarm output, audible warning

• Deep Learning Function
• Road Traffic and Vehicle Detection

  Blocklist and allowlist: up to 10,000 records

  Vehicle attribute detection: Not supported

  Support license plate recognition of vehicles and motorcycles (only in checkpoint scenario)

  LPR Countries/Regions: 4 areas (Europe, Middle East, Asia-Pacific, Africa) and more than 124 countries/regions（Some areas need to be upgraded to a special program.）

  License plate recognition rate ≥97%

  Capture rate ≥95%

  Vehicle Capture Speed: Front installation in checkpoint scenario: up to 100 km/h; Side installation: up to 60 km/h

  Capture Mode: License Plate and Vehicle Mode, Vehicle Priority Mode

• General
• Power

  12 VDC ± 20%, 4-pin M8 waterproof connector

  1. Standby power consumption: 45 mW

  2. The average power consumption of 24 hours: 3.5 W (4G transmission is excluded).

  3. The max. power consumption: 7 W

• MaterialFront cover: metal, body: metal, bracket: metal
• Dimension816.2 mm × 735.9 mm × 760 mm (32.1″ × 28.9″ × 29.9″) (Max. size of the camera after it is completely assembled)
• Package Dimension862 mm × 352 mm × 762 mm (33.9″ × 13.9″ × 30.0″)
• WeightApprox. 31.885 kg (70.3 lb.)
• With Package WeightApprox. 25.650 kg (56.5 lb.)
• Storage Conditions-20 °C to 60 °C (-4 °F to 140 °F). Humidity 95% or less (non-condensing)
• Startup and Operating Conditions-20 °C to 60 °C (-4 °F to 140 °F). Humidity 95% or less (non-condensing)
• Language33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
• General FunctionAnti-banding, heartbeat, mirror, flash log, password reset via email, pixel counter

• Battery
• Battery TypeLithium
• Capacity360 Wh (90 Wh for each battery)
• Battery Voltage10.8 V
• Max. Output Voltage12.6 V
• Operating Temperature

  Charging: -20 °C to 45 °C (-4 °F to 113 °F)

  Discharging: -20 °C to 60 °C (-4 °F to 140 °F)

• Battery LifeMore than 500 cycles
• Cycle Lifetime

  Proactive mode: 5 days, Standby mode: 80 days

  *in cloudy/rainy days (25 °C)

• Battery WeightApprox. 2.74 kg (6.0 lb.) (0.685 kg (1.5 lb.) for each battery)

• Approval
• EMC

  CE-EMC/UKCA (EN 55032:2015+A11:2020+A1:2020,EN 50130-4:2011+A1:2014);

  RCM (AS/NZS CISPR 32: 2015);

  IC (ICES-003: Issue 7)

• RF

  CE-RED/UKCA (EN 301908-1,EN 301908-2,EN 301908-13, EN 301511,EN 301489-1,EN 301489-52,EN 62133);

  ICASA: same as CE-RED;

  IC ID (RSS-132 Issue 3, RSS-133 Issue 6, RSS-139 Issue 3, RSS-130 Issue 2, RSS-102 Issue 5);

  MIC (Article 49-6-4 and 49-6-5 the relevant articles and MIC Notice No. 1299 of the Ordinance Regulating Radio Equipment)

• Safety

  CB (IEC 62368-1:2014+A11)

  CE-LVD/UKCA (EN 62368-1:2014/A11:2017)

  LOA (IEC/EN 60950-1)

• Environment

  CE-RoHS (2011/65/EU);

  WEEE (2012/19/EU);

  Reach (Regulation (EC) No 1907/2006)

• Protection

  Camera: IP66 (IEC 60529-2013)

  Wind resistance 12 level, up to 40 m/s wind speed resistance
