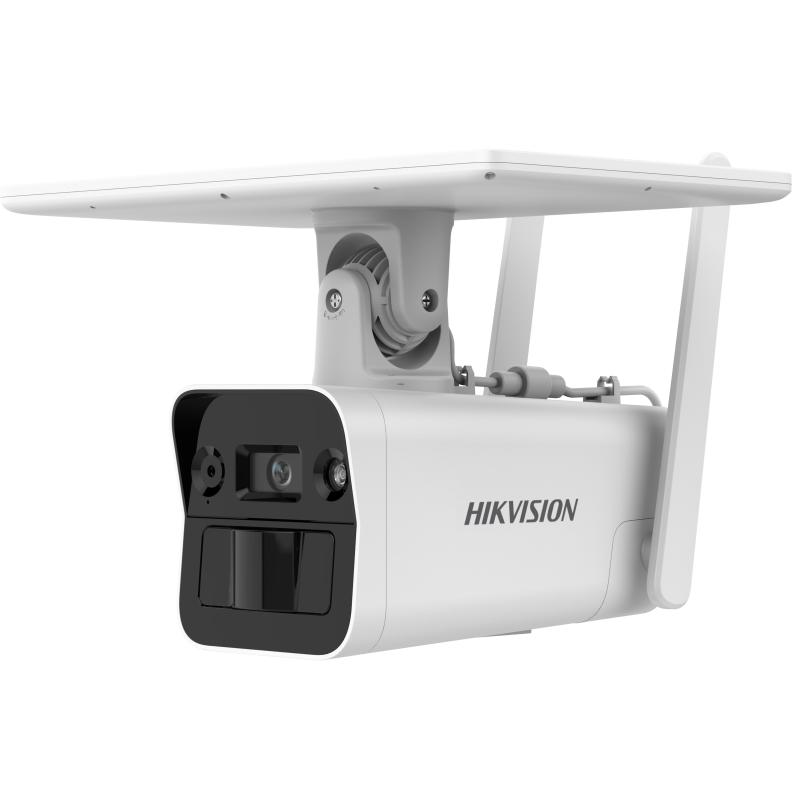

4MP Solar-powered Security Camera Setup

Available models:

DS-2XS2T41G1-ID/4G/C05S07(4mm)

DS-2XS2T41G1-ID/4G/C05S07(6mm)

Lens
Lens TypeFixed focal lens, 4 and 6 mm optional
Iris TypeFixed
Aperture4mm: F1.28, 6mm: F1.6
Depth of Field4 mm: 2.7 m to ∞
6 mm: 5.9 m to ∞
Focal Length & FOV4 mm, Horizontal FOV: 79°, Vertical FOV: 43°, Diagonal FOV: 93°
6 mm, Horizontal FOV: 49°, Vertical FOV: 26°, Diagonal FOV: 57°
Lens MountM12

DORI
DORI4 mm, D: 77 m, O: 30 m, R: 15 m, I: 7 m
6 mm, D: 128 m, O: 50 m, R: 25 m, I: 12 m

Video
Main Stream50 Hz: 12.5 fps (2560 × 1440, 1920 × 1080, 1280 × 720)
60 Hz: 15 fps (2560 × 1440, 1920 × 1080, 1280 × 720)
Sub-Stream50 Hz: 12.5 fps (1280 × 720, 640 × 480, 640 × 360)
60 Hz: 15 fps (1280 × 720, 640 × 480, 640 × 360)
Video CompressionMain stream: H.265/ H.264,
Sub-stream: H.265/H.264/MJPEG,
H.264+ and H.265+: main stream supports under performance mode
Video Bit Rate32 Kbps to 8 Mbps
H.264 TypeBaseline Profile,Main Profile,High Profile
H.265 TypeMain Profile
Bit Rate ControlCBR,VBR
Region of Interest (ROI)1 fixed region for main stream
Scalable Video Coding (SVC)H.264 and H.265 encoding

Audio
Audio Sampling Rate8 kHz/16 kHz
Environment Noise FilteringYes
Audio CompressionG.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC-LC
Audio Bit Rate64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)

Network
APIISAPI,SDK,ISUP,OTAP
SecurityPassword protection, complicated password, basic and digest authentication for HTTP, TLS 1.1/1.2/1.3, WSSE and digest authentication for Open Network Video Interface
Simultaneous Live ViewUp to 6 channels
ProtocolsTCP/IP, ICMP, HTTP, DHCP, DNS, RTP, RTSP, RTCP, NTP, IGMP, QoS, UDP
User/HostUp to 32 users
3 user levels: administrator, operator, and user
Network StorageAuto Network Replenishment (ANR)
ClientiVMS-4200,Hik-Connect,Hik-Central
Web BrowserPlug-in required live view: IE 10, IE 11,
Plug-in free live view: Chrome 57.0+, Firefox 52.0+,
Local service: Chrome 57.0+, Firefox 52.0+

SNR≥ 52 dB
Wide Dynamic Range (WDR)Digital WDR
Day/Night SwitchDay,Night,Auto,Schedule
Image EnhancementBLC,HLC,3D DNR
Image SettingsSaturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser

Transducer
Transducer TypePIR + Radar
Detection Angle4 mm : Horizontal: 80°, vertical: 42°,6 mm：Horizontal: 50°, vertical: 22°
Detection RangeUp to 12 m

Interface
Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
On-Board StorageBuilt-in eMMC storage, up to 8 GB,
Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 256 GB,For eMMC storage, 5 GB is available for recording.
Built-in MicrophoneYes
Built-in SpeakerYes
Reset KeyYes

Event
Basic EventMotion detection,video tampering alarm,network disconnected,IP address conflict,illegal login,HDD full,HDD error
Linkage
Upload to memory card,notify surveillance center,trigger recording,trigger capture,audible warning

General
PowerPower Consumption and Current:
Typical power scenarios: 1.85 W (4G working)
Standby scenarios: 80 mW
Max. power consumption: 7 W
Power Supply:
12 VDC
*For debugging only
6.5 W (deviation: ± 1 W) Solar panels
Power Interface:
Power supply interface: Ø5.5 mm coaxial power plug
Extened solar panel: Ø5.5 mm coaxial power plug
MaterialPlastic
Storage Conditions0 °C to 50 °C (32 °F to 122 °F). Humidity 95% or less (non-condensing)
LanguageEnglish, Ukranian
General FunctionHeartbeat,mirror,flash log
Startup and Operating Conditions0 °C to 50 °C (32 °F to 122 °F). Humidity 95% or less (non-condensing)
Dimension213.7 mm × 292.4 mm × 188.7 mm (8.4″ × 11.5″ × 7.3″)
Package Dimension345 mm × 240 mm × 292 mm (13.6″ × 9.4″ × 11.5″)
Weight
Approx. 1.42 kg (3.1 lb.)
With Package Weight
Approx. 2.07 kg (4.6 lb.)

Battery
Battery TypeTernary Lithium
Capacity51.46 Wh
Max. Charging Voltage12.6 V
Operating TemperatureCharging: 0 °C to 45 °C (32 °F to 113 °F)
Discharging: -20 °C to 50 °C (-4 °F to 122 °F)
Battery Voltage8.1 V to 12.6 V
Battery LifeMore than 800 cycles
Cycle Lifetime
Standby mode: 11 days
Battery WeightApprox. 185 g (0.4 lb.)

Approval
EMC
CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014,
RCM: AS/NZS CISPR 32: 2015,
*CE and RCM certifications are only for the device sold in the European region.
RFCE-RED: EN 301489-1 V2.1.1 (BT or 2.4G), EN 301489-17 V3.1.1 (BT or 2.4G), EN 300328 V2.1.1 (BT or 2.4G), EN 62311: 2008 (BT or 2.4G)
*CE certification is only for the device sold in the European region.
Safety
CB: IEC 62368-1: 2014+A11,
CE-LVD: EN 62368-1: 2014/A11: 2017,
LOA: IEC/EN 60950-1,
*CE and LOA certifications are only for the device sold in the European region.
EnvironmentCE-RoHS: 2011/65/EU,
WEEE: 2012/19/EU,
Reach: Regulation (EC) No 1907/2006,
*CE certification is only for the device sold in the European region.
ProtectionIP67: IEC 60529-2013
