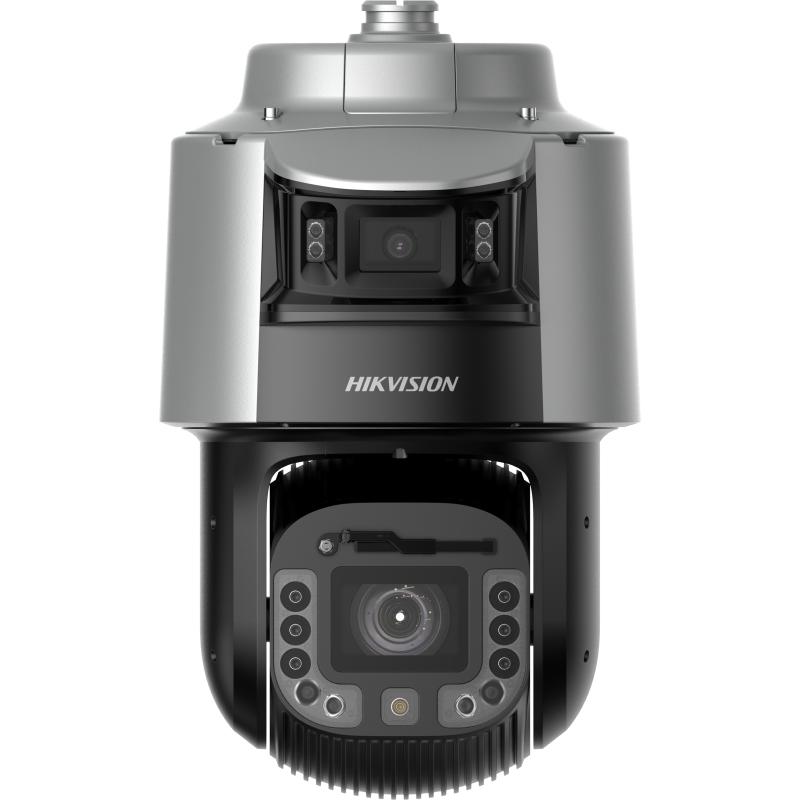

CAMERA HIKVISION DS-2SF8C848MXG1-EL(W)(Y)/14

TandemVu 8C Series 8 MP 48X DarkFighter Network Speed Dome

Captures a large area and great details at the same time
High quality imaging with 4 MP resolution for bullet channel, 8MP for PTZ channel
24/7 colorful imaging and excellent low-light performance with DarkFighter 2.0 technology
Bullet channel tilt adjustable from 7° to 17°
Secures an expansive area with 48 × optical zoom and 16 × digital zoom
Expansive night view with up to 30 m white light distance and 500 m IR distance
Supports deep learning functions
Water and dust resistant (IP67) and vandal resistant (IK10) excluding glass window
Audio visual alarm: The white flashing light and audible warning can be triggered by certain events

Camera
Image Sensor
[Bullet channel] 1/1.8″ Progressive Scan CMOS, [PTZ channel] 1/1.8″ Progressive Scan CMOS
Min. Illumination
[Bullet channel] Color: 0.0005 Lux @ (F1.0, AGC ON), B/W: 0.0001 Lux @ (F1.0, AGC ON), 0 Lux with light,
[PTZ channel] Color: 0.0005 Lux @ (F1.6, AGC ON), B/W: 0.0001 Lux @ (F1.6, AGC ON), 0 lux with IR
Shutter Speed
1 s to 1/30000 s
Slow Shutter
Yes
Day & Night
[Bullet channel] Day,Night,Schedule,Auto, [PTZ channel] Day,Night,Schedule,Auto
Zoom
[PTZ channel] 48 × optical, 16 × digital
Max. Resolution
[Bullet channel] 2688 × 1520, [PTZ channel] 3840 × 2160

Lens
Focus
Auto,semi-auto,manual
Zoom Speed
[Bullet channel] No, [PTZ channel] approx. 4.8 s
Focal Length
[Bullet channel] 4 mm, [PTZ channel] 6.25 to 300 mm
FOV
[Bullet channel] horizontal field of view: 89° ± 5°, vertical field of view: 45° ± 5°, diagonal field of view: 107° ± 5°, [PTZ channel] horizontal field of view: 58.5° to 3.1°, vertical field of view: 34° to 1.7°, diagonal field of view: 68.5° to 3.5°
Aperture
[Bullet channel] F1.0, [PTZ channel] F1.5

Illuminator
Supplement Light Range
[Bullet channel] white light: up to 30 m, [PTZ channel] Laser: up to 500 m
Smart Supplement Light
Yes

PTZ
Movement Range (Pan)
[PTZ channel] 0° to 360°
Movement Range (Tilt)
[Bullet channel] 7° to 17°, [PTZ channel] -20° to 90°
Pan Speed
[PTZ channel] pan speed: configurable from 0.1° to 160°/s, preset speed: 240°/s
Tilt Speed
[Bullet channel] tilt speed configurable,[PTZ channel] tilt speed: configurable from 0.1° to 120°/s, preset speed 200°/s
Proportional Pan
[Bullet channel] No, [PTZ channel] Yes
Presets
300
Patrol Scan
8 patrols, up to 32 presets for each patrol
Pattern Scan
4 pattern scans, record time over 10 minutes for each scan
Power-off Memory
Yes
Park Action
Preset,pattern scan,patrol scan,auto scan,tilt scan,random scan,frame scan,panorama scan
3D Positioning
Yes
PTZ Status Display
Yes
Preset Freezing
Yes
Scheduled Task
Preset,pattern scan,patrol scan,auto scan,tilt scan,random scan,frame scan,panorama scan,dome reboot,dome adjust,aux output

Video
Main Stream
[Bullet channel] 50 Hz: 25 fps (2688 × 1520, 2560 × 1440), 60 Hz: 30 fps (2688 × 1520, 2560 × 1440)
[PTZ channel] 50 Hz: 50 fps (3840 × 2160, 2560 × 1440), 100 fps (1920 × 1080, 1280 × 960, 1280 × 720), 60 Hz: 60 fps (3840 × 2160, 2560 × 1440), 120 fps (1920 × 1080, 1280 × 960, 1280 × 720)
*High frame rate is supported under monitoring mode only.
Sub-Stream
[Bullet channel] 50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288), 60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240),[PTZ channel] 50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288), 60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240)
Third Stream
[Bullet channel] 50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288), 60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240),[PTZ channel] 50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288), 60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)
Video Compression
Main stream: H.265+/H.265/H.264+/H.264,
Sub-stream: H.265/H.264/MJPEG,
Third stream: H.265/H.264/MJPEG
Video Bit Rate
32 Kbps to 16 Mbps
H.264 Type
Baseline profile,Main profile,High profile
H.265 Type
Main profile
Scalable Video Coding (SVC)
H.264 and H.265 encoding
Region of Interest (ROI)
8 fixed regions for each stream

Audio
Audio Compression
G.711,G.722.1,G.726,MP2L2,PCM,AAC-LC,MP3
Audio Bit Rate
32 to 192 Kbps (MP2L2),16 to 64Kbps (AAC-LC),64 Kbps (G.711),16 Kbps (G.726),8-48 Kbps (PCM),16 Kbps (G.722.1)
Audio Sampling Rate
8 kHz,16 kHz,32 kHz,48 kHz
Environment Noise Filtering
Yes

Network
API
ONVIF (Profile S, Profile G, Profile T, Profile M),ISUP,ISAPI,SDK,OTAP
Network Storage
NAS (NFS, SMB/CIFS),auto network replenishment (ANR)
Protocols
IPv4/IPv6,HTTP,HTTPS,802.1X,QoS,SMTP,UPnP,SNMP,DNS,DDNS,NTP,RTSP,RTCP,RTP,TCP/IP,UDP,IGMP,ICMP,DHCP,PPPoE,Bonjour,FTP
Simultaneous Live View
Up to 20 channels
User/Host
Up to 32 users. 3 user levels: administrator, operator, and user
Security
Password protection,complicated password,IP address filter,HTTPS encryption,802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5),host authentication (MAC address),watermark, TPM 2.0 (FIPS 140-2 level 2)
Client
iVMS-4200,HikCentral Pro,Hik-Connect
Web Browser
Plug-in required live view: IE8+Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Safari 11+
Local service: Chrome 41.0+, Firefox 30.0+

Wide Dynamic Range (WDR)
[Bullet channel] 120 dB, [PTZ channel] 140 dB
Day/Night Switch
Day,night,auto,schedule
Image Enhancement
HLC,3D DNR
Defog
Digital defog
Image Stabilization
EIS (Built-in gyroscope to improve EIS performance)
Regional Exposure
Yes
Regional Focus
[Bullet channel] No, [PTZ channel] Yes
Image Settings
Saturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browser
Image Parameters Switch
Yes
Privacy Mask
[Bullet channel] No, [PTZ channel] 24 programmable polygon privacy masks; mask color or mosaic configurable
SNR
≥ 52 dB

Supplement Detection
Satellite Positioning
No
Gyroscope
Yes
Compass
No

Interface
Built-in Speaker
1 built-in speaker
Ethernet Interface
1 RJ45 100M self-adaptive Ethernet port
On-board Storage
Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 1 TB .
Alarm
7 input(s), 2 output(s)
Audio
1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 KΩ ± 10%,
1 output (line out), line level, output impedance: 600 Ω
RS-485
1 RS-485 (Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)
Reset
Yes

Event
Smart Event
Line crossing detection,intrusion detection,region entrance detection,region exiting detection,unattended baggage detection,object removal detection,loitering detection,people gathering detection,fast moving detection,parking detection
Linkage
[Bullet channel] Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, audible warning, white light flashing,[PTZ channel] Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, audible warning, white light flashing, and PTZ actions (such as preset, patrol scan, pattern scan)
Basic Event
[PTZ channel] video tampering alarm,[PTZ channel & bullet channel] alarm input and output, exception

Deep Learning Function
Perimeter Protection
Line crossing detection, region entrance detection, intrusion detection, region exiting detection
Face Capture
Detects up to 30 faces simultaneously,
Uploads face with background and closed-up face pictures
Face Comparison
Up to 10 face libraries. 30000 faces for each library. 150000 faces in total,
Recognizes face identity via face modeling, grading and comparing to those in face library,
Supports face library encryption
Road Traffic and Vehicle Detection
Smart Function:
Support license plate recognition of vehicles and motorcycles (only in checkpoint scenario)
Support vehicle attribute detection, including vehicle type, color, brand, driving direction, etc.
Support vehicle and non-vehicle counting
Blocklist and allowlist: up to 10,000 records
LPR Countries/Regions:
4 areas (Europe, Middle East, Asia-Pacific, Africa) and more than 124 countries/regions
Accuracy (Under recommended installation and lighting conditions):
License plate recognition rate ≥98%
Capture rate ≥99%
Driving direction accuracy rate ≥98%
Vehicle Capture Speed:
Front installation in checkpoint scenario: up to 120 km/h
Side installation: up to 80 km/h
Capture Mode: License Plate and Vehicle Mode, Vehicle Priority Mode
Multi-Target-Type Detection
[Bullet channel] no,[PTZ channel] Supports simultaneous detection and capture of human body, face and vehicle

Linkage and Tracking
Smart Tracking
Manual tracking, auto-tracking 3.0
Smart Linkage
Manual tracking, auto tracking, tracking takeover, linked tracking capture
Object Tracking
Support person arming. When the device detects the armed face or human body in the monitoring scene, it triggers alarms, and tracks and captures the target. During the tracking, the target location and other related information are uploaded.Support vehicle arming. When the device detects the armed vehicles in the monitoring scene, it triggers alarms, and tracks and captures the target. During the tracking, the target location and other related information are uploaded.

General
General Function
mirror,password protection
Power
36V, 2.5 A, PoE(802.3 bt), 42.5 to 57 V, 1.76 A
Operating Condition
-40 °C to 70 °C (-40 °F to 158 °F). Humidity 95% or less (non-condensing),For speaker: -30 °C to 55°C (-22°F to 131°F)
Wiper
Yes
Demist
Yes
Material
ADC12
Dimension
Ø290 mm × 453.2 mm (Ø11.42″ × 17.84″)
Weight
Approx. 11.5 kg (25.35 lb.)
Language
33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian

Approval
EMC
CE-EMC (EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3: 2013 + A1: 2019, EN 50130-4: 2011 + A1: 2014),RCM (AS/NZS CISPR 32: 2015),IC (ICES-003: Issue 7)
Safety
CB (IEC 62368-1: 2014 + A11),CE-LVD (EN 62368-1: 2014/A11: 2017)
Environment
CE-RoHS (2011/65/EU),WEEE (2012/19/EU),Reach (Regulation (EC) No 1907/2006)
Protection
IP67 (IEC 60529-2013),TVS 6000 V lightning protection, surge protection and voltage transient protection,IK10 (IEC 62262:2002, excluding glass window)
Anti-Corrosion Protection
NEMA 4X (NEMA 250-2018)
