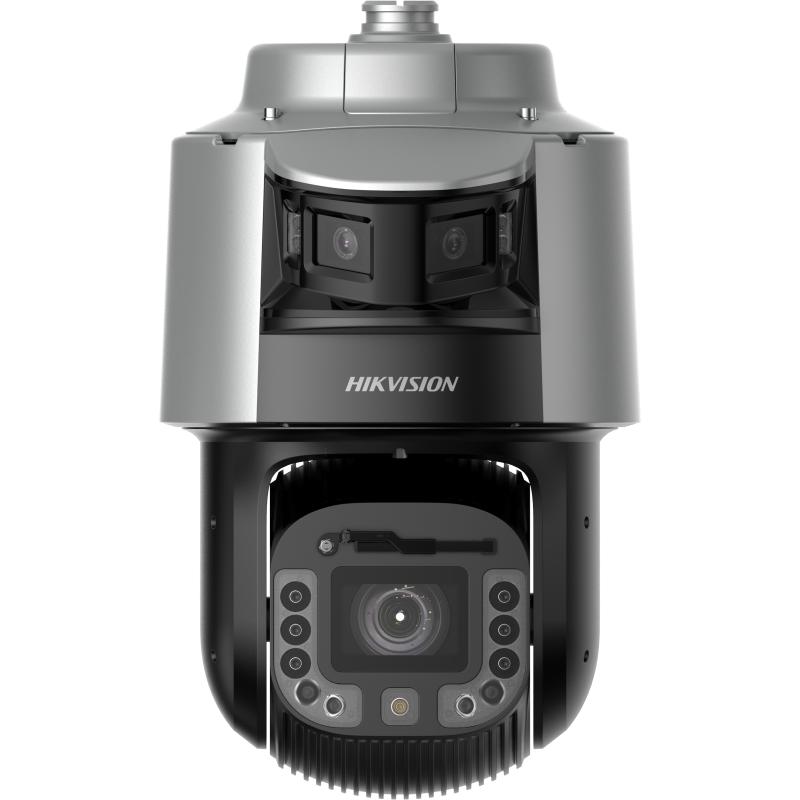

CAMERA HIKVISION DS-2SF8C425MXG1-EL(W)(Y)/26

TandemVu 8C Series Panoramic 4 MP 25X DarkFighter Network Speed Dome

Captures a large area and great details at the same time
High quality imaging with 6 MP resolution for bullet channel
24/7 colorful imaging and excellent low-light performance with DarkFighter 2.0 technology
Panoramic channel tilt adjustable from 12° to 24°
Secures an expansive area with 25 × optical zoom and 16 × digital zoom
Expansive night view with up to 30 m white light distance and 300 m IR distance
Supports deep learning functions
Water and dust resistant (IP67) and vandal resistant (IK10) excluding glass window
Audio visual alarm: The white flashing light and audible warning can be triggered by certain events

Camera
Image Sensor
[Bullet channel] 1/2.5″ Progressive Scan CMOS, [PTZ channel] 1/1.8″ Progressive Scan CMOS
Min. Illumination
[Bullet channel] Color: 0.0005 Lux @ (F1.0, AGC ON), B/W: 0.0001 Lux @ (F1.0, AGC ON), 0 Lux with light,
[PTZ channel] Color: 0.0005 Lux @ (F1.5, AGC ON), B/W: 0.0001 Lux @ (F1.5, AGC ON), 0 lux with IR
Shutter Speed
1 s to 1/30000 s
Slow Shutter
Yes
Day & Night
[Panoramic channel] Day,Night,Schedule,Auto, [PTZ channel] Day,Night,Schedule,Auto
Zoom
[PTZ channel] 25 × optical, 16 × digital
Max. Resolution
[Panoramic channel] 3680 × 1656, [PTZ channel] 2688 × 1520

Lens
FOV
[Panoramic channel] horizontal field of view: 190° ± 5°°, vertical field of view: 80° ± 5°, [PTZ channel] horizontal field of view: 58.5° to 3.1°, vertical field of view: 34° to 1.7°, diagonal field of view: 65.8° to 3.5°
Focus
Auto,semi-auto,manual
Zoom Speed
[Panoramic channel] No, [PTZ channel] approx. 5.6 s
Focal Length
[Panoramic channel] 2.8 mm, [PTZ channel] 6 to 150 mm
Aperture
[Panoramic channel] F1.0, [PTZ channel] F1.6

Illuminator
Supplement Light Range
[Panoramic channel] white light: up to 30 m, [PTZ channel] IR: up to 300 m
Smart Supplement Light
Yes

PTZ
Movement Range (Pan)
360° endless
Movement Range (Tilt)
[Panoramic channel] 12° to 24°, [PTZ channel] -20° to 90°
Pan Speed
[PTZ channel] pan speed: configurable from 0.1° to 160°/s, preset speed: 240°/s
Tilt Speed
[PTZ channel] tilt speed: configurable from 0.1° to 120°/s, preset speed 200°/s,[Panoramic channel] tilt speed configurable
Proportional Pan
[Panoramic channel] No, [PTZ channel] Yes
Presets
300
Patrol Scan
8 patrols, up to 32 presets for each patrol
Pattern Scan
4 pattern scans, record time over 10 minutes for each scan
Power-off Memory
Yes
Park Action
Preset,pattern scan,patrol scan,auto scan,tilt scan,random scan,frame scan,panorama scan
3D Positioning
Yes
PTZ Status Display
Yes
Preset Freezing
Yes
Scheduled Task
Preset,pattern scan,patrol scan,auto scan,tilt scan,random scan,frame scan,panorama scan,dome reboot,dome adjust,aux output

Video
Main Stream
[Panoramic channel] 50 Hz: 25 fps (3680 × 1656，3632 × 1632), 60 Hz: 30 fps (3680 × 1656，3632 × 1632)
[PTZ channel] 50 Hz: 50 fps (2688 × 1520, 2560 × 1440), 100 fps (1920 × 1080, 1280 × 960, 1280 × 720), 60 Hz: 60 fps (2688 × 1520, 2560 × 1440), 120 fps (1920 × 1080, 1280 × 960, 1280 × 720)
*High frame rate is supported under monitoring mode only.
Sub-Stream
[PTZ channel] 50 Hz: 25 fps (704 × 576,640 × 480,352 × 288), 60 Hz: 30 fps (704 × 480,640 × 480,352 × 240),[Panoramic channel] 50 Hz: 25 fps (1200 × 536、960×432), 60 Hz: 30 fps (1200 × 536,960 × 432)
Third Stream
[PTZ channel] 50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288), 60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240),[Panoramic channel] No
Video Compression
Main stream: H.265+/H.265/H.264+/H.264,
Sub-stream: H.265/H.264/MJPEG,
Third stream: H.265/H.264/MJPEG
Video Bit Rate
32 Kbps to 16 Mbps
H.264 Type
Baseline profile,Main profile,High profile
H.265 Type
Main profile
Scalable Video Coding (SVC)
H.264 and H.265 encoding
Region of Interest (ROI)
8 fixed regions for each stream

Audio
Audio Compression
G.711,G.722.1,G.726,MP2L2,PCM,AAC-LC,MP3
Audio Bit Rate
32 to 192 Kbps (MP2L2),16 to 64Kbps (AAC-LC),64 Kbps (G.711),16 Kbps (G.726),16 Kbps (G.722.1),8-48 Kbps (PCM)
Audio Sampling Rate
8 kHz,16 kHz,32 kHz,48 kHz
Environment Noise Filtering
Yes

Network
API
ONVIF (Profile S, Profile G, Profile T, Profile M),ISUP,ISAPI,SDK,OTAP
Security
Password protection,complicated password,HTTPS encryption,IP address filter,802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5),watermark,host authentication (MAC address),TPM 2.0 (FIPS 140-2 level 2)
Network Storage
NAS (NFS, SMB/CIFS),auto network replenishment (ANR)
Protocols
IPv4/IPv6,HTTP,HTTPS,802.1X,QoS,SMTP,UPnP,SNMP,DNS,DDNS,NTP,RTSP,RTCP,RTP,TCP/IP,UDP,IGMP,ICMP,DHCP,PPPoE,Bonjour,FTP
Simultaneous Live View
Up to 20 channels
User/Host
Up to 32 users. 3 user levels: administrator, operator, and user
Client
iVMS-4200,HikCentral Pro,Hik-Connect
Web Browser
Plug-in required live view: IE8+Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Safari 11+
Local service: Chrome 41.0+, Firefox 30.0+

Wide Dynamic Range (WDR)
[Bullet channel] 120 dB, [PTZ channel] 150 dB
Day/Night Switch
Day,night,auto,schedule
Image Enhancement
HLC,3D DNR
Privacy Mask
[Panoramic channel] 8 programmable polygon privacy masks, [PTZ channel] 24 programmable polygon privacy masks; mask color or mosaic configurable
Defog
Digital defog
Image Stabilization
EIS (Built-in gyroscope to improve EIS performance)
Regional Exposure
Yes
Regional Focus
[Panoramic channel] No, [PTZ channel] Yes
Image Settings
Saturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browser
Image Parameters Switch
Yes
SNR
≥ 52 dB

Supplement Detection
Satellite Positioning
No
Gyroscope
Yes
Compass
No

Interface
On-board Storage
Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 1 TB .
Built-in Speaker
1 built-in speaker
Ethernet Interface
1 RJ45 100M self-adaptive Ethernet port
Alarm
7 input(s), 2 output(s)
Audio
1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 KΩ ± 10%,
1 output (line out), line level, output impedance: 600 Ω
RS-485
1 RS-485 (Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)
Reset
Yes

Event
Basic Event
[PTZ channel & panoramic channel] alarm input and output, exception,[PTZ channel] video tampering alarm
Smart Event
Line crossing detection,intrusion detection,region entrance detection,region exiting detection,unattended baggage detection,object removal detection,loitering detection,people gathering detection,fast moving detection,parking detection
Linkage
[Panoramic channel] Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, audible warning, white light flashing, [PTZ channel] Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, and PTZ actions (such as preset, patrol scan, pattern scan)
Smart Linkage
Manual tracking, tracking takeover, linked tracking capture

Deep Learning Function
Face Capture
Detects up to 30 faces simultaneously,
Uploads face with background and closed-up face pictures
Face Comparison
Up to 10 face libraries. 30000 faces for each library. 150000 faces in total,
Recognizes face identity via face modeling, grading and comparing to those in face library,
Supports face library encryption
Road Traffic and Vehicle Detection
Smart Function:
Support license plate recognition of vehicles and motorcycles (only in checkpoint scenario)
Support vehicle attribute detection, including vehicle type, color, brand, driving direction, etc.
Support vehicle and non-vehicle counting
Blocklist and allowlist: up to 10,000 records
LPR Countries/Regions:
4 areas (Europe, Middle East, Asia-Pacific, Africa) and more than 124 countries/regions
Accuracy (Under recommended installation and lighting conditions):
License plate recognition rate ≥98%
Capture rate ≥99%
Driving direction accuracy rate ≥98%
Vehicle Capture Speed:
Front installation in checkpoint scenario: up to 120 km/h
Side installation: up to 80 km/h
Capture Mode: License Plate and Vehicle Mode, Vehicle Priority Mode
Multi-Target-Type Detection
Supports simultaneous detection and capture of human body, face and vehicle,
Gets 7 face features, 14 human body features and 8 vehicle features
Perimeter Protection
Line crossing detection, region entrance detection, intrusion detection, region exiting detection

Linkage and Tracking
Smart Tracking
Manual tracking, auto-tracking 3.0
Object Tracking
Support person arming. When the device detects the armed face or human body in the monitoring scene, it triggers alarms, and tracks and captures the target. During the tracking, the target location and other related information are uploaded.Support vehicle arming. When the device detects the armed vehicles in the monitoring scene, it triggers alarms, and tracks and captures the target. During the tracking, the target location and other related information are uploaded.

General
General Function
mirror,password protection
Power
36V, 2.5 A, PoE(802.3 bt), 42.5 to 57 V, 1.76 A
Operating Condition
-40 °C to 70 °C (-40 °F to 158 °F). Humidity 95% or less (non-condensing),For speaker: -30 °C to 55°C (-22°F to 131°F)
Wiper
Yes
Demist
Yes
Material
ADC12
Dimension
Ø290 mm × 453.2 mm (Ø11.42″ × 17.84″)
Weight
Approx. 10.5 kg ( 23.15 lb.)
Language
33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian

Approval
EMC
CE-EMC (EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3: 2013 + A1: 2019, EN 50130-4: 2011 + A1: 2014),RCM (AS/NZS CISPR 32: 2015),IC (ICES-003: Issue 7)
Safety
CB (IEC 62368-1: 2014 + A11),CE-LVD (EN 62368-1: 2014/A11: 2017)
Environment
CE-RoHS (2011/65/EU),WEEE (2012/19/EU),Reach (Regulation (EC) No 1907/2006)
Protection
IP67 (IEC 60529-2013),TVS 6000 V lightning protection, surge protection and voltage transient protection,IK10 (IEC 62262:2002, excluding glass window)
Anti-Corrosion Protection
NEMA 4X (NEMA 250-2018)
