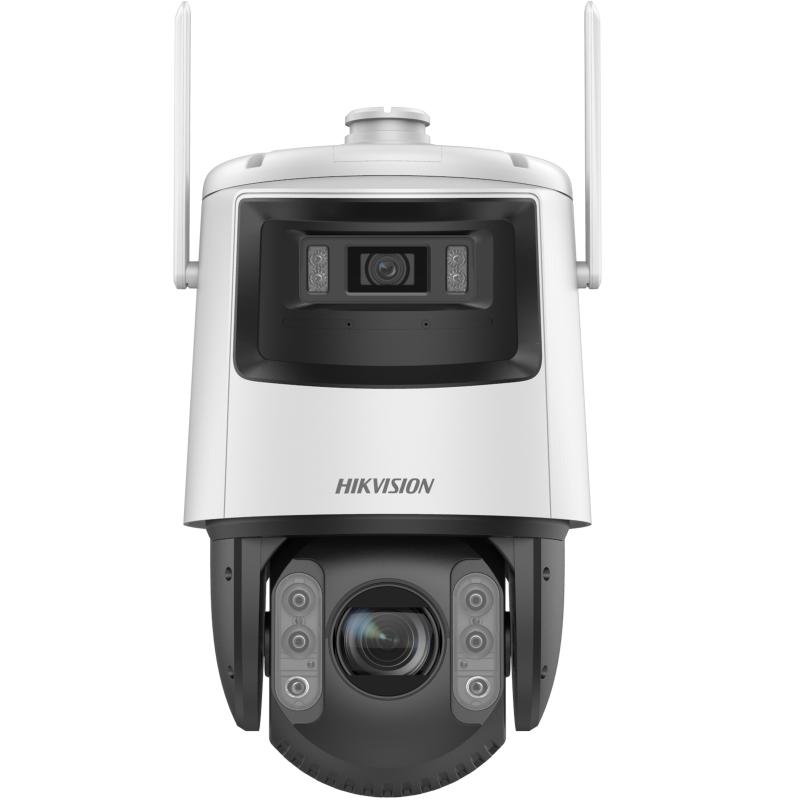

TandemVu 4+4MP 32x Low-power 4G-connection Speed Dome

Captures a large area and great details at the same time
High quality imaging with 4 MP resolution
Excellent low-light performance with ColorVu technology in bullet channel
Secures an expansive area with 32 × optical zoom and 16 × digital zoom
Supports WDR, HLC, BLC, 3D DNR, defog, regional exposure, regional focus, rapid focus
Expansive night view with up to 30 m IR distance in bullet channel, and 200 m IR distance in PTZ channel
Supports 12 VDC output
Supports scheduled sleep mode and low power sleep mode. The consumption reaches 0.5 W in sleep mode.

Available models:

DS-2SE7C432IWG-4G/14(F0)

DS-2SE7C432IWG-4G/14(F0)(LA)

DS-2SE7C432IWG-4G/14(F0)(JP)

Camera
Image Sensor[Bullet channel] 1/1.8″ Progressive Scan CMOS, [PTZ channel] 1/1.8″ Progressive Scan CMOS
Max. Resolution[Bullet channel] 2560 × 1440, [PTZ channel] 2560 × 1440
Min. Illumination[Bullet channel]: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with light; [PTZ channel]: Color: 0.005 Lux @ (F1.5, AGC ON), B/W: 0.001 Lux @ (F1.5, AGC ON), 0 Lux with IR
Shutter Speed1 s to 1/30,000 s
Day & NightICR
Zoom[PTZ channel] 32 × optical, 16 × digital
Slow Shutteryes

Lens
Focal Length[Bullet channel] 2.8 mm, [PTZ channel] 5.9 to 188.8 mm
FOV[Bullet channel] horizontal field of view: 108°, vertical field of view: 56°, diagonal field of view: 134°, [PTZ channel] horizontal field of view: 60.2° to 2.3°, vertical field of view: 35.2° to 1.3°, diagonal field of view: 67.4° to 2.6°
FocusAuto,semi-auto,manual
Aperture[Bullet channel]: F1.0; [PTZ channel]: F1.5
Zoom Speed[PTZ channel]: approx. 5.6 s

Illuminator
Supplement Light Type[Bullet channel] IR, [PTZ channel] IR
Supplement Light Range[Bullet channel] IR: up to 30 m, [PTZ channel] IR: up to 200 m
Smart Supplement LightYes

Video
Main Stream[Bullet channel] 50 Hz: 25 fps (2688 × 1520, 2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720), 60 Hz: 30 fps (2688 × 1440, 2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720),[PTZ channel] 50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720), 60 Hz: 24 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720)
Sub-Stream[Bullet channel] 50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288), 60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240),[PTZ channel] 50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288), 60 Hz: 24 fps (704 × 480, 640 × 480, 352 × 240)
Third Stream[Bullet channel] 50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288), 60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240),[PTZ channel] 50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288), 60 Hz: 24 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)
Video CompressionMain stream: H.265+/H.265/H.264+/H.264,
Sub-stream: H.265/H.264/MJPEG,
Third stream: H.265/H.264/MJPEG
Video Bit Rate32 Kbps to 16 Mbps
H.264 TypeBaseline profile,Main profile,High profile
H.265 TypeMain profile
Scalable Video Coding (SVC)H.264 and H.265 encoding
Region of Interest (ROI)8 fixed regions for each stream

Audio
Audio CompressionG.711,G.722.1,G.726,MP2L2,PCM,MP3,AAC-LC
Audio Bit RateMP2L2：32 kbps，40 kbps，48 kbps，56 kbps，64 kbps，80 kbps，96 kbps，112 kbps，128 kbps，144 kbps，160 kbps，192 kbps AAC-LC：16 kbps，32 kbps，64 kbps； MP3：8 kbps,16 kbps，24 kbps，32 kbps，40 kbps，48 kbps，56 kbps，64 kbps，80 kbps，96 kbps，112 kbps，128 kbps，144 kbps，160 kbps，192 kbps，224 kbps，256 kbps，320 kbps
Audio Sampling RateAAC-LC: 16 kHz, 32 kHz, 48 kHz,MP2L2: 16 kHz, 32 kHz, 48 kHz,PCM: 8 kHz, 16 kHz, 32 kHz, 48 kHz,MP3: 8 kHz, 16 kHz, 32 kHz, 48 kHz
Environment Noise FilteringYes

Network
ProtocolsTCP/IP,ICMP,HTTP,HTTPS,802.1X,QoS,FTP,SMTP,UPnP,SNMP,DNS,DDNS,NTP,RTSP,RTCP,RTP,UDP,IPv4/IPv6,IGMP,DHCP,Bonjour,WebSocket,WebSockets
Simultaneous Live View20
APIONVIF (Profile S, Profile G, Profile T),ISAPI,ISUP,SDK
User/Host32
SecurityPassword protection,complicated password,HTTPS encryption,802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5),IP address filter
Network StorageNAS (NFS，SMB/ CIFS), ANR
ClientiVMS-4200,Hik-Connect
Web BrowserIE 10+, Chrome 57+, Firefox 52+, Safari 12+

Wireless (Mobile Communication)
Mobile Communication Type4G
FrequencyLTE FDD/WCDMA: B1
LTE FDD/GSM: B3
LTE FDD/WCDMA/GSM: B5/B7
LTE FDD: B7/B20/B28
LTE TDD: B38/B40/B41;LTE FDD/WCDMA: B1/B4
LTE FDD/WCDMA/GSM: B2/B3/B5/B8
LTE FDD: B12/B17/B28/B66
LTE TDD: B38/B40;LTE FDD/WCDMA: B1/B8
LTE FDD: B3/B11/B18/B19/B21/B26/B28
LTE TDD: B41
StandardLTE FDD/WCDMA, LTE FDD/GSM, LTE FDD/WCDMA/GSM, LTE FDD, LTE TDD;LTE FDD/WCDMA, LTE FDD/WCDMA/GSM, LTE FDD, LTE TDD;LTE FDD/WCDMA, LTE FDD, LTE TDD

Interface
Ethernet InterfaceRJ45, self-adaptive 10M/100M Ethernet port
On-board StorageBuilt-in memory card slot, support Micro SD/Micro SDHC/Micro SDXC, up to 256 GB
Audio1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 KΩ ± 10%,
1 output (line out), line level, output impedance: 600 Ω
Alarm2 input(s), 1 output(s)
Resetyes

Event
Basic Event[PTZ channel] motion detection, video tampering alarm,[PTZ channel & bullet channel] alarm input and output, exception
Smart Event[PTZ channel] line crossing detection, intrusion detection, region entrance detection, region exiting detection
Linkage[Bullet channel] Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, and trigger recording, [PTZ channel] Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, and PTZ actions (such as preset, patrol scan, pattern scan)
Smart Tracking[PTZ channel] yes
Smart LinkageManual tracking, auto tracking, tracking takeover, track in turn

General
Power12 VDC ± 25%, max. 28 W
DimensionØ 220 mm × 382.1 mm (Ø 8.66″ × 15.04″)
WeightApprox. 6 kg (13.23 lb.)
MaterialADC12
Operating Condition-30 °C to 65 °C (-22 °F to 149 °F). Humidity 90% or less (non-condensing)
General Functionmirror,password protection,watermark,IP address filter
DemistDemist by heating the glass
