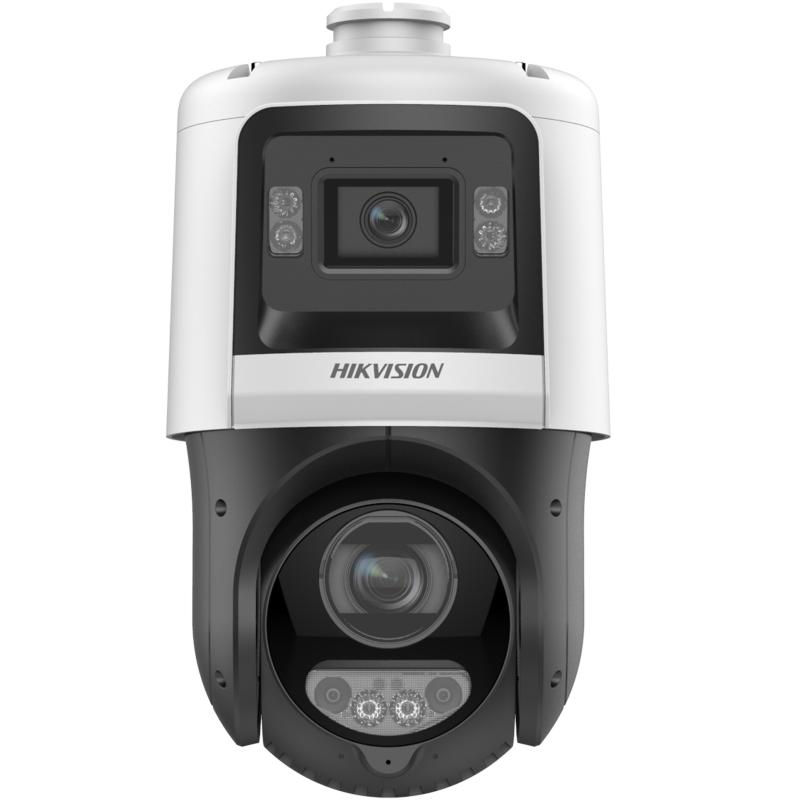

TandemVu 4+4MP 25X ColorVu & IR Acusense Network Speed Dome with R/B Strobe light

Captures a large area and great details at the same time
High quality imaging with 4 MP resolution
Focuses on human and vehicle targets classification based on deep learning
Excellent low-light performance with powered-by-DarkFighter technology and ColorVu technology
Secures an expansive area with 25 × optical zoom and 16 × digital zoom
Expansive night view with up to 100 m IR distance & 30 m white light
Build-in speaker and dual-microphone for real-time high quality audio security
Active red and blue strobe light and audio alarm to warn intruders off
Supports 12 VDC & PoE+

Available models:

DS-2SE4C425MWG-E/RB/14(F0)

Camera
Image Sensor[Bullet channel] 1/2.8″ Progressive Scan CMOS, [PTZ channel] 1/2.8″ Progressive Scan CMOS
Max. Resolution[Bullet channel] 2560 × 1440, [PTZ channel] 2560 × 1440
Min. Illumination[Bullet channel]: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with light; [PTZ channel]: Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0.001 Lux @ (F1.6, AGC ON), 0 Lux with IR
Shutter Speed1 s to 1/30,000 s
Day & NightICR
Zoom[PTZ channel] 25 × optical, 16 × digital
Slow Shutteryes

Lens
Focal Length[Bullet channel] 2.8 mm, [PTZ channel] 5 to 125 mm
FOV[Bullet channel] horizontal field of view: 96.1°, vertical field of view: 52.1°, diagonal field of view: 113.3°, [PTZ channel] horizontal field of view: 55° to 2.4°, vertical field of view: 33° to 1.4°, diagonal field of view: 61.5° to 2.8°
Focusauto,manual,semi-auto
Aperture[Bullet channel]: F1.0; [PTZ channel]: F1.6
Zoom Speed[PTZ channel]: approx. 2.3 s

PTZ
Movement Range (Pan)360° endless
Movement Range (Tilt)[Bullet channel] 9° to 21° (manually adjust), [PTZ channel] -15° to 90°
Pan SpeedPan speed: configurable from 0.1° to 80°/s, preset speed: 80°/s
Tilt SpeedTilt speed: configurable from 0.1° to 80°/s, preset speed 80°/s
Proportional Panyes
Presets300
Preset Freezingyes
Patrol Scan8 patrols, up to 32 presets for each patrol
Pattern Scan4 pattern scans
Park Actionpreset,frame scan,tilt scan,patrol scan,random scan,auto scan,pattern scan,panorama scan
3D Positioningyes
PTZ Status Displayyes
Scheduled TaskPreset,pattern scan,patrol scan,tilt scan,auto scan,random scan,frame scan,panorama scan,dome reboot,dome adjust,aux output
Power-off Memoryyes

Video
Main Stream[Bullet channel] 50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720), 60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720),[PTZ channel] 50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720), 60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720)
Sub-Stream[Bullet channel]:
50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288)
60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240)
[PTZ channel]:
50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288)
60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240)
Third Stream[Bullet channel]:
50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288)
60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)
[PTZ channel]:
50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288)
60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)
Video CompressionH.265,H.264,MJPEG
Video Bit Rate32 kbps to 16384 kbps
H.264 Typemain profile,baseline profile,high profile
H.265 Typemain profile
Scalable Video Coding (SVC)yes
Region of Interest (ROI)8 fixed regions for each stream

Audio
Audio CompressionG.711,G.722.1,G.726,MP2L2,PCM,MP3,AAC-LC
Audio Bit Rate64 Kbps (G.711),16 Kbps (G.722.1),16 Kbps (G.726),32 to 192 Kbps (MP2L2),16 to 64Kbps (AAC-LC),8 to 320 Kbps (MP3)
Audio Sampling RateMP2L2: 16 kHz, 32kHz, 48 kHz,AAC-LC: 16 kHz, 32kHz, 48 kHz,PCM: 8 kHz, 16 kHz, 32kHz, 48 kHz,MP3: 8 kHz, 16 kHz, 32kHz, 48 kHz
Environment Noise Filteringyes

Network
ProtocolsDHCP,FTP,HTTPS,TCP/IP,ICMP,HTTP,SFTP,DNS,DDNS,RTP,RTSP,RTCP,PPPoE,NTP,UPnP,SMTP,SNMP,IGMP,802.1X,QoS,IPv4/IPv6,UDP,Bonjour,WebSocket,WebSockets
Simultaneous Live View20
APIONVIF (Profile S, Profile G, Profile T),ISAPI,SDK,ISUP
User/Host32
Security802.1X authenticated access,MAC address binding,Authenticated username and password,IP address filter,HTTPS encryption
Network StorageNAS (NFS, SMB/CIFS),auto network replenishment (ANR)
ClientiVMS-4200,HikCentral Pro,Hik-Connect
Web BrowserIE 11, Chrome 80+, Firefox 80+, Safari 13+

Image Parameters SwitchYes
Image Settingssharpness,saturation,brightness,contrast
Day/Night Switchday, night, auto, scheduled-switch
Wide Dynamic Range (WDR)120 dB WDR
SNR＞52dB
DefogDigital defog
Image StabilizationEIS
Image EnhancementBLC,HLC,3D DNR
Privacy Mask[Bullet channel] 8 programmable polygon privacy masks, [PTZ channel] 24 programmable polygon privacy masks; mask color or mosaic configurable
Regional Focusyes
Regional Exposureyes

Interface
Ethernet InterfaceRJ45, self-adaptive 10M/100M Ethernet port
On-board StorageBuilt-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
Audio1 audio input, 2.0 to 2.4Vp-p, 1k Ohm±10%, 1 audio output, line level, impedance: 600 Ω
Alarm1 alarm input, 1 alarm output
Resetyes
Built-in Microphone2 built-in microphones,picking up sounds in the radius up to 8 meters
Built-in Speaker1 built-in speaker, with effective distance reaching max. 8 meters

Event
Basic EventMotion detection,video tampering alarm,exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error),alarm input and output,audio exception detection
Smart Eventaudio exception detection,region exiting detection,region entrance detection,intrusion detection,Line crossing detection
Linkagered and blue strobe light and audio alarm

Deep Learning Function
Face CaptureDetects up to 5 faces simultaneously,
Uploads face with background and closed-up face pictures,Supports detecting, tracking, capturing, grading, selecting of face in motion, and outputs the best face picture
Regional People CountingSupports up to 8 detection regions, and independent arming schedule and linkage method. Supports 3 detection modes: people density detection, number of people exception detection, waiting time exception detection

General
Power12 VDC , 3.33 A PoE: IEEE 802.3at, 42.5 to 57.2 V, 0.6 A
DimensionØ166 mm × 294.8 mm (Ø6.5″ × 11.6″)
WeightApprox. 3.0 kg (16.5 lb.)
MaterialADC12
Operating Condition-30 °C to 65 °C (-22 °F to 149 °F). Humidity 95% or less (non-condensing)
General Functionmirror, password protection, watermark, IP address filter
DemistDemist by heating the glass
