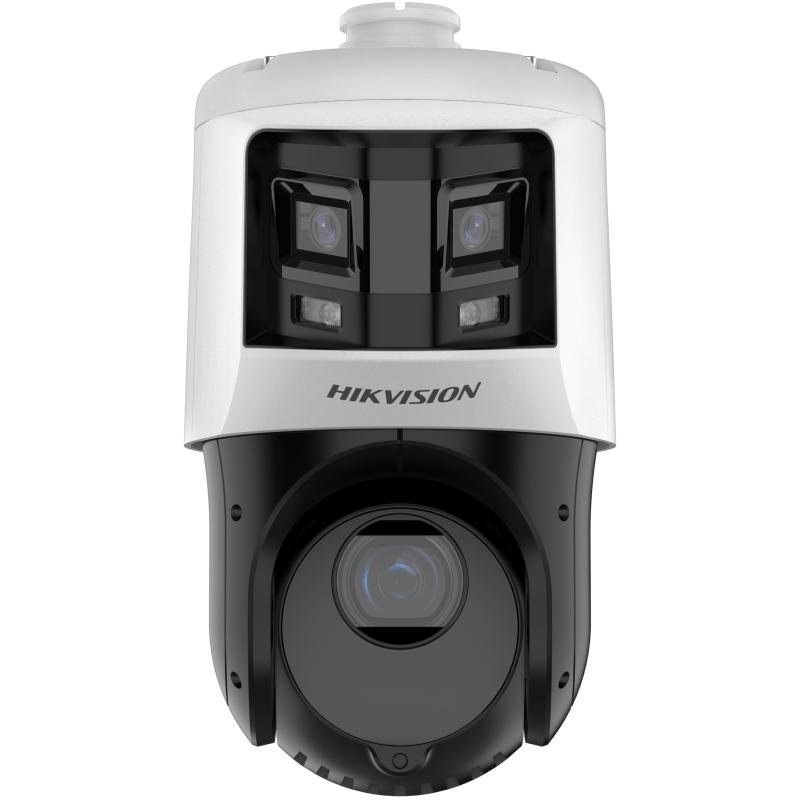

TandemVu 6+2MP 25X ColorVu & IR Acusense Panoramic Network Speed Dome

Captures a large area and great details at the same time
High quality panoramic imaging with 6 MP resolution and details imaging with 2 MP
Excellent low-light performance with powered-by-DarkFighter technology and ColorVu technology
Secures an expansive area with 25× optical zoom and 16× digital zoom
Expansive night view with up to 100 m IR distance & 30 m white light
Supports 12V DC & PoE+
Focuses on human and vehicle targets classification based on deep learning

Available models:

DS-2SE4C225MWG-E/26(F0)

Camera
Image Sensor[Bullet channel]: 1/2.5″ Progressive Scan CMOS; [PTZ channel]: 1/2.8″ progressive scan CMOS
Max. Resolution[Bullet channel] 3632 × 1632, [PTZ channel] 1920 × 1080
Min. Illumination[Bullet channel]: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with light; [PTZ channel]: Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0.001 Lux @ (F1.6, AGC ON), 0 Lux with IR
Shutter Speed1 s to 1/30,000 s
Day & NightICR
Zoom[PTZ channel] 25 × optical, 16 × digital
Slow Shutteryes

Lens
Focal Length[Bullet channel]: 2.8 mm; [PTZ channel]: 4.8 to 120 mm, 25 × optical
FOV[Bullet channel]: Horizontal field of view: 180±10°, Vertical field of view: 80±5°; [PTZ channel]:
Horizontal field of view: 54.8° to 2.8° (wide-tele),
Vertical field of view: 31.4° to 1.5° (wide-tele),
Diagonal field of view: 62.2° to 3.2° (wide-tele)
Focussemi-auto||manual||auto
Aperture[Bullet channel]: F1.0; [PTZ channel]: F1.6
Zoom Speed[PTZ channel]: approx. 3.6 s

PTZ
Movement Range (Pan)360°
Movement Range (Tilt)-15° to 90° (auto flip)
Pan Speedpan speed: configurable from 0.1° to 80°/s; preset speed: 80°/s
Tilt Speedtilt speed: configurable from 0.1° to 80°/s, preset speed 80°/s
Proportional Panyes
Presets300
Preset Freezingyes
Patrol Scan8 patrols, up to 32 presets for each patrol
Pattern Scan4 pattern scans
Park Actionpreset||pattern scan||patrol scan||auto scan||tilt scan||random scan||frame scan||panorama scan
3D Positioningyes
PTZ Status Displayyes
Scheduled Taskpreset||pattern scan||patrol scan||auto scan||tilt scan||random scan||frame scan||panorama scan||dome reboot||dome adjust||aux output
Power-off Memoryyes

Video
Main Stream[Bullet channel]
50 Hz：25 fps（3632 × 1632，3680 × 1656）
60 Hz：30 fps（3632 × 1632，3680 × 1656）
[PTZ channel]
50 Hz：25 fps（1920 × 1080，1280 × 960，1280 × 720）
60 Hz：30 fps（1920 × 1080，1280 × 960，1280 × 720）
Sub-Stream[Bullet channel]
50 Hz：25 fps（1200 × 536，960 × 432）
60 Hz：30 fps（1200 × 536，960 × 432）
[PTZ channel]
50 Hz：25 fps（704 × 576，640 × 480，352 × 288）
60 Hz：30 fps（704 × 480，640 × 480，352 × 240）
Third Stream[Bullet channel]
No
[PTZ channel]
50 Hz：25 fps（1920 × 1080，1280 × 960，1280 × 720，704 × 576，640 × 480，352 × 288）
60 Hz：30 fps（1920 × 1080，1280 × 960，1280 × 720，704 × 480，640 × 480，352 × 240）
Video CompressionH.265||H.264||MJPEG
Video Bit Rate32 kbps to 16384 kbps
H.264 Typebaseline profile||main profile||high profile
H.265 Typemain profile
Scalable Video Coding (SVC)H.264 and H.265 encoding
Region of Interest (ROI)8 fixed regions for each stream

Audio
Audio CompressionG.711,G.722.1,G.726,MP2L2,PCM,AAC-LC,MP3
Audio Bit RateMP2L2: 32 Kbps, 40 Kbps, 48 Kbps, 56 Kbps, 64 Kbps, 80 Kbps, 96 Kbps, 112 Kbps, 128 Kbps, 144 Kbps, 160 Kbps, 192 Kbps, AAC-LC: 16 Kbps, 32 Kbps, 64 Kbps , MP3: 8Kbps, 16Kbps, 24Kbps, 32Kbps, 40Kbps, 48Kbps, 56Kbps, 64Kbps, 80Kbps, 96Kbps, 112Kbps, 128Kbps, 160Kbps, 192Kbps, 224Kbps, 256Kbps, 320Kbps
Audio Sampling RateMP2L2: 16 kHz, 32 kHz, 48 kHz; AAC-LC: 16 kHz, 32 kHz, 48 kHz; PCM: 8 kHz, 16 kHz, 32 kHz, 48 kHz; MP3: 8 kHz, 16 kHz, 32 kHz, 48 kHz
Environment Noise Filteringyes

Network
ProtocolsIPv4/IPv6||HTTP||HTTPS||802.1x||Qos||FTP||SMTP||UPnP||SNMP||DNS||DDNS||NTP||RTSP||RTCP||RTP||TCP/IP||UDP||IGMP||ICMP||DHCP||PPPoE||Bonjour||WebSocket||WebSockets
Simultaneous Live View20
APIISAPI,SDK,ISUP,ONVIF
User/Host32
SecurityAuthenticated username and password||MAC address binding||HTTPS encryption||802.1X authenticated access||IP address filter
Network StorageNAS (NFS, SMB/ CIFS)|| ANR
ClientiVMS-4200||Hik-Connect
Web BrowserIE11+, Chrome57+, Firefox52+, Safari12+, Edge79.0.309.65+

Image Parameters SwitchYes
Image Settingssharpness, saturation, brightness, contrast
Day/Night Switchday, night, auto, scheduled-switch
Wide Dynamic Range (WDR)120 dB
SNR≥ 52 dB
DefogDigital defog
Image StabilizationEIS
Image EnhancementBLC,HLC,3D DNR
Privacy Mask[Bullet channel] 8 programmable polygon privacy masks, [PTZ channel] 24 programmable polygon privacy masks; mask color or mosaic configurable
Regional FocusYes
Regional ExposureYes

Interface
Ethernet InterfaceRJ45, self-adaptive 10M/100M Ethernet port
On-board StorageBuilt-in memory card slot, support Micro SD/Micro SDHC/Micro SDXC, up to 256 GB
Audio1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 KΩ ± 10%; 1 output (line out), line level, output impedance: 600 Ω
Alarm1 alarm input, 1 alarm output
Resetyes

Event
Basic EventMotion detection,video tampering alarm,exception (IP address conflict, HDD full, illegal login, HDD error, network disconnected, Abnormal Reboot),alarm input and output
Smart Eventaudio exception detection,region entrance detection,region exiting detection,intrusion detection,Line crossing detection
LinkageUpload to FTP/NAS/memory card,notify surveillance center,send email,trigger alarm output,trigger recording,audible warning,and PTZ actions (such as preset, patrol scan, pattern scan)
Smart LinkagePanorama Linkage

Deep Learning Function
Face CaptureDetects up to 30 faces simultaneously,
Supports detecting, tracking, capturing, grading, selecting of face in motion, and outputs the best face picture
Regional People CountingYes

General
Power12VDC, PoE+
DimensionØ 166 mm × 375 mm (Ø 6.5″ × 14.7″)
WeightApprox. 2.4 kg (13.2 lb.)
MaterialADC12
Operating Condition-30℃ to 65℃ (-22°F to 149°F) ||humidity lower than 90%RH
General Functionmirror,password protection,watermark
DemistDemist by heating the glass
Power Consumption and CurrentMax. 24 W, including max. 2.6 W for heater and max. 11 W for supplement light
