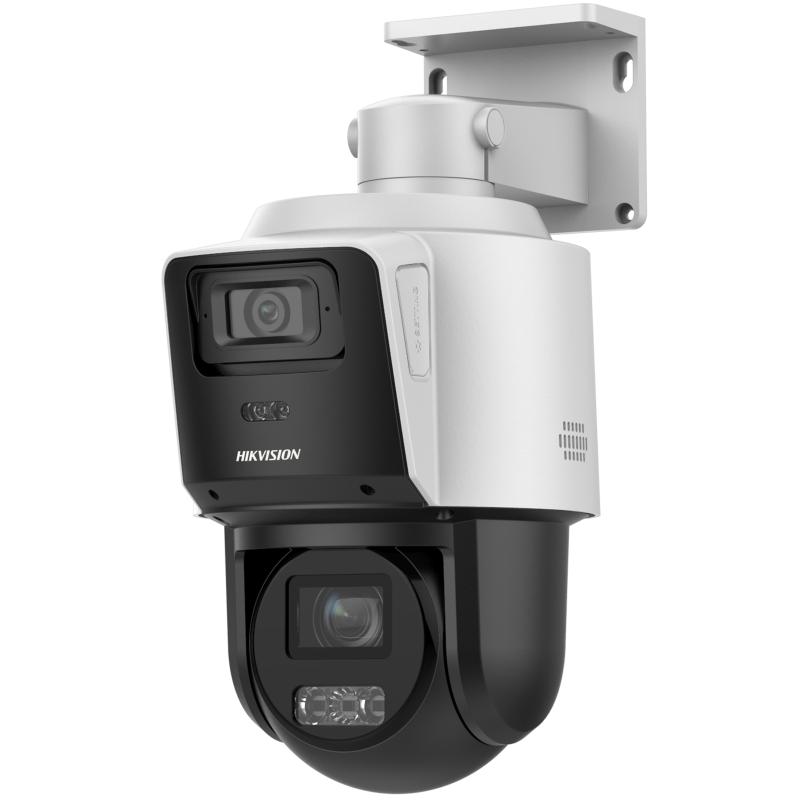

TandemVu 2MP+2MP 4X POE PTZ Network Camera

Available models:

Camera DS-2SE3C204MWG-E/12(2.8mm)

Camera
Image Sensor[Bullet channel]: 1/2.8″ Progressive Scan CMOS; [PTZ channel]: 1/2.8″ progressive scan CMOS
Min. Illumination
[Bullet channel]: Color: 0.03 Lux @ (F2.0, AGC ON), B/W: 0.01 Lux @ (F2.0，AGC ON), 0 Lux with IR;
[PTZ channel]: Color: 0.01 Lux @ (F1.5, AGC ON), B/W: 0.005Lux @ (F1.5, AGC ON)，0 Lux with IR;
Shutter Speed1 s to 1/30,000 s
Slow Shutteryes
Day & NightICR
Zoom[PTZ channel] 4 × optical, 16 × digital
Max. Resolution[Bullet channel] 1920 × 1080, [PTZ channel] 1920 × 1080

Lens
Focusauto,manual,semi-auto
Focal Length[Bullet channel]: 2.8 mm; [PTZ channel]: 2.8 to 12 mm, 4 × optical
Zoom Speed[PTZ channel]: approx. 3.3 s
FOV[Bullet channel] horizontal field of view: 104.9°, vertical field of view: 57.9°, diagonal field of view: 122.8°, [PTZ channel] horizontal field of view: 92° to 33°, vertical field of view: 49° to 18.2°, diagonal field of view: 104° to 37.7°
Aperture[Bullet channel] F2.0, [PTZ channel] F1.5 to F2.9

Illuminator
Supplement Light Type[Bullet channel] Hybrid (IR and White Light), [PTZ channel] IR
Smart Supplement LightYes
Supplement Light Range
[PTZ channel]: IR Distance: up to 40 m;
[Bullet channel]: IR Distance: up to 30 m; White Light Distance: 30 m

PTZ
Movement Range (Pan)0° to 350°
Movement Range (Tilt)[Bullet channel] 7° to 17° (manually adjust), [PTZ channel] -5° to 90°
Pan Speedpan speed: configurable from 0.1° to 30°/s; preset speed: 30°/s
Tilt Speedtilt speed: configurable from 0.1° to 30°/s, preset speed 30°/s
Proportional Panyes
Presets300
Patrol Scan8 patrols, up to 32 presets for each patrol
Power-off Memoryyes
Park Actionpreset,patrol scan
3D Positioningyes
PTZ Status Displayyes
Preset Freezingyes
Scheduled Taskdome reboot,preset,patrol scan,dome adjust,aux output

Audio
Audio CompressionG.711,G.722.1,G.726,MP2L2,PCM,MP3,AAC
Audio Bit RateMP2L2: 32 kbps, 40 kbps, 48 kbps, 56 kbps, 64 kbps, 80 kbps, 96 kbps, 112 kbps, 128 kbps, 144 kbps, 160 kbps; AAC : 16 kbps, 32 kbps, 64 kbps; MP3: 8 kbps, 16 kbps, 32 kbps, 40 kbps, 48 kbps, 56 kbps, 64 kbps, 80 kbps, 96 kbps, 112 kbps, 128 kbps, 144 kbps, 160 kbps
Audio Sampling RateMP2L2: 16 kHz,AAC-LC: 16 kHz,PCM: 8 kHz,16 kHz,MP3: 8 kHz,16 kHz
Environment Noise Filteringyes

Network
APIONVIF (Profile S, Profile G, Profile T),ISAPI,SDK,ISUP
Network StorageNAS (NFS, SMB/ CIFS), ANR
ProtocolsTCP/IP,SMTP,RTSP,FTP,WebSockets,IGMP,WebSocket,Qos,RTCP,HTTPS,PPPoE,SNMP,NTP,RTP,UDP,DNS,HTTP,DHCP,Bonjour,802.1x,IPv4/IPv6,DDNS,ICMP,UPnP
Simultaneous Live View20
User/Host32
Security802.1X authenticated access,MAC address binding,Authenticated username and password,IP address filter,HTTPS encryption
ClientiVMS-4200,Hik-Connect
Web BrowserIE 10+, Chrome 57+, Firefox 52+, Safari 12+

Image Settingssharpness, saturation, brightness, contrast
Wide Dynamic Range (WDR)120 dB
SNR≥ 52 dB
DefogDigital defog
Day/Night Switchday, night, auto, scheduled-switch
Image StabilizationEIS
Image EnhancementBLC,HLC,3D DNR
Privacy Mask[Bullet channel] 24 programmable polygon privacy masks, [PTZ channel] 24 programmable polygon privacy masks
Regional Focus[Bullet channel] No, [PTZ channel] Yes
Regional Exposure[Bullet channel] No, [PTZ channel] Yes
Image Parameters SwitchYes

Interface
Ethernet InterfaceRJ45, self-adaptive 10M/100M Ethernet port
On-board StorageBuilt-in memory card slot, support Micro SD/SDHC/SDXC, up to 512 GB
Resetyes

Event
Basic EventMotion detection,video tampering alarm,exception,alarm input and output
Smart Eventaudio exception detection,region entrance detection,region exiting detection,intrusion detection,Line crossing detection
Linkage[Bullet channel] Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, and trigger recording, [PTZ channel] Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, and PTZ actions (such as preset, patrol scan, pattern scan)

General
General Functionmirror,password protection,watermark,IP address filter
Power12VDC, PoE+
Operating Condition-30 °C to 50 °C (-22 °F to 122 °F). Humidity 95% or less (non-condensing)
DemistDemist by heating the glass
MaterialPC
Dimension311.5 mm × 223.5 mm × 156 mm (12.26″ × 8.80″ × 6.14″)
WeightApprox. 1.37 kg (3.02 lb.)
