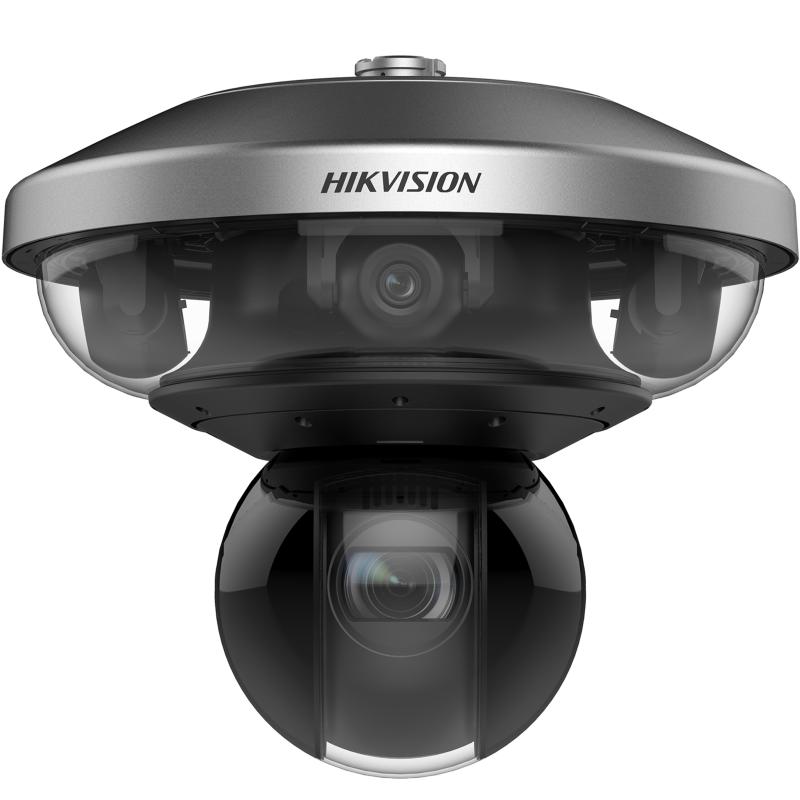

4MPx4 360° Panoramic & 4MP 36x PTZ Camera

Captures a large area and great details at the same time
24/7 colorful imaging and excellent low-light performance
Motorized pan, tilt and rotation in 4 panoramic lenses for flexible adjustment
4 adjustable lenses in one camera cover up to 360° field of view, ensuring no blind area monitoring and the monitoring tilt angle can be adjusted
Clear imaging against strong back light due to 120 dB(panorama) and 150 dB(PTZ) WDR technology
High quality imaging with 4 MP resolution for both panoramic channel and PTZ channel
Secures an expansive area with 36 × optical zoom and 16 × digital zoom
Supports deep learning functions
Water and dust resistant (IP67) and vandal resistant (IK10)

Available models: DS-2DP7D436IXG1-LEF/416(F0)

Camera
Image Sensor
[Panoramic channel] 1/1.8″ Progressive Scan CMOS, [PTZ channel] 1/1.8″ Progressive Scan CMOS
Max. Resolution
[Panoramic channel] 2688 × 1520, [PTZ channel] 2688 × 1520
Min. Illumination
Color: 0.0005 Lux @ (F1.0, AGC ON),
[PTZ channel] Color: 0.0005 Lux @ (F1.2, AGC ON), B/W: 0.0001 Lux @ (F1.2, AGC ON), 0 lux with IR
Shutter Speed
1/30 s to 1/30000 s
Day & Night
IR cut filter
Zoom
36 × optical,16 × digital
Slow Shutter
Yes

Lens
Focal Length
[Panoramic channel] 2.8 mm, [PTZ channel] 6-216 mm
FOV
[Panoramic channel] horizontal field of view: 106.3°, vertical field of view: 56.2°, diagonal field of view: 131.3°,
[PTZ channel] horizontal field of view: 59° to 2°, vertical field of view: 34.2° to 1.1°, diagonal field of view: 67.1° to 2.3°
Focus
Auto,semi-auto,manual
Aperture
[Panoramic channel] Max. F1.0, [PTZ channel] Max. F1.36
Zoom Speed
Approx. 4.8 s

PTZ
Movement Range (Pan)
[PTZ channel] 0° to 360°,[Panoramic channel] 0° to 175°
Movement Range (Tilt)
[Panoramic channel] 9° to 65°, [PTZ channel] -20° to 90°
Movement Range (Rotate)
[Panoramic channel] -90° to 90°
Pan Speed
Pan speed: configurable from 0.1° to 700°/s, preset speed: 550°/s
Tilt Speed
Tilt speed: configurable from 0.1° to 300°/s, preset speed 300°/s
Proportional Pan
[Panoramic channel] No, [PTZ channel] Yes
Presets
300
Preset Freezing
Yes
Patrol Scan
8 patrols, up to 32 presets for each patrol
Pattern Scan
4 pattern scans, record time over 10 minutes for each scan
Park Action
Preset,pattern scan,patrol scan,auto scan,tilt scan,random scan,frame scan,panorama scan
3D Positioning
Yes
PTZ Status Display
Yes
Scheduled Task
Preset,pattern scan,patrol scan,auto scan,tilt scan,random scan,frame scan,panorama scan,dome reboot,dome adjust,aux output
Power-off Memory
Yes

Video
Main Stream
[PTZ channel] Channel 1:
50 Hz: 50 fps (2688 × 1520, 2560 × 1440), 100 fps (1920 × 1080, 1280 × 960, 1280 × 720)
60 Hz: 60 fps (2688 × 1520, 2560 × 1440), 120 fps (1920 × 1080, 1280 × 960, 1280 × 720)
[Panoramic channel] Channel 2,3,4,5:
50 Hz: 50 fps (2688 × 1520, 2560 × 1440, 1920 × 1080, 1280 × 960)
60 Hz: 60 fps (2688 × 1520, 2560 × 1440, 1920 × 1080, 1280 × 960)
Sub-Stream
50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288)
60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240)
Third Stream
50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288)
60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)
Video Compression
Main stream: H.265+/H.265/H.264+/H.264,
Sub-stream: H.265/H.264/MJPEG,
Third stream: H.265/H.264/MJPEG
Video Bit Rate
32 Kbps to 16 Mbps
H.264 Type
Baseline profile,Main profile,High profile
H.265 Type
Main profile
Region of Interest (ROI)
8 fixed regions for each stream

Network
Protocols
IPv4/IPv6,HTTP,HTTPS,802.1X,QoS,SMTP,UPnP,SNMP,DNS,DDNS,NTP,RTSP,RTCP,RTP,TCP/IP,UDP,IGMP,ICMP,DHCP,PPPoE,Bonjour,FTP
Simultaneous Live View
Up to 20 channels
API
ONVIF (Profile S, Profile G, Profile T),ONVIF (Profile M),ISAPI,SDK,ISUP,EZVIZ
User/Host
Up to 32 users. 3 user levels: administrator, operator, and user
Security
Password protection,complicated password,IP address filter,HTTPS encryption,802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5),host authentication (MAC address),watermark
Network Storage
NAS (NFS, SMB/CIFS),auto network replenishment (ANR)
Client
iVMS-4200,HikCentral Pro,Hik-Connect
Web Browser
IE 10+, Chrome 57+, Firefox 52+, Safari 12+

Image Parameters Switch
Yes
Image Settings
Saturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browser
Day/Night Switch
Day,night,auto,schedule
Wide Dynamic Range (WDR)
120 dB
SNR
≥ 52 dB
Defog
Digital defog
Image Stabilization
EIS (Built-in gyroscope to improve EIS performance)
Image Enhancement
HLC,3D DNR
Privacy Mask
mask color or mosaic configurable,24 programmable polygon privacy masks
Regional Focus
Yes
Regional Exposure
Yes

Interface
Ethernet Interface
1 RJ45 100M self-adaptive Ethernet port
On-board Storage
Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 1024 GB
Audio
1 input (line in), two-core terminal, max. input amplitude: 3.3 vpp, input impedance: 4.7 KΩ,1 output (line out), two-core terminal, max. output amplitude: 3.3 vpp, output impedance: 4.7K Ω
Alarm
7 input(s), 2 output(s)
RS-485
1 RS-485 (Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)
Reset
Yes

Event
Basic Event
Motion detection,video tampering alarm,exception,alarm input and output
Linkage
Upload to FTP/NAS/memory card,notify surveillance center,send email,trigger alarm output,trigger recording,trigger capture
Smart Tracking
Manual tracking,auto-tracking,panorama tracking
Smart Linkage
3D positioning, manual tracking, auto tracking, linked tracking capture

Deep Learning Function
Multi-Target-Type Detection
[PTZ channel] Supports simultaneous detection and capture of human body and face
Perimeter Protection
Line crossing detection;intrusion detection;region entrance detection;region exiting detection

General
Power
36 VDC ± 20%%, max. 105 W,including max. 12 W for IR,PoE(802.3bt) 42.5-57V| 2.12A
Dimension
Ø402.37 mm × 363.22 mm (Ø15.84″ × 14.3″)
Weight
Weight Approx. 9.67 kg (21.32 lb.) With Package Weight Approx. 12.69 kg (27.98 lb.)
Material
ADC12
Operating Condition
-40 °C to 70 °C (-40 °F to 158 °F). Humidity 95% or less (non-condensing),For speaker: -30 °C to 55°C (-22°F to 122°F)
General Function
mirror,password protection
Wiper
No
Demist
Yes
Language
33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
Approval
EMC
CE-EMC (EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3: 2013 + A1: 2019, EN 50130-4: 2011 + A1: 2014)
Safety
CE-LVD (EN 62368-1: 2014/A11: 2017)
Environment
CE-RoHS (2011/65/EU),WEEE (2012/19/EU),Reach (Regulation (EC) No 1907/2006)
Protection
IP67 (IEC 60529-2013),TVS 6000 V lightning protection, surge protection and voltage transient protection
Anti-Corrosion Protection
NO
