3-inch 4 MP 4x Zoom Mini PT Dome Network Camera

Available models:

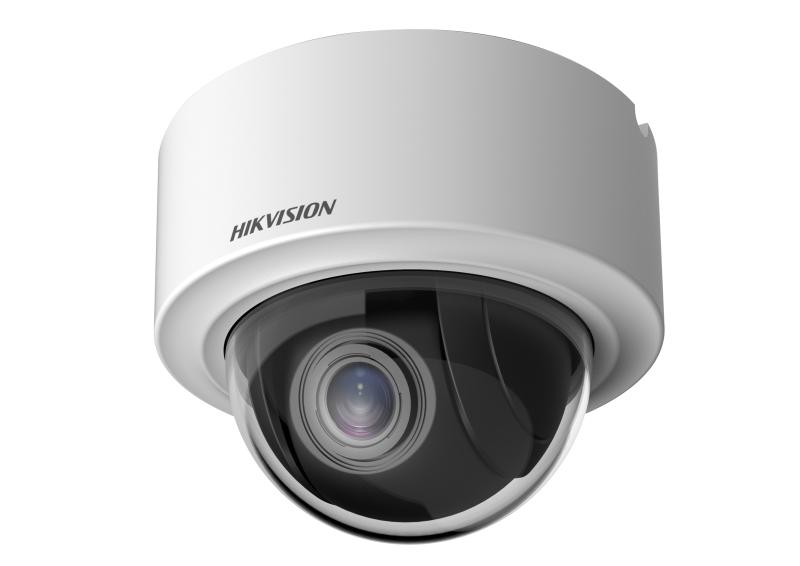

DS-2DE3404W-DE(T5)

Camera
Image Sensor1/2.8″ progressive scan CMOS
Max. Resolution2560 × 1440
Min. IlluminationColor: 0.005 Lux @ (F1.5, AGC ON), B/W: 0.001 Lux @ (F1.5, AGC ON)
Shutter Speed1/1 to 1/30,000 s
Day & NightIR cut filter
Zoom4 × optical, 16 × digital
Slow ShutterYes

Lens
Focal Length2.8 to 12 mm
FOV
Horizontal field of view: 93.8° to 31.7° (wide-tele)
Vertical field of view: 50.9° to 17.9° (wide-tele)
Diagonal field of view: 110.3° to 36.1° (wide-tele)
FocusAuto, semi-auto, manual
ApertureMax. F1.5
Zoom SpeedApprox. 2.0 s

Video
Main Stream
50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720);
60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720)
Sub-Stream
50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288)
60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240)
Third Stream
50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288)
60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)
Video Compression
Main stream: H.265+/H.265/H.264+/H.264
Sub-stream: H.265/H.264/MJPEG
Third stream: H.265/H.264
Video Bit Rate32 Kbps to 16 Mbps
H.264 TypeBaseline Profile/Main Profile/High Profile
H.265 TypeMain profile
Scalable Video Coding (SVC)H.264 and H.265 encoding
Region of Interest (ROI)8 fixed regions for each stream

Audio
Audio CompressionG.711alaw, G.711ulaw, G.722.1, G.726, MP2L2, PCM
Audio Bit RateMP2L2: 32 kbps, 40 kbps, 48 kbps, 56 kbps, 64 kbps, 80 kbps, 96 kbps, 112 kbps, 128 kbps, 144 kbps, 160 kbps, 192 kbps
Audio Sampling RateMP2L2: 16kHz, 32kHz, 48kHz; PCM: 8kHz, 16kHz, 32kHz, 48kHz
Environment Noise FilteringYes

Network
ProtocolsIPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour
Simultaneous Live ViewUp to 20 channels
APIISUP, ISAPI, Hikvision SDK, Hik-Connect, Open Network Video Interface
User/HostUp to 32 users; 3 user levels: administrator, operator, and user
SecurityPassword protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter
Network StorageNAS (NFS, SMB/CIFS)
ClientiVMS-4200, Hik-Connect, HikCentral
Web BrowserFirefox 52+, Safari 11+, Chrome 57+, IE11

Image Parameters SwitchYes
Image SettingsSaturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browser
Day/Night SwitchDay, night, auto, scheduled-switch
Wide Dynamic Range (WDR)120 dB WDR
SNR≥ 52 dB
DefogDigital defog
Image EnhancementBLC, HLC, 3D DNR
Privacy Mask24 programmable polygon privacy masks, mask color or mosaic configurable
Regional FocusYes
Regional ExposureYes

Interface
Ethernet InterfaceRJ45, self-adaptive 10M/100M Ethernet port
On-board StorageBuilt-in memory card slot, support microSD/microSDHC/microSDXC card, up to 256 GB
Audio
1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 KΩ ± 10%;
1 output (line out), line level, output impedance: 600 Ω
Alarm1 input, 1 output
RS-4851 RS-485 (Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)
ResetYes

Event
Basic EventMotion detection, video tampering alarm, alarm input and output, exception
Smart EventLine crossing detection, intrusion detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection
LinkageUpload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, and PTZ actions (such as preset, patrol scan)

General
Power
12 VDC, PoE (802.3af)
Max. 10 W
DimensionØ140.7 mm × 107.2 mm (Ø5.54″ × 4.22″)
WeightApprox. 950 g (2.09 lb.)
MaterialADC12, PC
Operating Condition-30 °C to 65 °C (-22 °F to 149 °F). Humidity 90% or less (non-condensing)
General FunctionPrivacy mask, mirror, password protection, watermark, IP address filter
Language33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian

Approval
EMC
FCC (47 CFR Part 15, Subpart B);
CE-EMC (EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3:2013+A1:2019, EN 50130-4: 2011 +A1: 2014);
RCM (AS/NZS CISPR 32: 2015);
IC (ICES-003: Issue 7);
KC (KN 32: 2015, KN 35: 2015)
Safety
UL (UL 62368-1)
CB (IEC 62368-1:2014+A11);
CE-LVD (EN 62368-1:2014+A11:2017),
BIS (IS 13252(Part 1):2010/ IEC 60950-1: 2005);
LOA (IEC/EN 60950-1)
Environment
CE-RoHS (2011/65/EU);
WEEE (2012/19/EU);
Reach (Regulation (EC) No 1907/2006)
ProtectionIP66 (IEC 60529-2013), TVS 4000V lightning protection, surge protection and voltage transient protection
