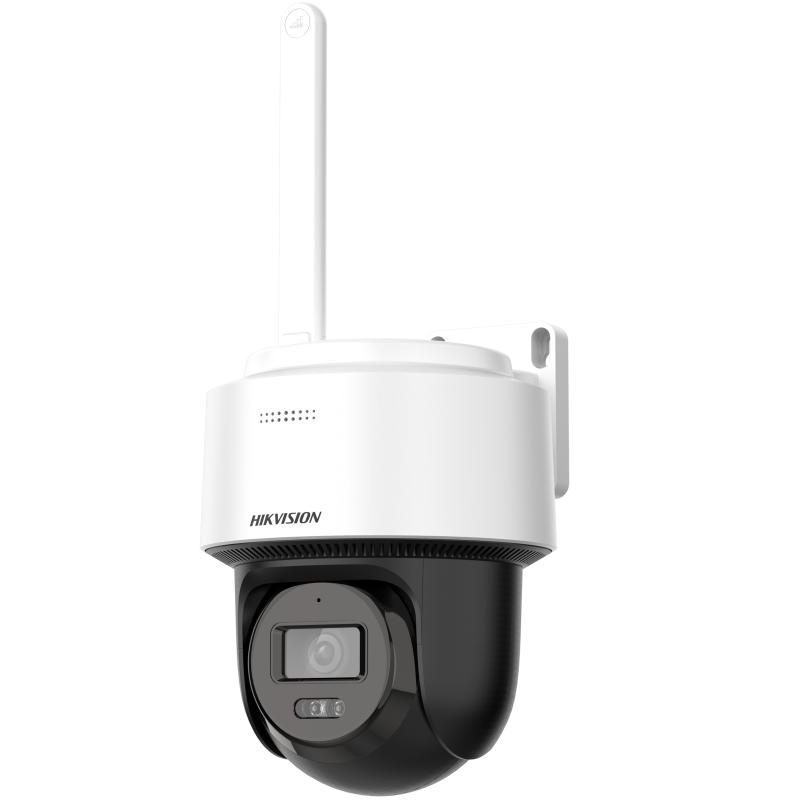

2 MP Fixed Outdoor Smart Hybrid-light 4G PT Network Camera

Available models:

DS-2DE2C200MWG-4G(2.8mm)

DS-2DE2C200MWG-4G(4mm)

DS-2DE2C200MWG-4G(2.8mm)

DS-2DE2C200MWG-4G(4mm)

Lens
Lens TypeFixed focal lens, 2.8 and 4 mm optional
Focal Length & FOV2.8 mm, horizontal FOV 101°, vertical FOV 56°, diagonal FOV 118°
4 mm, horizontal FOV 78°, vertical FOV 42°, diagonal FOV 92°
Lens MountM12
Iris TypeFixed
ApertureF2.0

DORI
DORI2.8 mm, D: 45 m, O: 18 m, R: 9 m, I: 4 m
4 mm, D: 56 m, O: 22 m, R: 11 m, I: 5 m

Video
Main Stream50 Hz: 25 fps (1920 × 1080, 1280 × 720)
60 Hz: 30 fps (1920 × 1080, 1280 × 720)
Sub-Stream50 Hz: 25 fps (768 x 432)
60 Hz: 30 fps (768 x 432)
Video CompressionMain stream: H.265/H.264,
Sub-stream: H.265/H.264/MJPEG
Video Bit Rate32 Kbps to 8 Mbps
H.264 TypeBaseline Profile,Main Profile,High Profile
H.265 TypeMain Profile
Bit Rate ControlCBR,VBR
Region of Interest (ROI)1 fixed region for main stream

Network
APIONVIF (Profile S, Profile G, Profile T),ISAPI,SDK
SecurityPassword protection, complicated password, HTTPS encryption, watermark, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, security audit log, TLS 1.2, TLS 1.3, host authentication (MAC address)
Simultaneous Live ViewUp to 6 channels
ProtocolsTCP/IP, ICMP, DHCP, DNS, DDNS, HTTP, RTP, RTCP, RTSP, NTP, IGMP, IPv4, IPv6, UDP, QoS, SMTP, SNMP
User/HostUp to 32 users
3 user levels: administrator, operator, and user
ClientiVMS-4200,Hik-Connect
Web BrowserLocal service: IE11, Chrome 57.0+, Firefox 52.0+, Edge 89+

Mobile Communication
StandardLTE-TDD,LTE-FDD
FrequencyEU:
LTE-FDD: B1/3/5/7/8/20/28
IN:
LTE-FDD: B1/3/5/8
LTE-TDD: B34/38/39/40/41
LA:
LTE-FDD: B2/3/4/5/7/8/28/66
NA:
LTE-FDD: B2/4/5/12/13/17/66/71
Uplink and Downlink Data RateEU: uplink: 5.1 Mbps, downlink: 10.3 Mbps
IN: uplink: 5.1 Mbps, downlink: 10.3 Mbps
LA: uplink: 5.1 Mbps, downlink: 10.3 Mbps
NA: uplink: 50 Mbps, downlink: 150 Mbps
SIM Card TypeNano SIM

Wide Dynamic Range (WDR)Digital WDR
SNR≥ 52 dB
Privacy Mask4 programmable polygon privacy masks
Day/Night SwitchDay,Night,Auto,Schedule
Image EnhancementBLC,HLC,3D DNR
Image SettingsSaturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser

Interface
Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
On-Board StorageBuilt-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
Built-in Microphone1 built-in microphone
Built-in SpeakerMax. power consumption: 1.5 W, max. sound pressure level: 10 cm: 95 dB.
Reset KeyYes

Event
Basic EventMotion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception
LinkageUpload to FTP/memory card, notify surveillance center, send email, trigger recording, trigger capture, audible warning, auto-tracking lite

General
Power12 VDC ± 25%, 0.75 A, max. 9 W,Ø5.5 mm coaxial power plug,reverse polarity protection,
*A switching adapter is included in the package.
Dimension131.9 mm × 164 mm × 312.6 mm (5.19″ × 6.46\” × 12.31\”)
131.9 mm × 164 mm × 332.6 mm (5.19 × 6.46\” × 13.10\”)”
MaterialPlastic
Package Dimension224 mm × 178 mm × 230 mm (8.82″ × 7.01″ × 9.06″)
WeightApprox. 600 g (1.32 lb.)
With Package WeightApprox. 900 g (1.98 lb.)
Storage Conditions-30 °C to 40 °C (-22 °F to 104 °F). Humidity 95% or less (non-condensing)
Startup and Operating Conditions-30 °C to 40 °C (-22 °F to 104 °F). Humidity 95% or less (non-condensing)
LanguageEnglish, Ukrainian
General FunctionHeartbeat,anti-banding,mirror,password protection,password reset via email

Approval
EMCCE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021,
IC: ICES-003: Issue 7,
KC: KN32: 2015, KN35: 2015
SafetyCB: IEC 62368-1: 2014+A11,
CE-LVD: EN 62368-1: 2014/A11: 2017,
BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005
EnvironmentCE-RoHS: 2011/65/EU,
WEEE: 2012/19/EU,
Reach: Regulation (EC) No 1907/2006
ProtectionIP66: IEC 60529-2013
