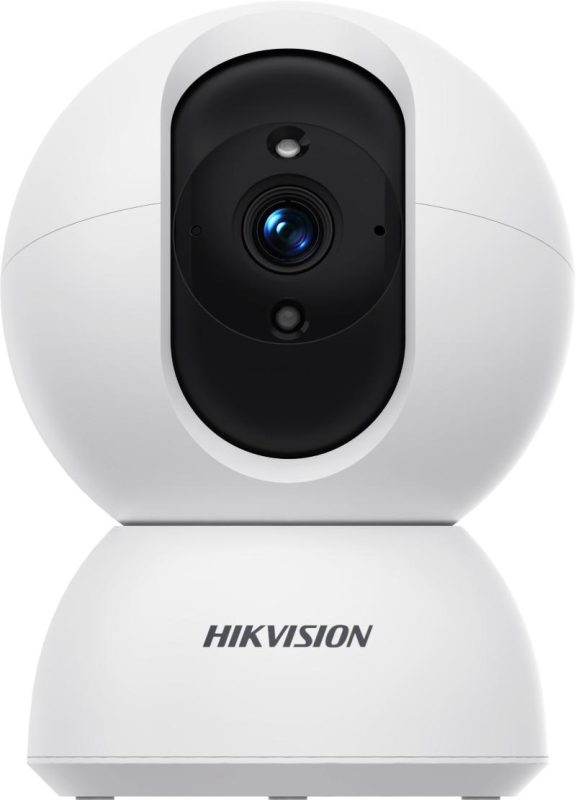

CAMERA HIKVISION DS-2CV2Q21G1-IDW (W)

2 MP Indoor Fixed PT Network Camera

• Support Wi-Fi connection
• Support Motion 2.0, human detection
• Built-in microphone and speaker, support two-way audio
• Mobile monitoring via mobile application
• Support on-board storage, up to 512 GB
• Clear imaging against strong back light due to DWDR technology
• 3D DNR technology delivers clean and sharp images

• Camera
• Image Sensor1/3″ Progressive Scan CMOS
• Max. Resolution1920 × 1080
• Min. IlluminationColor: 0.05 Lux @ (F2.0, AGC ON),B/W: 0 Lux with IR
• Shutter Time1/3 s to 1/100,000 s
• Day & NightIR cut filter
• Angle AdjustmentPan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°

• Lens
• Focal Length & FOV4 mm, horizontal FOV 75°, vertical FOV 45°, diagonal FOV 85°
• Lens MountM12
• ApertureF2.0

• Illuminator
• Supplement Light TypeIR
• Supplement Light RangeUp to 10 m

• Video
• Main Stream50 Hz: 25 fps (1920 × 1080, 1280 × 720, 768 × 432)

  60 Hz: 30 fps (1920 × 1080, 1280 × 720, 768 × 432)

• Sub-Stream50 Hz: 25 fps (768 × 432, 512 × 288)

  60 Hz: 30 fps (768 × 432, 512 × 288)

• Video CompressionMain stream: H.265/H.264

  Sub-stream: H.265/H.264

• Video Bit RateUp to 1 M bps
• Frame RateMax.15 fps

  Self-Adaptive during network transmission

• Audio
• Audio CompressionG.711/AAC-LC
• Audio Bit Rate64 Kbps (G.711ulaw/G.711alaw)/16 to 64 Kbps (AAC-LC)
• Audio Sampling Rate8 kHz/16 kHz
• Environment Noise FilteringYes

• Network
• ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, RTP, RTSP, RTCP, NTP, UPnP, IGMP, QoS, IPv4, UDP, Bonjour, SSL/TLS
• Simultaneous Live ViewUp to 4 channels
• APIONVIF (Profile S, Profile T, Profile G), SDK
• User/HostAdministrator
• SecurityPassword protection, HTTPS encryption, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE for Open Network Video Interface
• ClientiVMS-4200, Hik-Connect, Hik-Partner-Pro

• Wi-Fi
• Encryption ModeWPA-PSK/WPA2-PSK
• Frequency Range2.412 GHz to 2.472 GHz
• Channel Bandwidth20 MHz
• Transfer Rate11b: up to 54 Mbps,

  11g: up to 54 Mbps,

  11n: up to 150 Mbps

• Wireless RangeUp to 50 m (The performance varies based on actual environment)

• Image
• Image SettingsRotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software
• Day/Night SwitchAuto
• Wide Dynamic Range (WDR)Digital WDR
• Privacy Mask4 programmable polygon privacy masks

• Interface
• Ethernet Interface1 RJ45 10M/100M self-adaptive Ethernet port
• On-Board StorageBuilt-in memory card slot, support microSD card, up to 512 GB
• Built-in MicrophoneYes,1 built-in microphone
• Built-in SpeakerYes, 1 built-in speaker
• Reset KeyYes

• Event
• Basic EventMotion detection (support alarm triggering by specified target type (human)), exception

• General
• MaterialPlastic
• DimensionØ80 mm × 122 mm (Ø3.14″ × 4.8″)
• Package Dimension105 mm × 105 mm × 190 mm (4.1″ × 4.1″ × 7.5″)
• WeightApprox. 216 g (0.48 lb.)
• With Package WeightApprox. 554 g (1.22 lb.)
• Storage Conditions-10 °C to 45 °C (14 °F to 113 °F). Humidity 95% or less (non-condensing)
• Startup and Operating Conditions-10 °C to 45°C (14 °F to 113 °F). Humidity 95% or less (non-condensing)
• General FunctionHeartbeat,mirror
• Power5 VDC ± 10%, 1 A, max. 5 W
• Flashing LightRed and Blue Light

• Approval
• RFCE-RED (EN 301489-1 V2.1.1(BT or 2.4G); EN 301489-17 V3.1.1(BT or 2.4G); EN 300328 V2.1.1(BT or 2.4G); EN 62311:2008(BT or 2.4G))
• EMC

  CE-EMC (EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3:2013+A1:2019, EN 50130-4: 2011 +A1: 2014)

• Safety

  CE-LVD: EN 62368-1: 2014/A11: 2017

• EnvironmentCE-RoHS: 2011/65/EU,

  WEEE: 2012/19/EU
