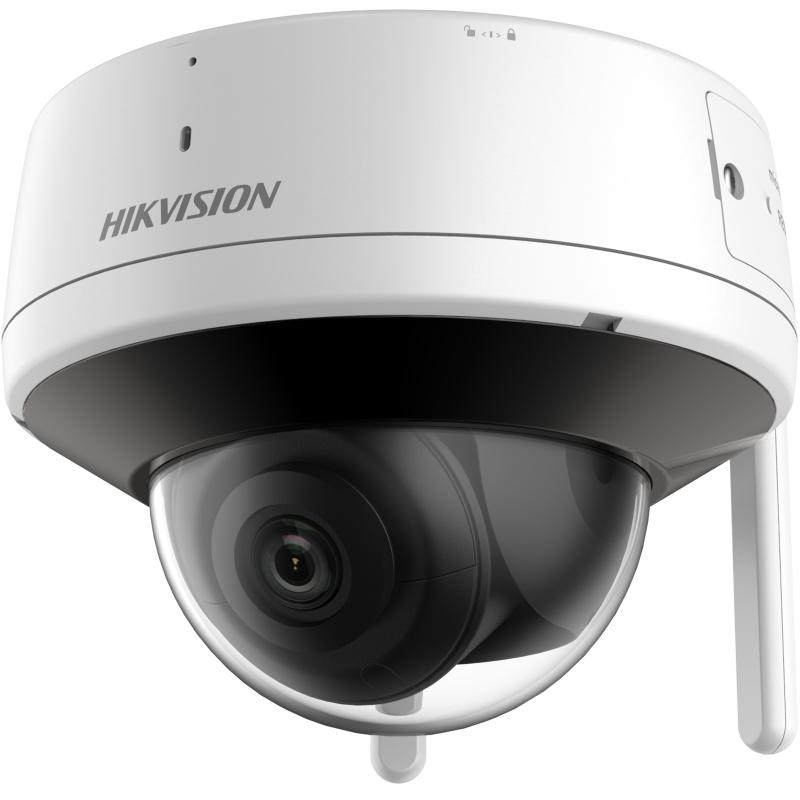

4 MP Outdoor Audio Fixed Dome Network Camera

High quality imaging with 4 MP resolution
Realizing Wi-Fi connection and easy installation
Provides real-time security via built-in two-way audio
Efficient H.265 compression technology
EXIR 2.0, advanced infrared technology with long IR distance
Water and dust resistant (IP66)
Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
(W) version models support mobile monitoring via Hik-Connect

Lens
Lens Type
Fixed focal lens, 2.8 and 4 mm optional
Focal Length & FOV
2.8 mm, horizontal FOV 95°, vertical FOV 53°, diagonal FOV 111°
4 mm, horizontal FOV 79°, vertical FOV 40°, diagonal FOV 94°
Aperture
F1.6
Iris Type
Fixed
Lens Mount
M12
Depth of Field
2.8 mm: 1.4 m to ∞
4 mm: 1.5 m to ∞

DORI
DORI
2.8 mm, D: 63 m, O: 25 m, R: 12 m, I: 6 m
4 mm, D: 78 m, O: 31 m, R: 15 m, I: 7 m

Video
Main Stream
50 Hz: 20 fps (2560 × 1440), 25 fps (1920 × 1080, 1280 × 720)
60 Hz: 20 fps (2560 × 1440), 30 fps (1920 × 1080, 1280 × 720)
Sub-Stream
50 Hz: 25 fps (1280 x 720, 640 × 480, 640 × 360)
60 Hz: 30 fps (1280 x 720, 640 × 480, 640 × 360)
Video Compression
Main stream: H.265+/H.265/H.264+/H.264
Sub-stream: H.265/H.264
Video Bit Rate
32 Kbps to 8 Mbps
H.264 Type
Baseline Profile,Main Profile,High Profile
H.265 Type
Main Profile
Bit Rate Control
CBR,VBR

Audio
Audio Compression
G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC-LC
Audio Bit Rate
64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC)
Audio Sampling Rate
8 kHz/16 kHz
Environment Noise Filtering
Yes

Network
Protocols
TCP/IP, ICMP, HTTP, HTTPS, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, QoS, IPv6, Bonjour
Simultaneous Live View
Up to 6 channels
API
Open Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK
Security
Password protection,complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS
User/Host
Up to 32 users. 3 levels: administrator, operator and user
Network Storage
NAS (NFS, SMB/CIFS),
Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
Client
Wired network: Hik-Connect, iVMS-4200
Wi-Fi: iVMS-4200
*Wi-Fi connection with Hik-Connect directly is not possible.
Web Browser
Plug-in required live view: IE 10+
Plug-in free live view: Chrome 57.0+, Firefox 52.0+
Local service: Chrome 57.0+, Firefox 52.0+

Image Settings
saturation, brightness, contrast, sharpness, adjustable by client software or web browser
Day/Night Switch
Auto, Schedule, Day, Night
Wide Dynamic Range (WDR)
120 dB
SNR
≥ 52 dB
Image Enhancement
BLC, 3D DNR
Privacy Mask
4 programmable polygon privacy masks

Interface
Built-in Microphone
Yes
Built-in Speaker
Yes
On-Board Storage
Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 256 GB
Reset Key
Yes
Ethernet Interface
1 RJ45 10 M/100 M self-adaptive Ethernet port

Event
Basic Event
Motion detection, exception
Linkage
notify surveillance center,trigger recording,trigger capture,
Upload to NAS/memory card

General
Power
12 VDC ± 25%, 0.5 A, max. 6 W,Ø5.5 mm coaxial power plug,reverse polarity protection,A switching adapter is included in the package.
Language
English, Ukrainian
Storage Conditions
-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
General Function
Anti-banding, heartbeat, mirror, password protection, watermark, IP address filter
Startup and Operating Conditions
-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Material
Polycarbonate cover, polycarbonate body
Dimension

Ø126 mm × 96.1 mm (Ø5″ × 3.8″)
Package Dimension
170 mm × 170 mm × 150 mm (6.7″ × 6.7″ × 5.9″)
Weight
Approx. 590 g (1.3 lb.)
With Package Weight
Approx. 989 g (2.2 lb.)

Approval
EMC

FCC SDoC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); IC VoC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015)
RF
FCC ID (FCC Part 15.247(BT or 2.4G));
IC ID (RSS-247(BT or 2.4G));
CE-RED (EN 301489-1 V2.1.1(BT or 2.4G); EN 301489-17 V3.1.1(BT or 2.4G); EN 300328 V2.1.1(BT or 2.4G); EN 62311:2008(BT or 2.4G));
MIC (JPN)
Safety

UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014);
Environment
CE-RoHS: 2011/65/EU,
WEEE: 2012/19/EU,
Reach: Regulation (EC) No 1907/2006
Protection
IP66: IEC 60529-2013
