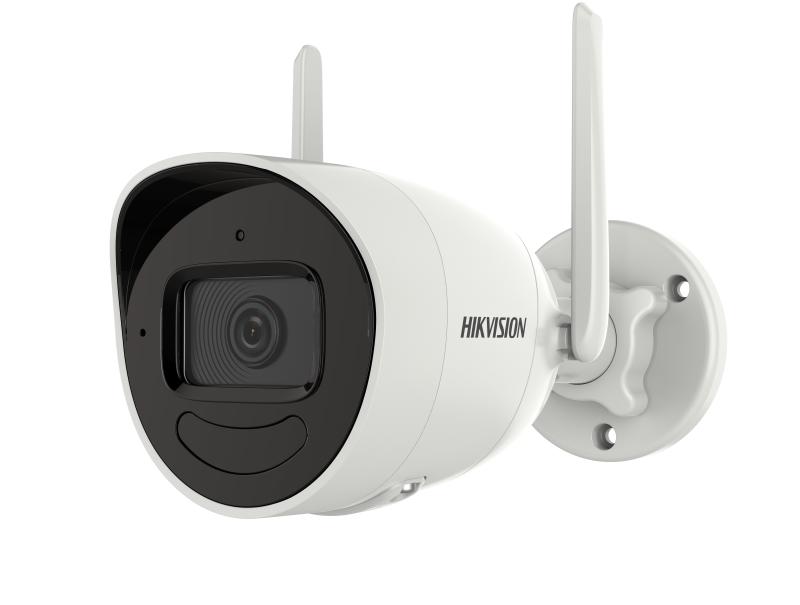

4 MP Outdoor Audio Fixed Bullet Network Camera

Lens
Lens Type
Fixed focal lens, 2.8 and 4 mm optional
Focal Length & FOV
2.8 mm, horizontal FOV 97°, vertical FOV 53°, diagonal FOV 117°
4 mm, horizontal FOV 82°, vertical FOV 44°, diagonal FOV 100°
Aperture
F1.6
Iris Type
Fixed
Lens Mount
M12
Depth of Field
2.8 mm: 1 m to ∞
4 mm: 1.5 m to ∞

DORI
DORI
2.8 mm, D: 63 m, O: 25 m, R: 12 m, I: 6 m
4 mm, D: 78 m, O: 31 m, R: 15 m, I: 7 m

Video
Main Stream
50 Hz:
20 fps (2560 × 1440),
25 fps (1920 × 1080, 1280 × 720)
60 Hz:
20 fps (2560 × 1440),
30 fps (1920 × 1080, 1280 × 720)
Sub-Stream
50 Hz: 25 fps (768 x 432, 512 × 288)
60 Hz: 30 fps (768 x 432, 512 × 288)
Video Compression
Main stream: H.265+/H.265/H.264+/H.264
Sub-stream: H.265/H.264/MJPEG
Video Bit Rate
256 Kbps to 4 Mbps
H.264 Type
Baseline Profile,Main Profile,High Profile
H.265 Type
Main Profile
Bit Rate Control
CBR,VBR

Audio
Audio Compression
G.711/G.722.1/G.726/PCM/AAC-LC
Audio Bit Rate
64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/16 to 64 Kbps (AAC-LC)
Audio Sampling Rate
8 kHz/16 kHz
Environment Noise Filtering
Yes

Network
Protocols
TCP/IP, ICMP, HTTP, HTTPS, DHCP, DNS, RTP, RTSP, RTCP, NTP, IGMP, QoS, Bonjour
Simultaneous Live View
Up to 4 channels
API
NA
Security
Password protection, HTTPS encryption, Security Audit Log, basic and digest authentication for HTTP/HTTPS
User/Host
Only one user: administrator
Network Storage
NAS (NFS, SMB/CIFS),
Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
Client
Hik-Connect, iVMS-4200
Web Browser
NA

Wi-Fi
Transfer Rate
11n: up to 300 Mbps
Wi-Fi Protocol
802.11n: OFDM,802.11b: DSSS,802.11g: OFDM
Frequency Range
2.412 GHz to 2.472 GHz
Channel Bandwidth
20 MHz
Modulation
802.11n: BPSK, QPSK, 16QAM, and 64QAM,802.11b: DBPSK and DQPSK, CCK,802.11g: BPSK, QPSK, 16QAM, and 64QAM
Wireless Range
Up to 120 m
(The performance varies based on actual environment)
Antenna
2 Antennas

Interface
Built-in Microphone
Yes
Built-in Speaker
Yes
On-Board Storage

Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
Reset Key
Yes
Ethernet Interface
1 RJ45 10 M/100 M self-adaptive Ethernet port

Event
Basic Event
Motion detection (support alarm triggering by specified target types (human and vehicle)), exception
Linkage

Upload to NAS/memory card,notify surveillance center,trigger recording,trigger capture

General
Power
12 VDC ± 25%, 0.5 A, max. 6 W,Ø5.5 mm coaxial power plug,reverse polarity protection,A switching adapter is included in the package.
Language
English
Storage Conditions
-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
General Function
Heartbeat, mirror, password protection
Startup and Operating Conditions
-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Material
Front cover: metal, back cover: plastic
Dimension
175.6 mm × 73 mm × 89.1 mm (6.9″ × 2.9″ × 3.5″)
Package Dimension
260 mm × 125 mm × 125 mm (10.2″ × 4.9″ × 4.9″)
Weight
Approx. 345 g (0.8 lb.)
With Package Weight
Approx. 635 g (1.4 lb.)

Approval
EMC

CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014
RF
CE-RED (EN 301489-1 V2.1.1(BT or 2.4G)
Safety

CE-LVD: EN 62368-1: 2014/A11: 2017
Environment
CE-RoHS: 2011/65/EU,
WEEE: 2012/19/EU,
Reach: Regulation (EC) No 1907/2006
Protection
IP66: IEC 60529-2013
