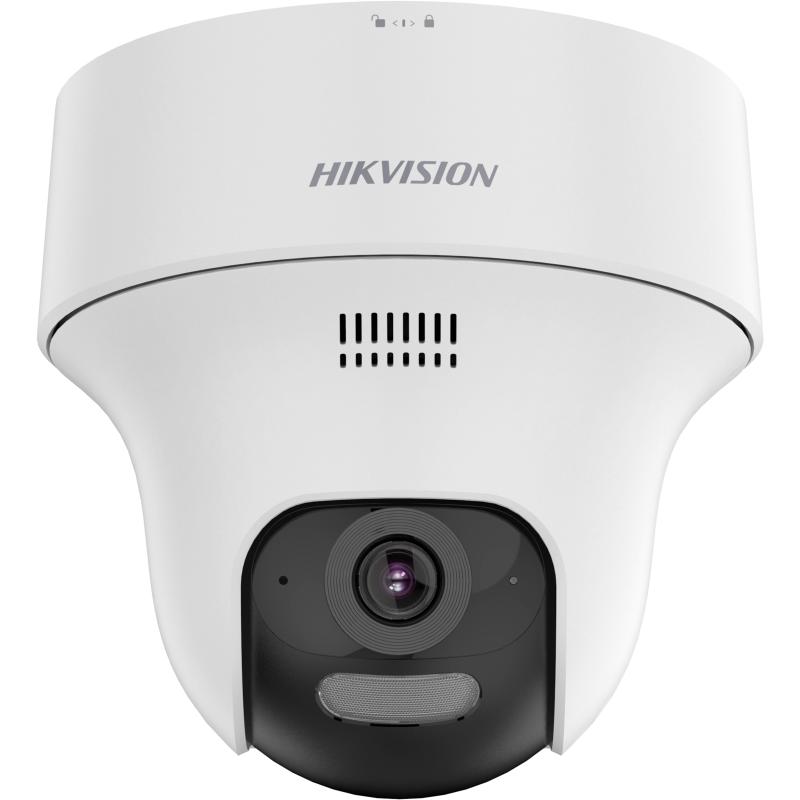

4 MP Indoor Wi-Fi Fixed PT Turret Network Camera

Available models:

DS-2CV1F43G2-LIDWF(2.8mm)(B)

DS-2CV1F43G2-LIDWF(4mm)(B)

Camera
Image Sensor
1/2.7″ Progressive Scan CMOS
Max. Resolution
2560 × 1440
Min. Illumination
Color: 0.01 Lux @ (F2.0, AGC ON), B/W: 0.005Lux @(F2.0, AGC ON), 0 Lux with IR

Lens
Focal Length
2.8 mm;4 mm
FOV
Horizontal field of view: 91.1°, vertical field of view: 47.9°, diagonal field of view: 110.8°;Horizontal field of view: 69.9°, vertical field of view: 34.9°, diagonal field of view: 84.9°
Aperture
F2.0;F1.6

Video
Main Stream
50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 720)
60 Hz: 20 fps (2560 × 1440), 24 fps (1920 × 1080, 1280 × 720)
Sub-Stream
50 Hz: 25 fps (768 x 432)
60 Hz: 30 fps (768 x 432)
Video Compression
H.265, H.264, MJPEG
Video Bit Rate
32 Kbps to 8 Mbps
H.264 Type
Baseline Profile/Main Profile/High Profile
H.265 Type
Main Profile

Network
Protocols
IPv4,IPv6,HTTP,QoS,SMTP,NTP,RTSP,RTP,RTCP,TCP/IP,UDP,DHCP,Bonjour
API
ONVIF (Profile S, Profile G, Profile T),ISAPI,SDK,Hik-Connect
User/Host
Up to 32 users. 3 user levels: administrator, operator, and user
Security
Password protection,complicated password,watermark,WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS,security audit log,host authentication (MAC address),basic and digest authentication for HTTP/HTTPS
Client
Wired network: Hik-Connect, iVMS-4200 Wi-Fi: iVMS-4200 *Wi-Fi connection with Hik-Connect directly is not possible

Wireless (Wi-Fi)
Wi-Fi Protocols
IEEE802.11b,IEEE802.11g,IEEE802.11n,IEEE802.11ax
Frequency Range
2.4 GHz to 2.4835 GHz
Channel Bandwidth
20/40 MHz
Modulation
802.11b: DBPSK, DQPSK, CCK,
802.11g: BPSK, QPSK, 16QAM, 64QAM,
802.11n: BPSK, QPSK, 16QAM, 64QAM,
802.11ax: BPSK, QPSK, 16QAM, 64QAM, 256QAM
Transfer Rate
11b: up to 11 Mbps,11n: up to 150 Mbps,11g: up to 54 Mbps,11ax: up to 114 Mbps

Image Settings
Saturation, brightness, contrast, and sharpness adjustable by client software or web browser
Wide Dynamic Range (WDR)
Digital WDR
Image Enhancement
BLC, HLC, 3D DNR
Privacy Mask
4 programmable polygon privacy masks

Interface
Ethernet Interface
1 RJ45 10M/100M self-adaptive Ethernet port
Built-in Microphone
1 built-in microphone
On-board Storage
Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
Built-in Speaker
1 built-in speaker

Event
Basic Event
Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception
Linkage
Notify surveillance center,send email,trigger recording,trigger capture,audible warning

General
Power
12 VDC ± 25%, reverse polarity protection, 0.75 A, max. 9 W, Ø5.5 mm coaxial power plug
Dimension
Ø124 mm × 119 mm (Ø4.89″ × 4.68″)
Weight
Weight:Approx. 290 g (0.6 lb.)
With Package Weight:Approx. 390 g (0.8 lb.)
Material
Plastic
Operating Condition
-10 °C to 40 °C (-14 °F to 104 °F). Humidity 90% or less (non-condensing)
General Function
Heartbeat,anti-banding,mirror,password protection,password reset via email
Language
English, Ukrainian
Approval
Protection
IP54
