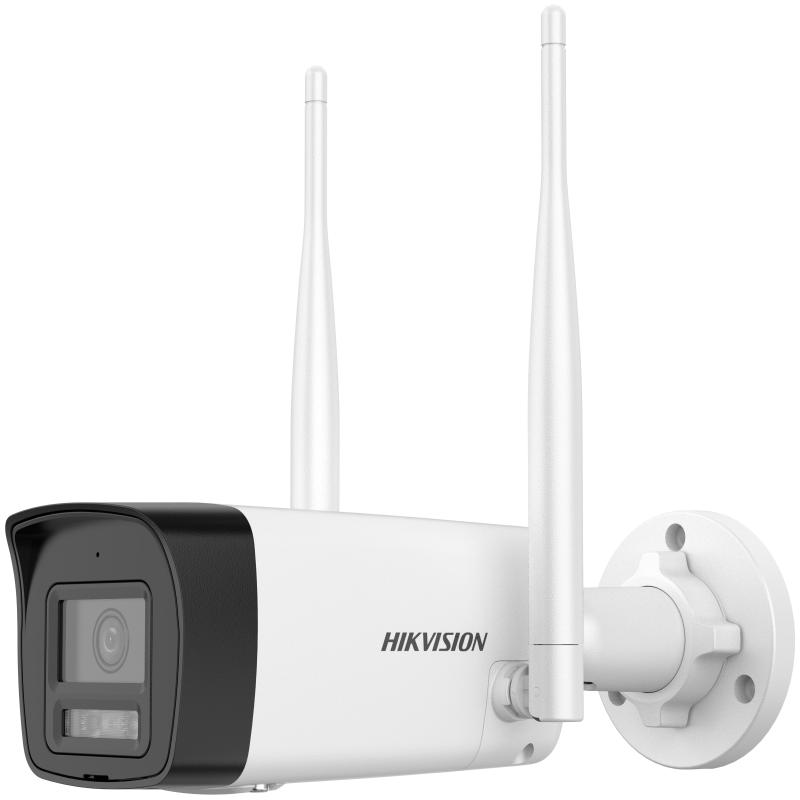

4 MP Outdoor Wi-Fi Fixed Bullet Network Camera

Lens
Lens Type
Fixed focal lens, 2.8, 4, and 6 mm optional
Focal Length & FOV
2.8 mm, horizontal FOV 94°, vertical FOV 49°, diagonal FOV 114°
4 mm, horizontal FOV 70°, vertical FOV 35°, diagonal FOV 85°
6 mm, horizontal FOV 46°, vertical FOV 24°, diagonal FOV 54°
Aperture
F1.6
Iris Type
Fixed
Lens Mount
M12
Depth of Field
2.8 mm: 1.3 m to ∞
4 mm: 2 m to ∞
6 mm: 4.1 m~44 m

DORI
DORI
4 mm, D: 68 m, O: 27 m, R: 13 m
4 mm, D: 100 m, O: 39 m, R: 20 m, I: 10 m
6 mm, D: 142 m, O: 56 m, R: 28 m, I: 14 m

Video
Main Stream
50 Hz: 20 fps (2560 x 1440, 1920 × 1080, 1280 × 720)
60 Hz: 20 fps (2560 x 1440, 1920 × 1080, 1280 × 720)
Sub-Stream
50 Hz: 20 fps (768 × 432)
60 Hz: 20 fps (768 × 432)
Video Compression
Main stream: H.265/H.264,
Sub-stream: H.265/H.264/MJPEG
Video Bit Rate
32 Kbps to 8 Mbps
H.264 Type
Baseline Profile,Main Profile,High Profile
H.265 Type
Main Profile
Bit Rate Control
CBR,VBR
Region of Interest (ROI)
1 fixed region for main stream

Network
Security
Password protection, complicated password, watermark, basic and digest authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address)
Simultaneous Live View
Up to 6 channels
API
ONVIF (Profile S, Profile G, Profile T), ISAPI, SDK
Protocols
TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTCP, RTSP, NTP, IGMP, IPv4, IPv6, UDP, QoS, UPnP
User/Host
Up to 32 users
3 user levels: administrator, operator, and user
Client
Wired network: Hik-Connect, iVMS-4200
Wi-Fi: iVMS-4200
*Wi-Fi connection with Hik-Connect directly is not possible
Web Browser
Local service: IE 11, Chrome 57.0+, Firefox 52.0+, Edge 89+

Wi-Fi
Wi-Fi Protocol
IEEE802.11b,IEEE802.11g,IEEE802.11n,IEEE802.11ax
Frequency Range
2.4 GHz to 2.4835 GHz
Channel Bandwidth
20/40 MHz
Modulation
802.11n: QPSK, BPSK,16QAM, 64QAM,
802.11b: CCK, QPSK, BPSK,
802.11g: QPSK, BPSK,16QAM, 64QAM
Transfer Rate
11n: up to 300 Mbps

Image Parameters Switch
Yes
Wide Dynamic Range (WDR)
Digital WDR
SNR
≥ 52 dB
Day/Night Switch
Day, Night, Auto, Schedule
Image Enhancement
BLC, HLC, 3D DNR
Image Settings
Saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser
Privacy Mask
4 programmable polygon privacy masks

Interface
On-Board Storage
Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
Built-in Microphone
Yes
Built-in Speaker
Yes
Reset Key
Yes
Ethernet Interface
1 RJ45 10 M/100 M self-adaptive Ethernet port

Event
Basic Event
Motion detection (support alarm triggering by specified target types (human and vehicle)),exception
Linkage
Notify surveillance center, send email, trigger recording, trigger capture, audible warning

General
Power
12 VDC ± 25%, 0.55 A, max. 6.5 W,Ø5.5 mm coaxial power plug,reverse polarity protection,A switching adapter is included in the package.
Material
Base: plastic, front cover: metal, back cover: plastic
Dimension
260.9 mm × 113.9 mm × 67.4 mm (10.3″ × 4.5″ × 2.7″)
Package Dimension
300 mm × 130 mm × 100 mm (10.2″ × 5.1″ × 4.9″)
Weight
Approx. 310 g (0.68 lb.)
With Package Weight
Approx. 550 g (1.21 lb.)
Storage Conditions
-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Startup and Operating Conditions
-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Language
English, Ukrainian
General Function
Heartbeat, anti-banding, mirror, password protection

Approval
EMC
CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014
RF
CE-RED: EN 301489-1 V2.1.1(BT or 2.4G); EN 301489-17 V3.1.1 (BT or 2.4G); EN 300328 V2.1.1 (BT or 2.4G); EN 62311:2008 (BT or 2.4G)
Safety
CB: IEC 62368-1: 2014+A11,
CE-LVD: EN 62368-1: 2014/A11: 2017
Environment
CE-RoHS: 2011/65/EU,
WEEE: 2012/19/EU,
Reach: Regulation (EC) No 1907/2006
Protection
IP66: IEC 60529-2013
