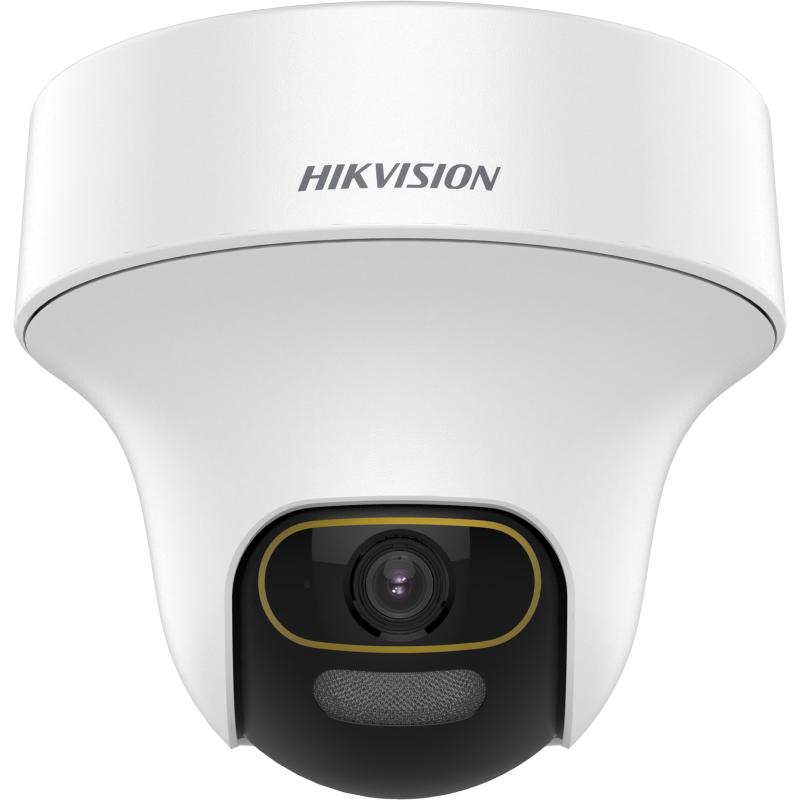

CAMERA HIKVISION DS-2CE70DF3T-PTS

2MP ColorVu Indoor Audio Fixed PT Camera

• High quality imaging with 2 MP, 1920 × 1080 resolution
• 24/7 color imaging with F1.0 aperture
• Clear imaging against strong back light due to 130 dB true WDR technology
• 3D DNR technology delivers clean and sharp images
• Fixed focal lens, 2.8, and 3.6 mm optional
• Up to 20 m white light distance for bright night images
• High quality audio with audio over coaxial cable, built-in microphone

• Camera
• Image Sensor2 MP CMOS
• Max. Resolution1920 (H) × 1080 (V)
• Min. Illumination0.0005 Lux @ (F1.0, AGC ON), 0 Lux with white light
• Shutter TimePAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s
• Day & Night24/7 Color Imaging
• Angle AdjustmentPan: 0 to 350°, tilt: 0 to 75°

  *DO NOT adjust the angle of the main body or enclosure manually.

• Signal SystemPAL/NTSC
• Slow ShutterMax. 16 times

• Lens
• Lens TypeFixed focal lens, 2.8 and 3.6 mm optional
• Focal Length & FOV2.8 mm, horizontal FOV: 106°, vertical FOV: 57°, diagonal FOV: 126°

  3.6 mm, horizontal FOV: 83°, vertical FOV: 44°, diagonal FOV: 99°

• Lens MountM12

• Illuminator
• Supplement Light TypeWhite Light
• Supplement Light RangeUp to 20 m
• Smart Supplement LightYes

• Image
• Image Parameters SwitchSTD/HIGH-SAT/HIGHLIGHT
• Image SettingsBrightness;Contrast;Mirror;Sharpness;Anti-Banding;Saturation;AGC
• Frame RateTVI: 1080P@25 fps/30 fps
• Day/Night ModeColor
• Wide Dynamic Range (WDR)≥130 dB
• Image EnhancementBLC;HLC;Global;HLS
• Privacy Mask4 programmable privacy masks
• Noise Reduction3D DNR/2D DNR
• White BalanceAuto/Manual
• White LightAuto/Off

• Interface
• Video Output1 HD analog output
• AlarmSolid Light Alarm (White Light)
• Built-in MicrophoneYes

• Event
• Motion Detection4 programmable motion areas

• General
• Power12 VDC ± 25%, max. 7.4 W

  *You are recommended to use one power adapter to supply the power for one camera.

• MaterialPlastic
• DimensionØ123.7 × 110.8 (4.9″ × 4.4″)
• WeightApprox. 290 g (0.6 lb.)
• Operating Condition-10 °C to 40 °C (14 °F to 104 °F). Humidity 90% or less (non-condensing)
• CommunicationHIKVISION-C
• LanguageEnglish
