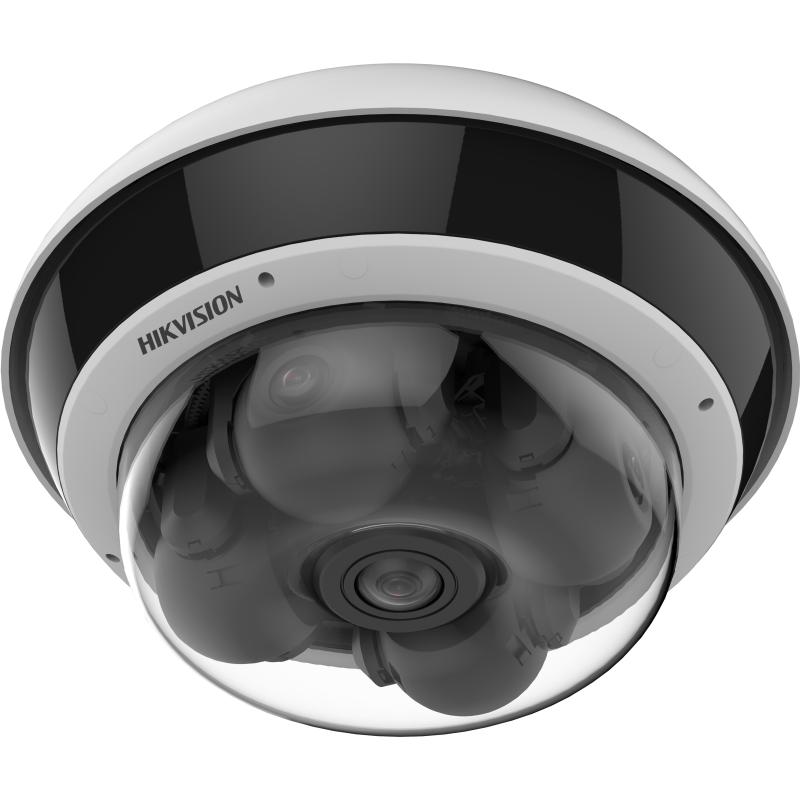

5-Directional Multisensor Network Camera

4 adjustable lenses in one camera cover up to 360° field of view, ensuring no blind area monitoring and the monitoring tilt angle can be adjusted
Each lens up to 5 MP, capturing clear images, and more details can be displayed on video wall
Clear imaging against strong back light due to 120 dB true WDR technology
Water and dust resistant (IP67) and vandal proof (IK10)
Human and vehicle target classification based on deep learning for up to 4 channels
Unique PTRZ capability for efficient installation
Audio and alarm interface available
One more fixed lens to cover the area beneath the camera

Available models:

DS-2CD6D55G2-IZHS(2.8-8mm/2mm)

Camera
Image Sensor
Varifocal: 1/2.4″ Progressive Scan CMOS; Fixed: 1/2.5″ Progressive Scan CMOS
Max. Resolution
2560 × 1920
Min. Illumination
Color: 0.005 Lux @ (F1.2, AGC ON),B/W: 0.002 Lux @ (F1.2, AGC ON),B/W: 0 Lux with IR
Shutter Time
1 s to 1/100,000 s
Day & Night
IR cut filter
Angle Adjustment
Pan: 0° to 350°,tilt: 0° to 90°,rotate: -90° to 90°

Lens
Lens Type
Varifocal lens, motorized lens, 2.8 to 8 mm,Fixed focal lens, 2 mm
Focal Length & FOV
Varifocal :2.8 to 8 mm, horizontal FOV 96.5° to 48.9°, vertical FOV 69.9° to 36.5°, diagonal FOV 129° to 61.3°
Fixed:2mm, horizontal FOV 71.68°, vertical FOV 71.68°, diagonal FOV 99.16°
Lens Mount
Ø14
Focus
Varifocal: Semi-auto,Manual
Aperture
Varifocal: F1.9; Fixed: F2.25

Video
Main Stream
Channel 1,2,3,4:
50 Hz: 25 fps (2560× 1920, 2048× 1536, 1920 × 1080, 1280 × 720)
60 Hz: 30 fps (2560× 1920, 2048× 1536, 1920 × 1080, 1280 × 720)
Channel 5:
50 Hz: 25 fps (1440× 1440)
60 Hz: 30 fps (1440× 1440)
Sub-Stream
Channel 1,2,3,4:
50 Hz: 25 fps (704 × 576, 640 × 480)
60 Hz: 30 fps (704 × 480, 640 × 480)
Channel 5:
50 Hz: 25 fps (576× 576, 480× 480)
60 Hz: 30 fps (576× 576, 480× 480)
Third Stream
Channel 1,2,3,4:
50 Hz: 25 fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480)
60 Hz: 30 fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480)
Video Compression
Main stream: H.265+/H.265/H.264+/H.264,
Sub-stream: H.265/H.264/MJPEG,
Third stream: H.265/H.264
Video Bit Rate
32 Kbps to 8 Mbps
H.264 Type
Baseline Profile,Main Profile,High Profile
H.265 Type
Main Profile
Scalable Video Coding (SVC)
H.264 and H.265 encoding
Region of Interest (ROI)
4 fixed regions for each stream
Target Cropping
Yes

Audio
Audio Compression
G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
Audio Bit Rate
64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
Audio Sampling Rate
8 kHz/16 kHz/32 kHz/48 kHz
Environment Noise Filtering
Yes

Network
Protocols
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, WebSocket, WebSockets, SSL/TLS
Simultaneous Live View
Up to 20 channels
API
Open Network Video Interface (Profile S, Profile G, Profile T),ISAPI,SDK,ISUP
User/Host
Up to 32 users
3 user levels: administrator, operator, and user
Security
Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface
Network Storage
NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR),
Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
Client
iVMS-4200,Hik-Connect
Web Browser
Plug-in required live view: IE 10, IE 11,
Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+, Safari 11+,
Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+

Image Settings
Rotate mode,saturation,brightness,contrast,sharpness,AGC,white balance,adjustable by client software or web browser
Day/Night Switch
Day,Night,Auto,Schedule,Alarm Trigger
Wide Dynamic Range (WDR)
120 dB
SNR
≥ 52 dB
Image Stabilization
EIS
Image Enhancement
BLC,HLC,3D DNR,Defog
Privacy Mask
8 programmable polygon privacy masks
Picture Overlay
LOGO picture can be overlaid on video with 128 × 128 24 bit bmp format.

Interface
Ethernet Interface
1 RJ45 10 M/100 M/1000 M self-adaptive Ethernet port
On-Board Storage
Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 1 TB
Audio
1 input (line in), 3.5 mm connector, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium,
1 output (line out), 3.5 mm connector, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
Alarm
2 inputs, 2 outputs (max. 24 VDC, 1 A)
RS-485
1 RS-485 (Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)
Reset Key
Yes

Event
Basic Event
Motion detection,video tampering alarm,network disconnected,IP address conflict,illegal login,HDD full,HDD error
Smart Event
Line crossing detection, intrusion detection, region entrance detection, region exiting detection (support alarm triggered by specified target types (human and vehicle)),scene change detection, unattended baggage detection,object removal detection
Linkage
Upload to FTP/NAS/memory card,notify surveillance center,send email,trigger alarm output,trigger recording,trigger capture

Deep Learning Function
Perimeter Protection
Line crossing, intrusion, region entrance, region exiting
Support alarm triggering by specified target types (human and vehicle)

General
Power
12 VDC ± 20%, 1.8 A, max. 21.6 W,
PoE: IEEE 802.3at, Type 2, Class 4, 42.5 V to 57 V, 0.58 A to 0.43 A, max. 25 W
Dimension
Ø290 mm × 148 mm (Ø11.42″ × 5.8″)
Package Dimension
453 mm × 393 mm × 385 mm (17.8″ × 15.47″ × 15.16″)
Weight
Approx. 4.7 kg (10.36 lb.)
With Package Weight
Approx. 8.0 kg (17.63 lb.)
Storage Conditions
-40 °C to 60 °C (-40 °F to 140 °F). Humidity 95% or less (non-condensing)
Startup and Operating Conditions
-40 °C to 60 °C (-40 °F to 140 °F). Humidity 95% or less (non-condensing)
Language
33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
General Function
Heartbeat,flash log,password reset via email,pixel counter,password protection,one-key reset,anti-banding

Approval
EMC
CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021, EN 50121-4: 2016+A1:2019,
RCM: AS/NZS CISPR 32: 2015,
IC: ICES-003: Issue 7,
KC: KN32: 2015, KN35: 2015
Safety

CB: IEC 62368-1: 2014+A11,
CE-LVD: EN 62368-1: 2014/A11: 2017,
BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005
Environment
CE-RoHS: 2011/65/EU,
WEEE: 2012/19/EU,
Reach: Regulation (EC) No 1907/2006
Protection
IP67: IEC 60529-2013,IK10: IEC 62262:2002
Anti-Corrosion Protection
NEMA 4X (NEMA 250-2018)
