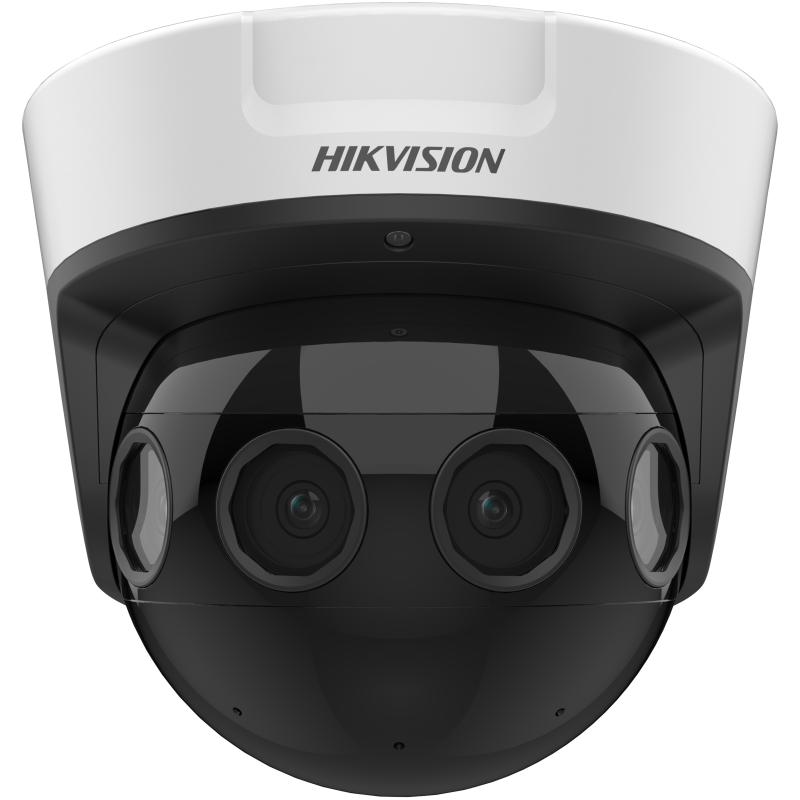

32 MP 180° PanoVu Network Camera

180° splicing image: the image presented includes the full panoramic view covered by the camera
Built-in heater, ultra-low temperature start up to -40 °C (-40 °F)
Water and dust resistant (IP67) and vandal proof (IK10)
High resolution 32 MP: capturing clear images, and allowing for more details to be displayed on a video wall
DarkFighter technology captures high quality color images even in dimly light environments

Available models:

DS-2CD6984G0-IHSAC/NFC(2.8mm)

DS-2CD6984G0-IHS/NFC(2.8mm)

DS-2CD6984G0-IHS(2.8mm)

DS-2CD6984G0-IH(2.8mm)

DS-2CD6984G0-IHSAC(2.8mm)

DS-2CD6984G0-IHS(2.8mm)(D)

DS-2CD6984G0-IHSY(2.8mm)(D)

Camera
Image Sensor1/1.8″ Progressive Scan CMOS
Max. Resolution8160 × 3616
Min. IlluminationColor: 0.009 Lux @ (F1.2, AGC ON), 0.012 Lux @ (F1.4, AGC ON)
B/W: 0.0009 Lux @ (F1.2, AGC ON), 0.0012 Lux @ (F1.4, AGC ON), 0 Lux with IR
Shutter Time1/25 s to 1/100,000 s
Day & NightIR cut filter
Angle AdjustmentPan: 0° to 355°, tilt: 0° to 90°

Lens
Lens TypeFixed focal lens, 2.8 mm, four lenses
Focal Length & FOV2.8 mm,
Single lens image: horizontal FOV 102°, vertical FOV 55°, diagonal FOV 120°,
Panorama Image: horizontal FOV 180°, vertical FOV 95°
Lens MountM12
ApertureF1.4

Audio
Audio Compression-S: G.711/G.722.1/G.726/MP2L2/PCM
Audio Bit Rate-S: 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)
Audio Sampling Rate-S: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
Environment Noise Filtering-S: Yes

Network
ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour
Simultaneous Live ViewUp to 20 channels
APIOpen Network Video Interface (Profile S, Profile G), ISAPI
User/HostUp to 32 users
3 user levels: administrator, operator, and user
Network StorageNAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR)
ClientiVMS-4200
Web BrowserIE8+, Chrome 31.0-44, Firefox 30.0-51, Safari 8.0+

Image SettingsRotate mode (only original mode supports), saturation, brightness, contrast, sharpness, AGC and white balance adjustable by client software or web browser
Day/Night SwitchDay,Night,Auto,Schedule,Alarm Trigger (only -S model supports)
Wide Dynamic Range (WDR)Digital WDR
Image EnhancementBLC, HLC, 3D DNR, Defog, EIS (only original mode supports)

Interface
Ethernet Interface1 RJ45 10 M/100 M/1000 M self-adaptive Ethernet port
On-Board StorageBuilt-in memory card slot, support microSD/microSDHC/microSDXC card, up to 128 GB
Audio-S: 1 input (line in), 3.5 mm 3-section connector, max. input amplitude: 1 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium,
1 output (line out), 3.5 mm 3-section connector, max. output amplitude: 1 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
Alarm-S: 2 Inputs, 2 outputs (max. 12 VDC, 1 A)
RS-485-S: 1 RS-485 (Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)
Reset KeyYes

Event
Basic EventException (network disconnected, IP address conflict, illegal login, HDD full, HDD error)

General
PowerWithout -AC: 12 VDC ± 20%, 1.4 A, max. 17 W, three-core terminal block,
PoE: IEEE 802.3at, Class 4, 42.5 V to 57 V, max. 23 W
-AC: 24 VAC ± 20%, 1.2 A, 50 Hz, three-core terminal block,
PoE: IEEE 802.3at, Class 4, 42.5 V to 57 V, max. 23 W
MaterialAluminum alloy & plastic
Dimension190 mm × 208 mm × 207 mm (7.5″ × 8.2″ × 8.1″)
Package Dimension336 mm × 261 mm × 293 mm (13.2″ × 10.3″ × 11.5″)
WeightApprox. 3.5 kg (7.7 lb.)
Storage Conditions-40 °C to 60 °C (-40 °F to 140 °F). Humidity 95% or less (non-condensing)
Startup and Operating Conditions-40 °C to 60 °C (-40 °F to 140 °F). Humidity 95% or less (non-condensing)
Language33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
General FunctionOne-key reset, anti-flicker, heartbeat, mirror, password protection, watermark, IP address filter (only original mode supports)
HeaterYes

Approval
EMCCE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014,
RCM: AS/NZS CISPR 32: 2015,
IC: ICES-003: Issue 7,
KC: KN32: 2015, KN35: 2015
Safety
CB: IEC 62368-1: 2014+A11,
CE-LVD: EN 62368-1: 2014/A11: 2017,
BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005,
LOA: IEC/EN 60950-1
EnvironmentCE-RoHS: 2011/65/EU,
WEEE: 2012/19/EU,
Reach: Regulation (EC) No 1907/2006
ProtectionIP67: IEC 60529-2013, IK10: IEC 62262:2002
Anti-Corrosion Protection-Y: NEMA 4X (NEMA 250-2018)
