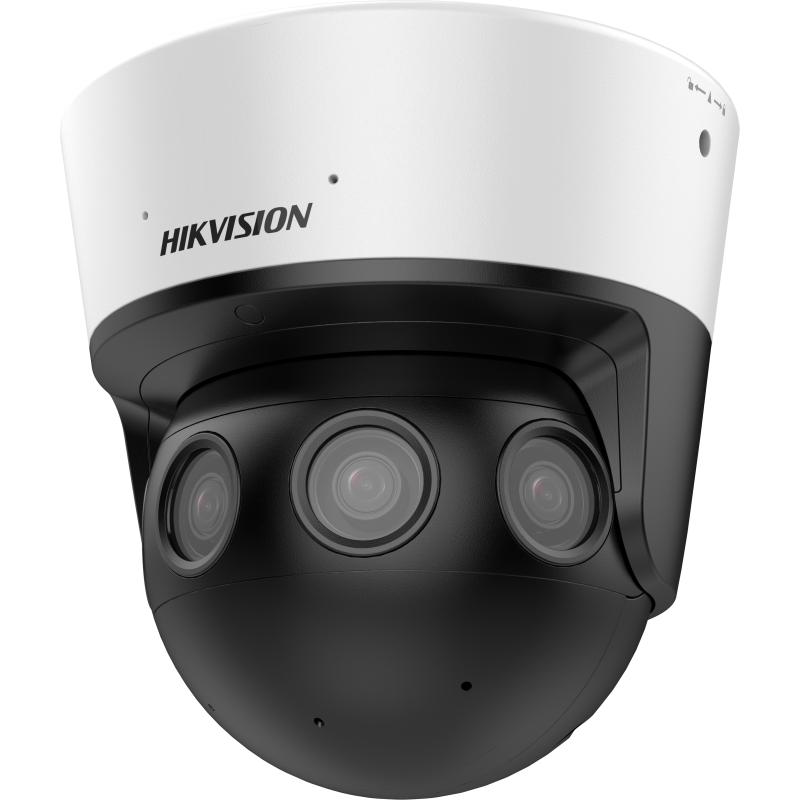

16MP 180° PanoVu Network Camera

180° splicing image: the image presented includes the full panoramic view covered by the camera
High resolution 16 MP: capturing clear images, and allowing for more details to be displayed on a video wall
Remote motorized Pan and Tilt for easy angle adjustment
Built-in heater, ultra-low temperature start up to -40 °C (-40 °F)
Water and dust resistant (IP67) and vandal proof (IK10)
DarkFighter technology captures high quality color images even in dimly light environments

Available models:

DS-2CD6944G1-IHSUY(2.8mm)

Camera
Image Sensor
1/1.8″ Progressive Scan CMOS
Max. Resolution
4800 × 2688
Min. Illumination
Color: 0.002 Lux @ (F1.0, AGC ON),B/W: 0.0005 Lux @ (F1.0, AGC ON)
Shutter Time
1/25 s to 1/100,000 s
Day & Night
IR cut filter
Angle Adjustment
Pan: 0° to 340°,tilt: 0° to 90°

Lens
Lens Type
Fixed focal lens, 2.8 mm, four lenses
Focal Length & FOV
2.8 mm,
Single lens image: horizontal FOV 111.1°, vertical FOV 57.6°, diagonal FOV 138.5°,
Panorama Image: horizontal FOV 185°, vertical FOV 110°
Lens Mount
M16
Aperture
F1.0

Video
Main Stream
Panorama mode:
50 Hz: 50 fps (4800 × 2688)
60 Hz: 60 fps (4800 × 2688)
Original mode:
50 Hz: 50 fps (2688 × 1520, 2560 × 1440, 1920 × 1080, 1280 × 720)
60 Hz: 60 fps (2688 × 1520, 2560 × 1440, 1920 × 1080, 1280 × 720)
Sub-Stream
Panorama mode:
50 Hz: 25 fps (1920 × 1080)
60 Hz: 30 fps (1920 × 1080)
Original mode:
50 Hz: 25 fps (1280× 720)
60 Hz: 30 fps (1280× 720)
Video Compression
Main stream: H.265+/H.265/H.264+/H.264,
Sub-stream: H.265/H.264/MJPEG
Video Bit Rate
32 Kbps to 64 Mbps
H.264 Type
Baseline Profile,Main Profile,High Profile
H.265 Type
Main Profile
Scalable Video Coding (SVC)
H.264 and H.265 encoding
Region of Interest (ROI)
4 fixed regions for each stream

Audio
Audio Compression
G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
Audio Bit Rate
64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/PCM/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
Audio Sampling Rate
8 kHz/16 kHz/32 kHz/48 kHz
Environment Noise Filtering
Yes

Network
Protocols
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour
Simultaneous Live View
Up to 4 channels
API
ONVIF (Profile S, Profile G),ISAPI,SDK,ISUP
Security
Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP OVER HTTPS, Control Timeout Settings, Security Audit Log, TLS 1.2, TLS 1.3, TPM 2.0 (FIPS 140-2 level 2), AES128/256
User/Host
Up to 32 users
3 user levels: administrator, operator, and user
Network Storage
NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR)
Client
iVMS-4200
Web Browser
Plug-in required live view: IE 10, IE 11,
Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+, Safari 13+,
Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+

Image Settings
Rotate mode,saturation,brightness,contrast,sharpness,gain,white balance,AGC,adjustable by client software or web browser
Day/Night Switch
Day,Night,Auto,Schedule,Alarm Trigger
Wide Dynamic Range (WDR)
Digital WDR
SNR
≥ 52 dB
Image Enhancement
BLC,HLC,3D DNR,Distortion Correction,Defog
Privacy Mask
8 programmable polygon privacy masks
Picture Overlay
LOGO picture can be overlaid on video with 128 × 128 24 bit bmp format.

Interface
Ethernet Interface
1 RJ45 10 M/100 M/1000 M self-adaptive Ethernet port
On-Board Storage
Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 1024 GB
Built-in Microphone
2 built-in microphones
Audio
1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium,
1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
Alarm
2 inputs, 2 outputs (max. 12 VDC, 1 A)
RS-485
1 RS-485 (Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)
Reset Key
Yes
Power Output
12 VDC, max. 150 mA

Event
Basic Event
Motion detection,video tampering alarm,alarm input and output,video quality diagnosis,vibration detection,exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error, abnormal restart),audio exception detection
Linkage
Upload to FTP/NAS/memory card,notify surveillance center,send email,trigger alarm output,trigger recording,trigger capture,audible warning

General
Power
12 VDC ± 20%, 2.2 A, max. 26.4 W,
24 VAC ± 20%, 1.5 A, max. 24 W,three-core terminal block,
PoE: IEEE 802.3at, Class 4, max. 25 W
Material
Aluminum alloy & plastic
Dimension
Ø214.6 mm × 213 mm (Ø8.45″ × 8.39″)
Package Dimension
336 mm × 261 mm × 293 mm (13.2″ × 10.3″ × 11.5″)
Weight
Approx. 4.2 kg (9.25 lb.)
With Package Weight
Approx. 6.2 kg (13.67 lb.)
Storage Conditions
-40 °C to 60 °C (-40 °F to 140 °F). Humidity 95% or less (non-condensing)
Startup and Operating Conditions
-40 °C to 60 °C (-40 °F to 140 °F). Humidity 95% or less (non-condensing)
Language
33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
General Function
Heartbeat,mirror,password protection,flash log,password reset via email,pixel counter,one-key reset,anti-banding
Heater
Yes

Approval
EMC
CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021,
RCM: AS/NZS CISPR 32: 2015,
IC: ICES-003: Issue 7,
KC: KN32: 2015, KN35: 2015
Safety
CB: IEC 62368-1: 2014+A11,
CE-LVD: EN 62368-1: 2014/A11: 2017,
BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005,
LOA: IEC/EN 60950-1
Environment
CE-RoHS: 2011/65/EU,
WEEE: 2012/19/EU,
Reach: Regulation (EC) No 1907/2006
Protection
IP67: IEC 60529-2013,IK10: IEC 62262:2002
Anti-Corrosion Protection
NEMA 4X (NEMA 250-2018)
