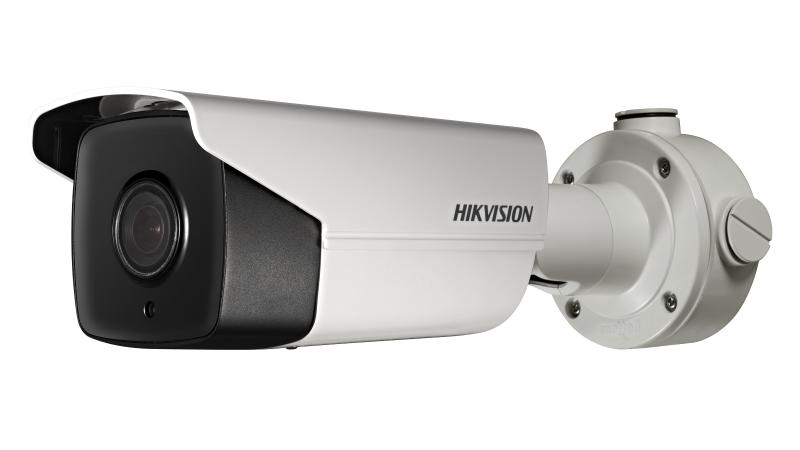

2MP Moto Varifocal Bullet Network Camera

Lens
Lens4.7 to 65.8 mm @F1.4
Auto-IrisDC drive
FocusAuto
FOV4.7 to 65.8 mm @F1.4, horizontal FOV 54.84° to 3.12°, vertical FOV 31.62° to 1.76°, diagonal FOV 62.08° to 3.58°
Lens MountIntegrated

Video
Max. Resolution1920 × 1080
Main Stream50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720),60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720)
Sub Stream50Hz: 25fps (640 × 480, 640 × 360, 320 × 240),60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
Third Stream50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 640 × 360, 352 × 288, 320 × 240),60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 640 × 360, 352 × 240, 320 × 240)
Video CompressionMain stream: H.265/H.264,Sub stream: H.265/H.264/MJPEG,Third stream: H.265/H.264
H.264 TypeBaseline Profile/Main Profile/High Profile
H.265 TypeMain Profile
Video Bit Rate32 Kbps – 16 Mbps
SVCH.264 and H.265 encoding

Smart Feature-Set
Behavior AnalysisLine crossing detection, intrusion detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection
Region of InterestSupport 4 fixed region for each stream, and dynamic face tracking

Image EnhancementBLC/HLC/3D DNR/Defog/EIS
Image SettingRotate Mode, Saturation, Brightness, Contrast, Sharpness, AGC, White Balance adjustable by client software or web browser
Target CroppingYes
Day/Night SwitchDay/Night/Auto/Schedule/Triggered by Alarm In
Picture OverlayLOGO picture can be overlaid on video with 128 × 128 24bit bmp format

Network
Network StorageSupport Micro SD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR
ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour
Simultaneous Live ViewUp to 20 channels
ClientiVMS-4200, iVMS-4500, iVMS-5200, Hik-connect
Web BrowserIE8+, Chrome31.0-44, Firefox30.0-51, Safari8.0+
Alarm TriggerMotion detection, video tampering alarm, network disconnected, IP address conflict, illegal login, HDD full, HDD error

Smart Feature-set
Exception DetectionScene change detection, defocus detection, audio exception detection
StatisticsCounting
Line Crossing DetectionCross a pre-defined virtual line, up to 4 pre-defined virtual lines supported
Intrusion DetectionEnter and loiter in a pre-defined virtual region, up to 4 pre-defined virtual regions supported
Region Entrance DetectionEnter a pre-defined virtual region from the outside place
Region Exit DetectionExit from a pre-defined virtual region
Object Removal DetectionObjects removed from the pre-defined region, such as the exhibits on display.
Unattended Baggage DetectionObjects left over in the pre-defined region such as the baggage, purse, dangerous materials
RecognitionFace detection

General
General FunctionOne-key reset, anti-flicker, three streams, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter
ResetYes
Startup and Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F), Humidity 95% or less (non-condensing)
Power Supply12 VDC ± 20%, PoE (802.3at, class 4), three-core terminal blocks
DimensionsCamera: 348.38 × 114.18 ×111.73 mm (13.72″ × 4.5″ × 4.4″),With package: ,386 × 156 × 155 mm (15.2″ × 6.1″ × 6.1″)
WeightCamera: 1740 g (3.8 lb.),With package: 2125 g (4.7 lb.)
Power Consumption and Current12 VDC ± 20%: Max. 12 W/1 A,PoE (802.3at, 42.5V-57V), 0.2 A to 0.3 A
Interface ProtectionIP67,TVS 4000V Lightning Protection, Surge Protection and Voltage Transient Protection
