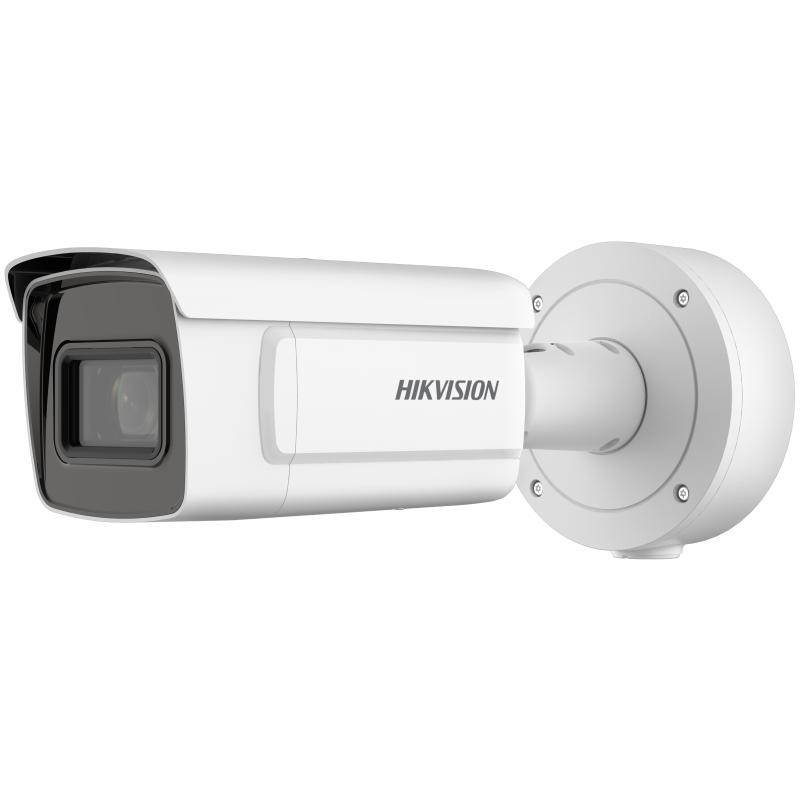

2MP AcuSense Moto Varifocal Bullet Camera

Available models:

DS-2CD3A26G2T-IZS(4.7-71mm)

Lens
Lens TypeVarifocal lens, motorized lens, 4.7 to 71 mm
Focal Length & FOV4.7 to 71 mm, horizontal FOV: 57.7° to 3.66°, vertical FOV: 33.2° to 2.75°, diagonal FOV: 65.2° to 4.58°
Lens MountIntegrated
Iris TypeDC iris
ApertureF1.6
Min. Focus DistanceW: 0.7 m (2.3 ft)
T: 20 m (65.6 ft)
Depth of Field2.6 m to ∞

DORI
DORIWide: D: 73.5 m (247 ft), O: 29.2 m (95.8 ft), R: 14.7 m (48.2 ft), I: 7.4 m (24.3 ft)
Tele: D: 1517.2 m (4977.7 ft), O: 602.1 m (1975 ft), R: 303.4 m (994.1 ft), I: 151.7 m (497.7 ft)

Video
Main Stream50 Hz: up to 50 fps (1920 × 1080, 1280 × 720)
60 Hz: up to 60 fps (1920 × 1080, 1280 × 720)
*High frame rate is supported under certain settings.
Sub-Stream50 Hz: 25 fps (640 × 480, 640 × 360)
60 Hz: 30 fps (640 × 480, 640 × 360)
Third Stream50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
*Third stream is supported under certain settings.
Fourth Stream50 Hz: 10 fps (1280 × 720, 640 × 480, 640 × 360)
60 Hz: 10 fps (1280 × 720, 640 × 480, 640 × 360)
*Fourth stream is supported under certain settings.
Video Bit Rate32 Kbps to 8 Mbps
Video CompressionMain stream: H.265+/H.265/H.264+/H.264
Sub-stream: H.265/H.264/MJPEG
Third stream: H.265/H.264
Fourth stream: H.265/H.264/MJPEG
*Third stream and fourth stream are supported under certain settings.
H.264 TypeBaseline Profile/Main Profile/High Profile
H.265 TypeMain Profile
Bit Rate ControlCBR/VBR
Scalable Video Coding (SVC)H.264 and H.265 encoding
Region of Interest (ROI)5 fixed regions for main stream and sub-stream
Target CroppingYes

Audio
Audio TypeMono sound
Environment Noise FilteringYes
Audio Sampling Rate8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
Audio CompressionG.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
Audio Bit Rate64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)

Network
Simultaneous Live ViewUp to 6 channels
APIOpen Network Video Interface (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK, ISUP
ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, ARP, SNMP, SRTP, WebSocket, WebSockets
User/HostUp to 32 users. 3 user levels: administrator, operator and user
SecurityPassword protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.1/1.2, host authentication (MAC address)
Network StorageNAS (NFS, SMB/CIFS), auto network replenishment (ANR)
Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
ClientiVMS-4200, Hik-Connect, Hik-Central
Web BrowserPlug-in required live view: IE 10, IE 11
Plug-in free live view: Chrome 57.0+, Firefox 52.0+
Local service: Chrome 57.0+, Firefox 52.0+

Wide Dynamic Range (WDR)120 dB
SNR≥ 52 dB
Image EnhancementBLC, HLC, 3D DNR
Privacy Mask8 programmable polygon privacy masks
Day/Night SwitchDay, Night, Auto, Schedule
Image Parameters SwitchYes
Image SettingsSaturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser

Interface
Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
On-Board StorageBuilt-in memory card slot, support microSD/microSDHC/microSDXC card, up to 256 GB
Audio1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium,
1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
Alarm2 inputs, 2 outputs (max. 24 VDC, 1 A)
Reset KeyYes

Event
Basic EventMotion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception
Smart EventLine crossing detection, intrusion detection, region entrance detection, region exiting detection,scene change detection,audio exception detection
LinkageUpload to FTP/NAS/memory card,notify surveillance center,send email,trigger recording,trigger capture,audible warning

General
Power12 VDC ± 25%, 0.9 A, max. 10.8 W,
24 VAC ± 20%, 0.75 A, max. 10.8 W,
PoE: 802.3af, Class 3, 36 V to 57 V, 0.36 A to 0.23 A, max. 12.9 W,
two-core terminal block
MaterialFront cover: metal, body: metal, bracket: metal
Dimension144 mm × 140 mm × 349.2 mm (5.7″ × 5.5″ × 13.7″)
Package Dimension405 mm × 190 mm × 180 mm (15.9″ × 7.5″ × 7.1″)
WeightApprox. 1835 g (4.1 lb.)
With Package WeightApprox. 2875 g (6.3 lb.)
Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Startup and Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Language33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
General FunctionHeartbeat,anti-banding,mirror,flash log,password reset via email,pixel counter

Approval
EMCFCC: 47 CFR Part 15, Subpart B,
CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014,
KC: KN32: 2015, KN35: 2015
SafetyUL: UL 62368-1,
CB: IEC 62368-1: 2014+A11,
CE-LVD: EN 62368-1: 2014/A11: 2017,
BIS: IS 13252 (Part 1): 2010/ IEC 60950-1: 2005
EnvironmentCE-RoHS: 2011/65/EU
ProtectionIP67: IEC 60529-2013,IK10: IEC 62262:2002
