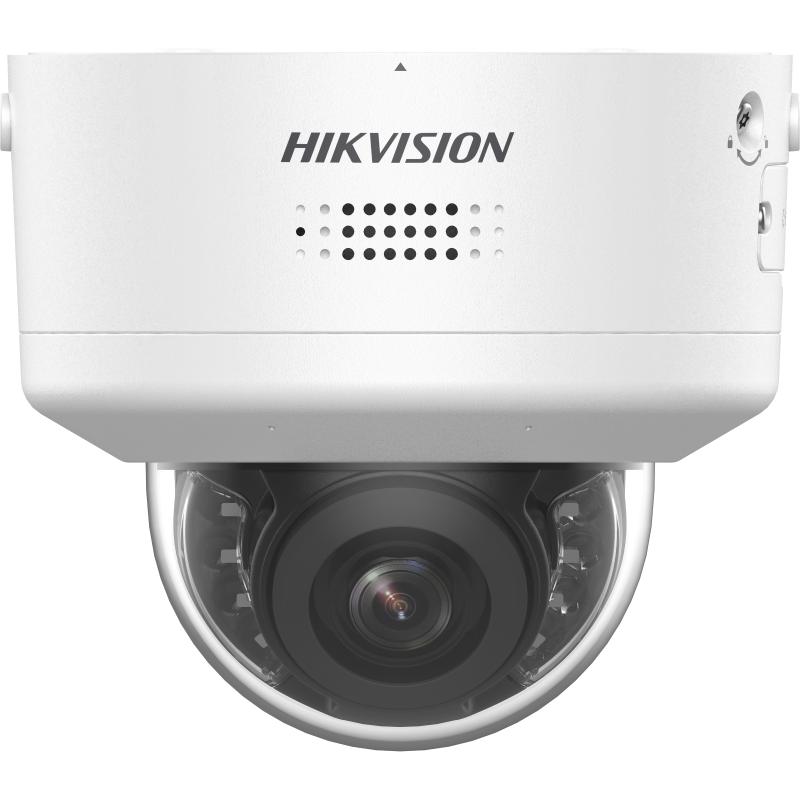

6 MP Smart hybrid light with Darkfighter S Strobe Light and Audible Warning Motorized Varifocal Dome Network Camera

Motorized Pan, Tilt, Rotate, Zoom for easy installation and monitoring
24/7 colorful imaging via ColorVu technology
IR light & White light & Smart Hybrid Light modes
Clear imaging against strong back light due to 130 dB WDR technology
Supports Hikvision Embedded Open Platform (HEOP) and importing third party applications
Supports 1.5 Tops computing power, 40 MB system memory, 350 MB smart RAM, and 2 GB eMMC storage for sharing resources
Clear two-way audio with dual-array mic
Active strobe light and audio alarm to warn intruders off (-SL)
Water and dust resistant (IP66) and vandal resistant (IK10)
Audio and alarm interface available

Available models:

DS-2CD3766G2HT-LIZSU/SLPTRZ(27135)eFOSTD

DS-2CD3766G2HT-LIZSU/SL(PTRZ)(27135)OSTD

Camera
Image Sensor1/1.8″ Progressive Scan CMOS
Max. Resolution3200 × 1800
Min. IlluminationColor: 0.0028 Lux @ (F1.2, AGC ON),0 Lux with light
Shutter Time1/3 s to 1/100,000 s
Day & NightIR cut filter
Angle AdjustmentRemote adjustment (Max. 1000 cycles)
Pan: -175° to 175°,tilt: 0° to 85°,rotate: 0° to 350°

Lens
Lens TypeVarifocal lens, motorized lens, 2.7 to 13.5 mm
Focal Length & FOV2.7 to 13.5 mm, horizontal FOV 112.3° to 41.2°, vertical FOV 58.1° to 23.1°, diagonal FOV 137.4° to 47.3°
Lens MountIntegrated
FocusAuto,Semi-auto,Manual
Iris TypeDC iris
ApertureF1.2
Depth of Field1 m to ∞

DORI
DORIWide: D: 74.3 m, O: 29.5 m, R: 14.9 m, I: 7.4 m
Tele: D: 183.3 m, O: 72.8 m, R: 36.7 m, I: 18.3 m

Video
Main Stream50 Hz:
25 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
60 Hz:
30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
Sub-Stream50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)
60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
Third Stream50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
*Third stream is supported under certain settings.
Fourth Stream50 Hz: 10 fps (1280 × 720, 640 × 480, 640 × 360)
60 Hz: 10 fps (1280 × 720, 640 × 480, 640 × 360)
*Fourth stream is supported under certain settings.
Video CompressionMain stream: H.265/H.264/H.264+/H.265+,
Sub-stream: H.265/H.264/MJPEG,
Third stream: H.265/H.264,
Fourth stream: H.265/H.264/MJPEG,
*Third stream and fourth stream are supported under certain settings.
Video Bit Rate32 Kbps to 16 Mbps
H.264 TypeBaseline Profile,Main Profile,High Profile
H.265 TypeMain Profile
Bit Rate ControlCBR,VBR
Scalable Video Coding (SVC)H.264 and H.265 encoding
Region of Interest (ROI)5 fixed regions for main stream and sub-stream
Target CroppingYes

Audio
Audio CompressionG.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
Audio Bit Rate64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
Audio Sampling Rate8 kHz/16 kHz/32 kHz/48 kHz
Environment Noise FilteringYes

Network
ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SFTP, ARP, SNMP, WebSocket, WebSockets, SRTP
Simultaneous Live ViewUp to 6 channels
APIONVIF (Profile S, Profile G, Profile T),ISAPI,SDK,ISUP
User/HostUp to 32 users
3 user levels: administrator, operator, and user
SecurityPassword protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.1/1.2/1.3, host authentication (MAC address)
Network StorageNAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR),
Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
ClientiVMS-4200,Hik-Connect,Hik-Central
Web BrowserPlug-in required live view: IE 11,
Plug-in free live view: Chrome 80+, Firefox 89+, Edge 89+, Safari 13+,
Local service: Chrome 80+, Firefox 89+, Edge 89+, Safari 13+

Image Parameters SwitchYes
Image SettingsRotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser
Day/Night SwitchDay,Night,Auto,Schedule
Wide Dynamic Range (WDR)130 dB
Image EnhancementBLC,HLC,3D DNR,Defog
SNR≥ 52 dB
Privacy Mask4 programmable polygon privacy masks

Interface
Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
On-Board StorageBuilt-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
Built-in MicrophoneYes, 2 built-in microphones
Built-in Speaker1 built-in speaker,Max. power consumption: 2 W, max. sound pressure level: 10 cm: 97 dB.
Audio1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium,
1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
Alarm2 inputs, 2 outputs (max. 24 VDC/24 VAC, 1 A)
Reset KeyYes
Power Output12 VDC, max. 100 mA

Event
Basic EventMotion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception
Smart Eventscene change detection,audio exception detection,defocus detection
LinkageUpload to FTP/NAS/memory card,notify surveillance center,send email,trigger recording,trigger capture,trigger alarm output,audible warning

Deep Learning Function
Face CaptureYes
People CountingYes
Perimeter ProtectionLine crossing, intrusion, region entrance, region exiting
Support alarm triggering by specified target types (human and vehicle)

General
Power12 VDC ± 25%, 1.35 A, max. 16 W,Ø5.5 mm coaxial power plug,reverse polarity protection,
PoE: IEEE 802.3at, Class 4, max. 18 W
DimensionØ155 mm × 140.4 mm (Ø6.10″ × 5.53″)
Package Dimension244 mm × 174 mm × 173 mm (9.6″ × 6.9″ × 6.8″)
WeightApprox. 835 g (1.8 lb.)
With Package WeightApprox. 1285 g (2.8 lb.)
General FunctionHeartbeat,anti-banding,mirror,flash log,password reset via email,pixel counter
Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Startup and Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Language33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
Flashing LightWhite Light

Approval
EMCCE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014,
RCM: AS/NZS CISPR 32: 2015,
IC: ICES-003: Issue 7
SafetyUL: UL 62368-1,
CB: IEC 62368-1: 2014+A11,
CE-LVD: EN 62368-1: 2014/A11: 2017
EnvironmentCE-RoHS: 2011/65/EU,
WEEE: 2012/19/EU,
Reach: Regulation (EC) No 1907/2006
ProtectionIK10: IEC 62262:2002,IP66: IEC 60529-2013
